630W7W Series
Manufacturer: EDAC Inc.
Beta
⌘K

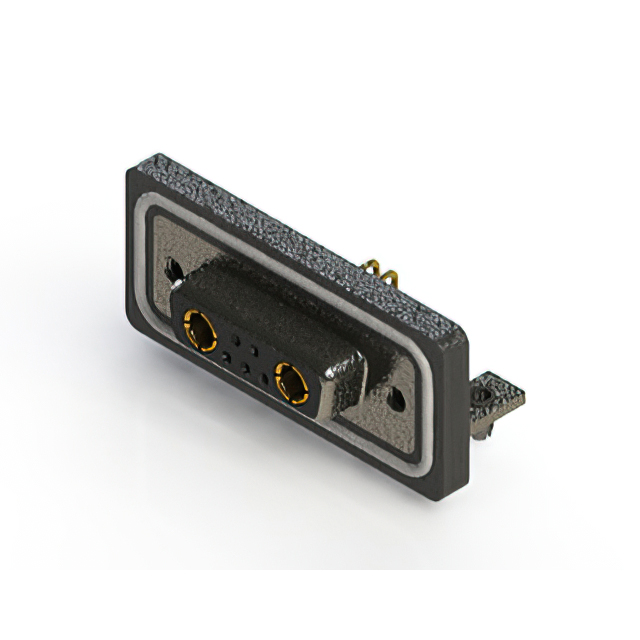

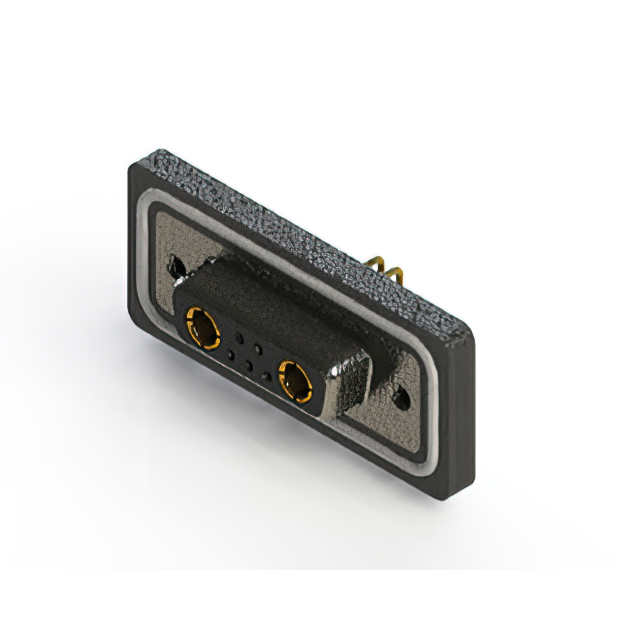

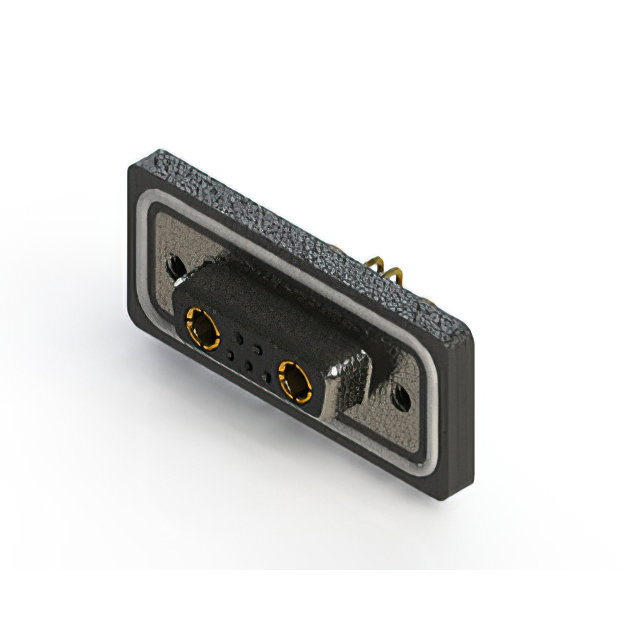

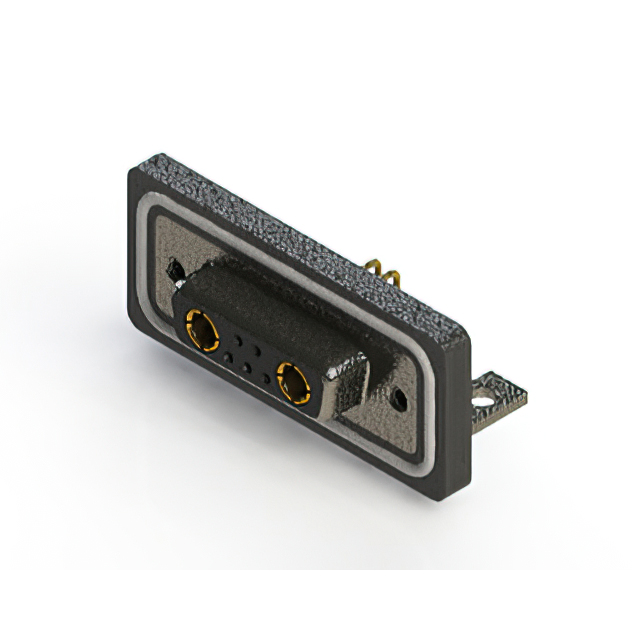

CONN D-SUB RCPT 7POS R/A SLDR
| Part | Dielectric Material | Voltage Rating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Termination | Flange Feature | Ingress Protection | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Shell Material, Finish | Features | Connector Type | Material Flammability Rating | Contact Finish | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | 5 A 40 A | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Mounting Brackets Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Flash | Right Angle Through Hole | 2 | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Panel Mount Right Angle Through Hole | 2 | 0.38 µm | 15 µin | 4-40 | 20A 5A | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Panel Mount Right Angle Through Hole | 2 | 0.38 µm | 15 µin | 10A 5A | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Flash | Panel Mount Right Angle Through Hole | 2 | 20A 5A | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Mounting Brackets Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Right Angle Through Hole | 2 | 0.127 µm | 5 µin | 20A 5A | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | 5 A 40 A | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Panel Mount Right Angle Through Hole | 2 | 0.127 µm | 5 µin | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell (M3) | IP67 - Dust Tight Waterproof | 5 A 40 A | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Panel Mount Right Angle Through Hole | 2 | 0.127 µm | 5 µin | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell | IP67 - Dust Tight Waterproof | 5 A 40 A | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Mounting Brackets Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Flash | Panel Mount Right Angle Through Hole | 2 | 4-40 | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell | IP67 - Dust Tight Waterproof | 5 A 30 A | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Flash | Panel Mount Right Angle Through Hole | 2 | 4-40 | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 125 VDC | Black | -55 C | 125 °C | Copper Alloy | 7 | 5 | 2 | Solder | Housing/Shell | IP67 - Dust Tight Waterproof | Signal and Power | A DA | 2 | 7W2 | Combo D-Sub | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Receptacle Female Sockets | UL94 V-0 | Gold | Panel Mount Right Angle Through Hole | 2 | 0.38 µm | 15 µin | 4-40 | 20A 5A |
