1734260 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER SMD 13POS 1.25MM

Part	Number of Positions Loaded	Number of Positions	Pitch - Mating	Pitch - Mating	Shrouding	Connector Type	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Height	Insulation Height	Features	Number of Rows	Contact Shape	Insulation Material	Termination	Voltage Rating	Material Flammability Rating	Contact Type	Style	Mounting Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 1-1734260-3	All	13	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	150 Áin	3.81 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C
TE Connectivity Raychem Cable Protection 3-1734260-3	All		1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold
TE Connectivity Raychem Cable Protection 1734260-7	All	7	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	150 Áin	3.81 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C
TE Connectivity Raychem Cable Protection 4-1734260-0	All	10	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold
TE Connectivity Raychem Cable Protection 4-1734260-3	All	13	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold
TE Connectivity Raychem Cable Protection 3-1734260-7	All	7	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold
TE Connectivity Raychem Cable Protection 3-1734260-4	All	4	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold

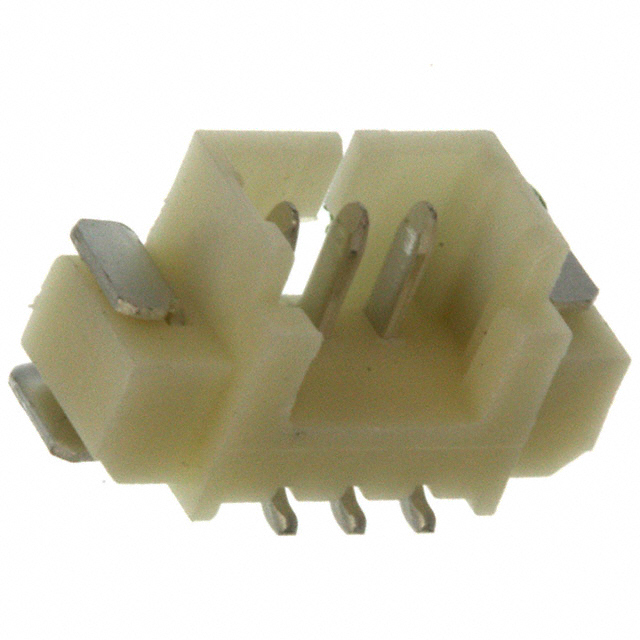

TE Connectivity Raychem Cable Protection 1734260-3	All		1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	150 Áin	3.81 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C
TE Connectivity Raychem Cable Protection 4-1734260-1	All	11	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold
TE Connectivity Raychem Cable Protection 3-1734260-9	All	9	1.25 mm	0.049 in	Shrouded - 3 Wall	Header	Natural	Phosphor Bronze	30 Áin	0.76 Ám	Automotive General Purpose Industrial Medical	0.187 in	4.75 mm	Solder Retention	1	Square	Thermoplastic	Solder	125 VDC	UL94 V-0	Male Pin	Board to Cable/Wire	Surface Mount	Tin	-25 °C	85 °C	Gold
