PPTC132 Series

Catalog

CONN HDR 26POS 0.1 TIN PCB

Part	Insulation Material	Contact Material	Contact Shape	Material Flammability Rating	Number of Rows [custom]	Voltage Rating	Insulation Height	Insulation Height	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Termination	Number of Positions	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

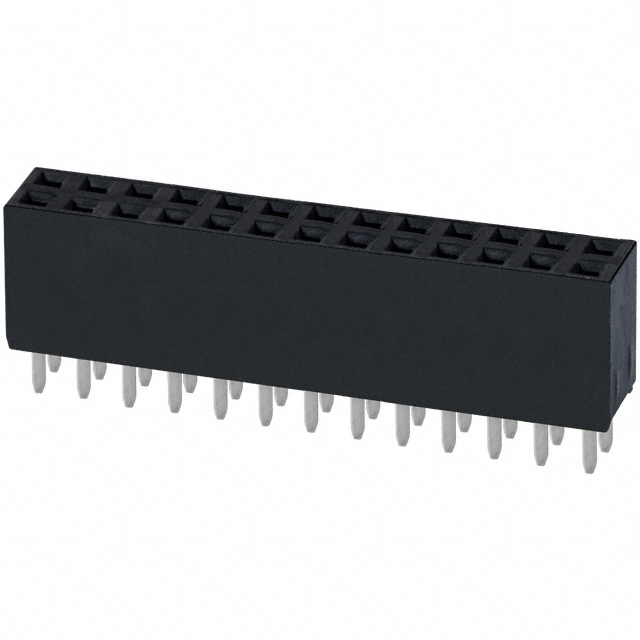

Sullins Connector Solutions PPTC132LFBN	Polyester	Phosphor Bronze	Square	UL94 V-0	2	250 V	0.335 "	8.51 mm	3 A	0.1 in	2.54 mm	All	-40 C	105 ░C	Tin	Through Hole	0.126 "	3.2 mm	Header	0.1 "	2.54 mm	Female Socket	Push-Pull	Solder	26	Black

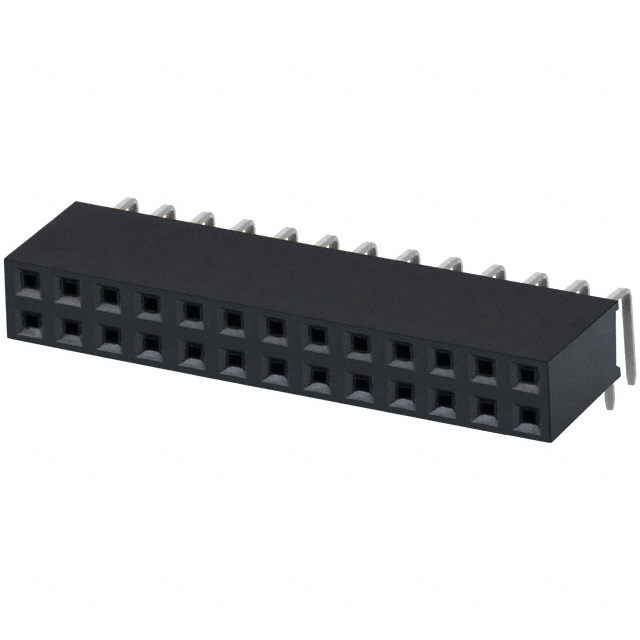

Sullins Connector Solutions PPTC132LJBN	Polyester	Phosphor Bronze	Square	UL94 V-0	2	250 V			3 A	0.1 in	2.54 mm	All	-40 C	105 ░C	Tin	Right Angle Through Hole			Header	0.1 "	2.54 mm	Female Socket	Push-Pull	Solder	26	Black	0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPTC132LJBN-RC	Polyester	Phosphor Bronze	Square	UL94 V-0	2	250 V			3 A	0.1 in	2.54 mm	All	-40 C	105 ░C	Tin	Right Angle Through Hole			Header	0.1 "	2.54 mm	Female Socket	Push-Pull	Solder	26	Black	0.2 in	5.08 mm	0.124 in	3.15 mm
