178-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K

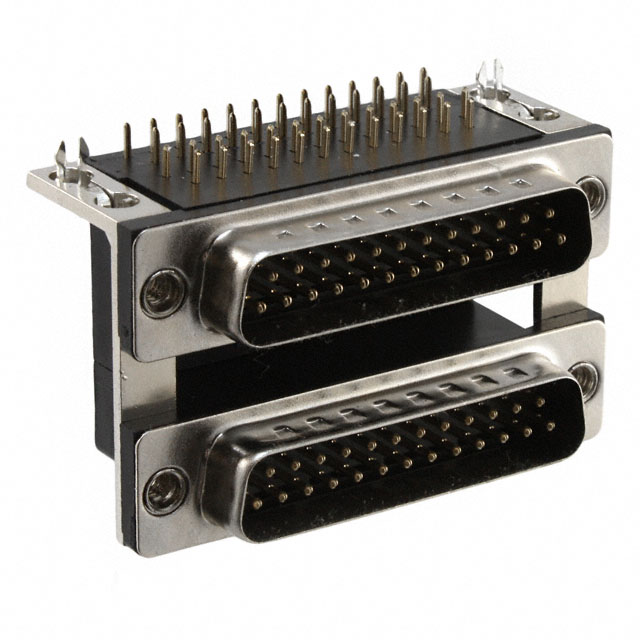

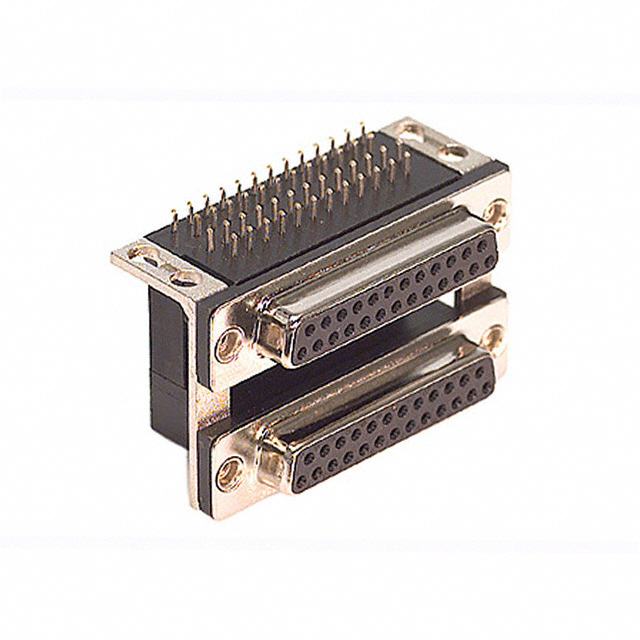

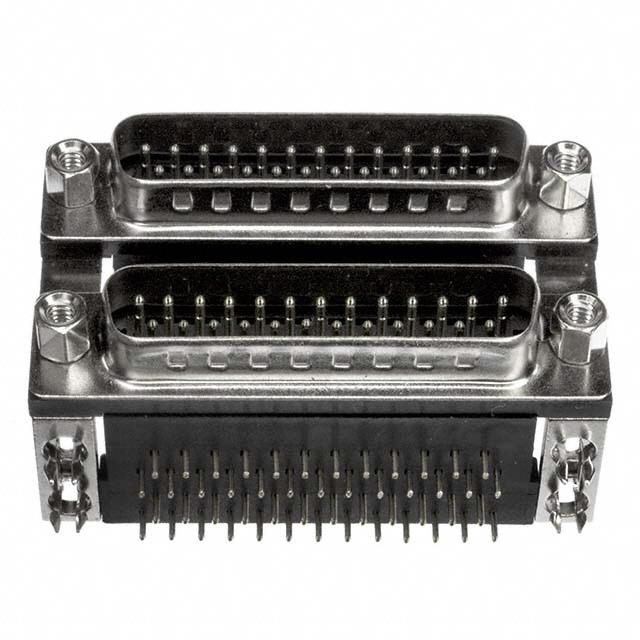

STACKED D SUB CONNECTOR, 178 SERIES, DB, RECEPTACLE, 25 CONTACTS, DB, PLUG
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Form | Dielectric Material | Number of Positions | Shell Material, Finish | Shell Size, Connector Layout | Contact Finish | Connector Type | Backset Spacing | Backset Spacing | Connector Style | Number of Rows [custom] | Termination | Flange Feature | Flange Feature | Current Rating (Amps) | Features | Mounting Type | Contact Type | Material Flammability Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | Housing/Shell | 4-40 | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash |
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Polyester Glass Filled | 25 | 3 (DB B) | Gold | Plug Male Pins | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | 4-40 Mating Side Female Screwlock | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash | ||
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | 4-40 Mating Side Female Screwlock | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash | |
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | 4-40 Mating Side Female Screwlock | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash | |
 NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | Housing/Shell | 4-40 | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash |
NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | Housing/Shell | 4-40 | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash |
NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | Housing/Shell | 4-40 | 5 A | Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash |
NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | 4-40 Mating Side Female Screwlock | 5 A | Board Lock Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash | |
NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | Housing/Shell | 4-40 | 5 A | Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash |
NorComp Inc. | Brass | -55 C | 105 ░C | Black | Stamped | Nylon 9T Polyamide (PA9T) | 25 | Nickel Plated Steel | 3 (DB B) | Gold | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | D-Sub - Stacked | 2 | Solder | 4-40 Mating Side Female Screwlock | 5 A | Board Lock Grounding Indents Shielded | Panel Mount Right Angle Through Hole | Signal | UL94 V-0 | Flash |
