HLMP-6800 Series
Manufacturer: Broadcom Limited
Beta
⌘K

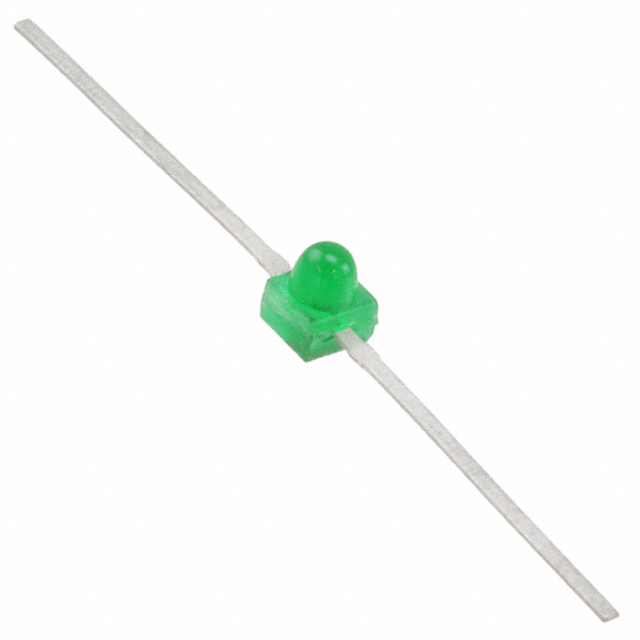

LED GREEN DIFFUSED GULL WING SMD
| Part | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Mounting Type | Configuration | Lens Color | Lens Style | Supplier Device Package | Viewing Angle | Current - Test | Millicandela Rating | Package / Case | Wavelength - Dominant | Height (Max) [z] | Lens Transparency | Color | Lens Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 2.08 mm | 2.21 mm | 565 nm | 5 V | Surface Mount | Standard | Green | Round with Domed Top | Gull Wing | 90 ° | 10 mA | 5 mcd | 2-SMD Gull Wing | 569 nm | 2.92 mm | Diffused | Green | 1.78 mm |
 Broadcom Limited | 2.08 mm | 2.21 mm | 565 nm | 5 V | Axial Through Hole | Standard | Green | Round with Domed Top | Axial | 90 ° | 10 mA | 5 mcd | Axial Flat Leads | 569 nm | 2.92 mm | Diffused | Green | 1.78 mm |
