SBR-70 Series

Catalog

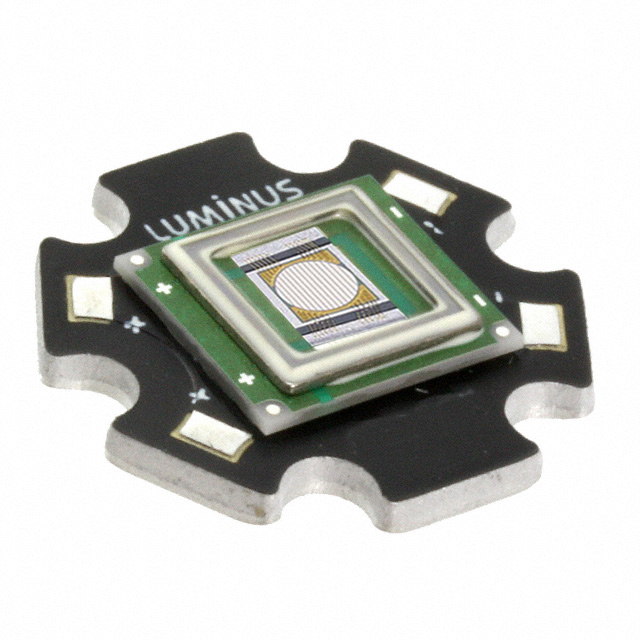

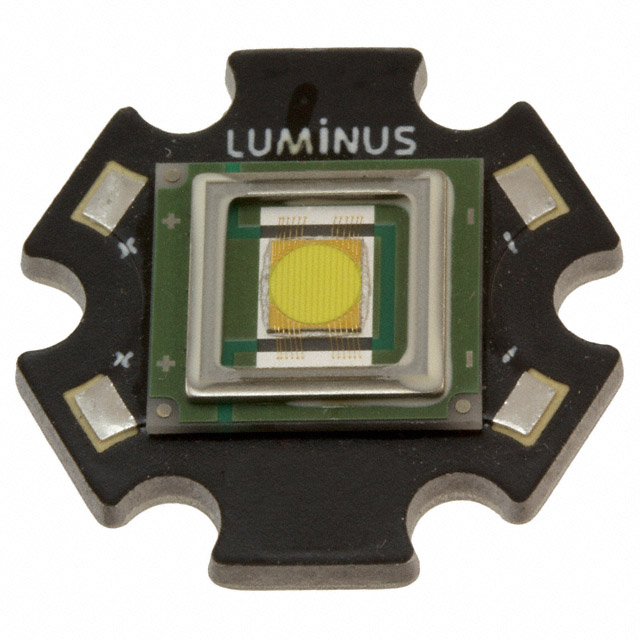

LED MOD SBR-70 BLUE STARBOARD

Part	Configuration	Wavelength	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Type	Color	Size / Dimension [diameter]	Lumens/Watt @ Current - Test	Type	Light Emitting Surface (LES) [diameter]	Temperature - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Height [z]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	CRI (Color Rendering Index)	CCT (K) [Max]	CCT (K) [Min]
Luminus Devices Inc. SBR-70-B-R75-KF301	Starboard	445 nm	3.8 V	10.5 A	Flat	Blue	19.9 mm	5 lm/W	LED Module	3 mm	25 °C	10.5 A	200 lm	3.44 mm
Luminus Devices Inc. SBR-70-B-R75-KG300	Starboard	445 nm	3.8 V	10.5 A	Flat	Blue	19.9 mm	5 lm/W	LED Module	3 mm	25 °C	10.5 A	200 lm	3.44 mm
Luminus Devices Inc. SBR-70-G-R75-JK200	Starboard	530 nm	4.5 V	10.5 A	Flat	Green	19.9 mm	44 lm/W	LED Module	3 mm	25 °C	14 A	2100 lm	3.44 mm
Luminus Devices Inc. SBR-70-G-R75-JK201	Starboard	530 nm	4.5 V	10.5 A	Flat	Green	19.9 mm	44 lm/W	LED Module	3 mm	25 °C	14 A	2100 lm	3.44 mm
Luminus Devices Inc. SBR-70-WCS-R75-NB121	Starboard		3.7 V	10.5 A	Flat	Cool White	19.9 mm	46 lm/W	LED Module		25 °C	10.5 A		3.44 mm	1830 lm	1710 lm	11 mm	10 mm	75	8500 K	6020 K
