M22-714 Series

Catalog

CONN, RCPT, 24POS, 2ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Shape	Contact Material	Insulation Material	Applications	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Fastening Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Mated Stacking Heights	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Termination	Number of Rows [custom]	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Contact Type	Voltage Rating	Contact Finish - Mating
Harwin Inc. M22-7141242	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	24	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold

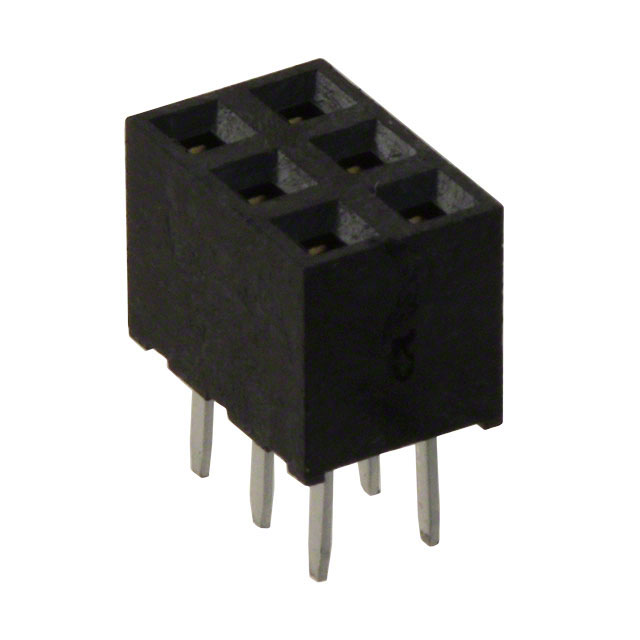

Harwin Inc. M22-7140342	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	6	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold
Harwin Inc. M22-7141642	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull		2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold
Harwin Inc. M22-7141342	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	26	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold

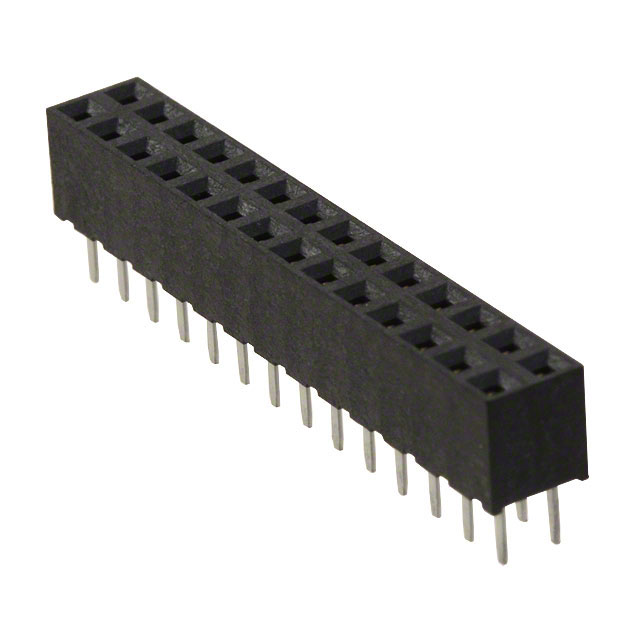

Harwin Inc. M22-7141442	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	28	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold
Harwin Inc. M22-7141842	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	36	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold

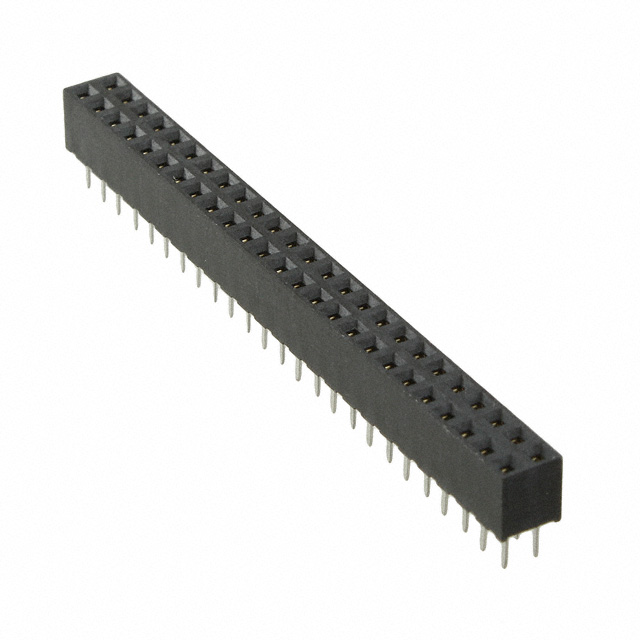

Harwin Inc. M22-7142542	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	50	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold

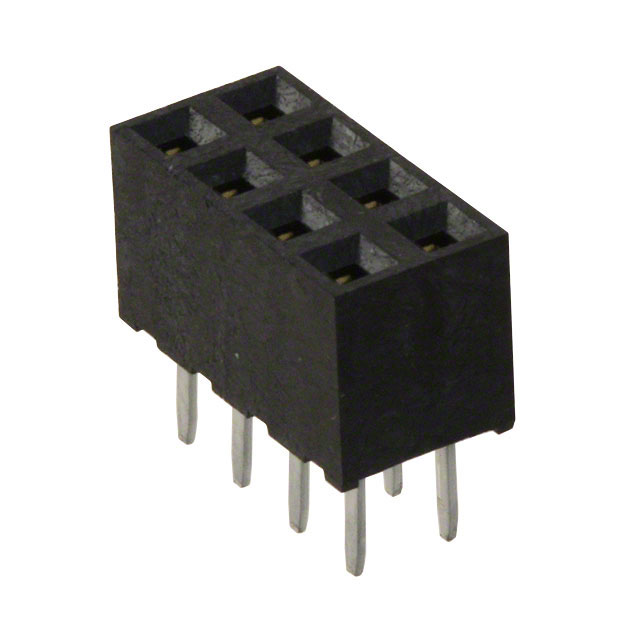

Harwin Inc. M22-7140442	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	8	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold

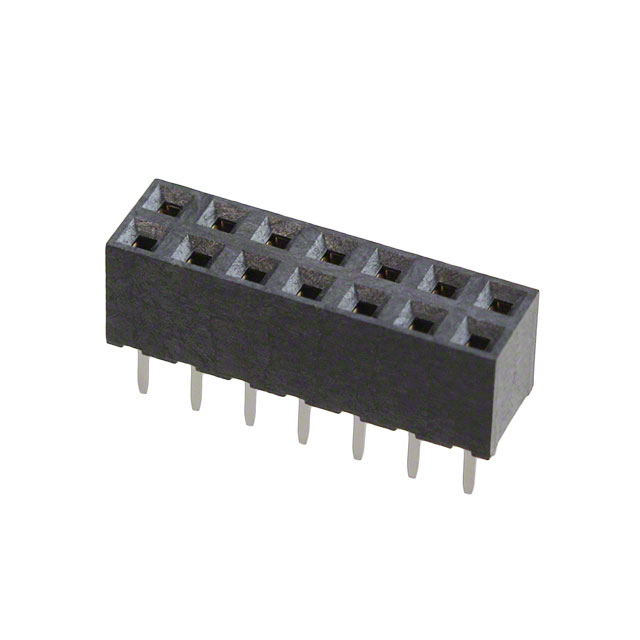

Harwin Inc. M22-7140742	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	14	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold
Harwin Inc. M22-7140642	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Receptacle	2.4 mm	0.094 in	4.4 mm	0.173 in	Push-Pull	12	2 mm	0.079 in	Black	5.8 mm 6.55 mm 6.8 mm	Tin	UL94 V-0	0.079 "	2 mm	-40 C	105 ░C	Board to Board Cable	Solder	2	Through Hole	All	2 A	Female Socket	500 VAC	Gold
