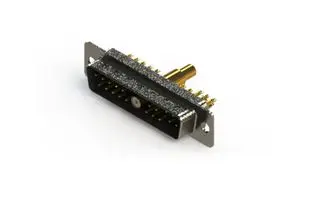

627-21W Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB MIXED CONTACT CONNECTORS VERTICAL COMBO DSUB
| Part | Dielectric Material | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Connector Type | Termination | Contact Finish | Contact Finish Thickness | Number of Rows [custom] | Shell Material, Finish | Features | Shell Size, Connector Layout | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Flange Feature | Connector Style | Shell Size, Connector Layout | Flange Feature [custom] | Flange Feature [custom] | Number of Positions [x] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 21 | Plug Male Pins | Solder | Gold | Flash | 2 | Nickel Plated Steel | Board Lock Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Through Hole | 5 A 30 A | Board Side (4-40) | Combo D-Sub | |||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Coax Signal | 21 | Plug Male Pins | Gold | Flash | 2 | Grounding Indents Shielded | 21W1 B DB | UL94 V-0 | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Combo D-Sub | 3 | |||||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 21 | Plug Male Pins | Solder | Gold | Flash | 2 | Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Panel Mount Through Hole | 5 A 30 A | Combo D-Sub | 4-40 | 4-40 | |||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Coax Signal | Plug Male Pins | Solder | Gold | Flash | 2 | Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Panel Mount Through Hole | Combo D-Sub | 4-40 | 4-40 | 17 | 4 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 21 | Plug Male Pins | Solder | Gold | Flash | 2 | Nickel Plated Steel | Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Through Hole | 5 A 30 A | Housing/Shell (Unthreaded) | Combo D-Sub | |||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Coax Signal | Plug Male Pins | Solder | Gold | Flash | 2 | Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Panel Mount Through Hole | Board Side (4-40) | Combo D-Sub | 17 | 4 | ||||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Coax Signal | Plug Male Pins | Solder | Gold | 2 | Nickel Plated Steel | Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Panel Mount Through Hole | Board Side (4-40) | Combo D-Sub | 17 | 4 | 30 Áin | 0.76 Ám | ||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 21 | Plug Male Pins | Solder | Gold | 2 | Nickel Plated Steel | Board Lock Grounding Indents Shielded | 21W1 B DB | UL94 V-0 | Panel Mount Through Hole | 5 A 40 A | M3 | Combo D-Sub | 3 | 30 Áin | 0.76 Ám | |||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 21 | Plug Male Pins | Solder | Gold | Flash | 2 | Nickel Plated Steel | Board Lock Grounding Indents Shielded | 4 (DC C) - 21WA4 | UL94 V-0 | Panel Mount Through Hole | 5 A 30 A | 4-40 | Combo D-Sub | |||||||
EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Coax Signal | 21 | Plug Male Pins | Solder | Gold | Flash | 2 | Nickel Plated Steel | Grounding Indents Shielded | 21W1 B DB | UL94 V-0 | Panel Mount Through Hole | Combo D-Sub | 3 | 4-40 | 4-40 |
