E5AN-HA Series

Manufacturer: Omron Automation and Safety

Catalog

CONTROL TEMP/PROC RELAY OUT 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Output Type	Mounting Type	Termination Style	Control Method	Number of Characters Per Row	Type	Communications	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply	Ingress Protection	Features	Input Range [Min]	Input Range [Max]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Omron Automation and Safety E5AN-HAA2HBMD-W-500 AC/DC24	55 °C	-10 °C	0.683 lb	309.8 g	Option Cards Available Relay (2)	Panel Mount	Screw Terminal	On/Off Proportional (PID)	4 5	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Option Cards Available	0.268 in 0.374 in 0.622 in	6.8 mm 9.5 mm 15.8 mm	92 mm	92 mm	24 VAC	IP66 - Dust Tight Water Resistant	Event Input Heater Fault Detection Option Cards Available	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Backlight Tri Color Characters
Omron Automation and Safety E5AN-HAA2HHBFM-W-500 AC100-240	55 °C	-10 °C	0.683 lb	309.8 g	Analog Option Cards Available Relay (2)	Panel Mount	Screw Terminal	On/Off Proportional (PID)	4 5	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Option Cards Available	0.268 in 0.374 in 0.622 in	6.8 mm 9.5 mm 15.8 mm	92 mm	92 mm		IP66 - Dust Tight Water Resistant	Event Input Heater Fault Detection Option Cards Available	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Backlight Tri Color Characters	240 VAC	100 VAC

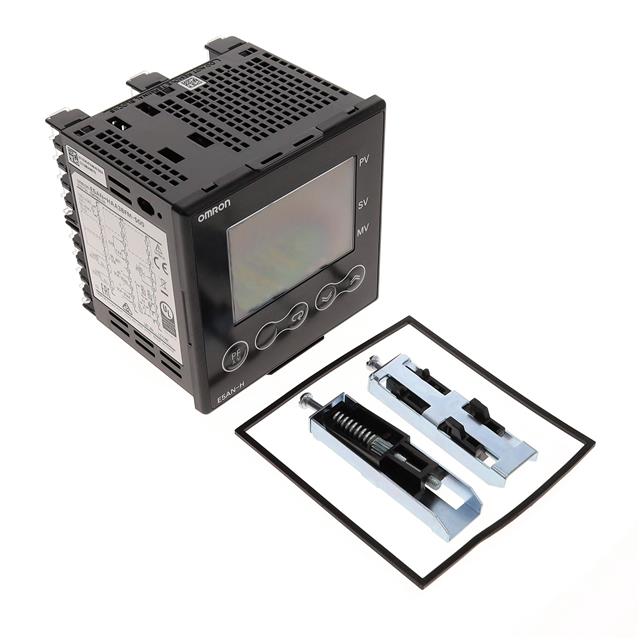

Omron Automation and Safety E5AN-HAA3BFM-500 AC100-240	55 °C	-10 °C	0.683 lb	309.8 g	Analog Option Cards Available Relay (3)	Panel Mount	Screw Terminal	On/Off Proportional (PID)	4 5	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Option Cards Available	0.268 in 0.374 in 0.622 in	6.8 mm 9.5 mm 15.8 mm	92 mm	92 mm		IP66 - Dust Tight Water Resistant	Event Input Option Cards Available	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Backlight Tri Color Characters	240 VAC	100 VAC
Omron Automation and Safety E5AN-HAA2HHBFMD-500 AC/DC24	55 °C	-10 °C	0.683 lb	309.8 g	Analog Option Cards Available Relay (2)	Panel Mount	Screw Terminal	On/Off Proportional (PID)	4 5	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Option Cards Available	0.268 in 0.374 in 0.622 in	6.8 mm 9.5 mm 15.8 mm	92 mm	92 mm	24 VAC	IP66 - Dust Tight Water Resistant	Event Input Heater Fault Detection Option Cards Available	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Backlight Tri Color Characters
Omron Automation and Safety E5AN-HAA2HBM-500 AC100-240	55 °C	-10 °C	0.683 lb	309.8 g	Option Cards Available Relay (2)	Panel Mount	Screw Terminal	On/Off Proportional (PID)	4 5	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Option Cards Available	0.268 in 0.374 in 0.622 in	6.8 mm 9.5 mm 15.8 mm	92 mm	92 mm		IP66 - Dust Tight Water Resistant	Event Input Heater Fault Detection Option Cards Available	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Backlight Tri Color Characters	240 VAC	100 VAC
Omron Automation and Safety E5AN-HAA2HBMD-500 AC/DC24	55 °C	-10 °C	0.683 lb	309.8 g	Option Cards Available Relay (2)	Panel Mount	Screw Terminal	On/Off Proportional (PID)	4 5	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Option Cards Available	0.268 in 0.374 in 0.622 in	6.8 mm 9.5 mm 15.8 mm	92 mm	92 mm	24 VAC	IP66 - Dust Tight Water Resistant	Event Input Heater Fault Detection Option Cards Available	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Backlight Tri Color Characters
