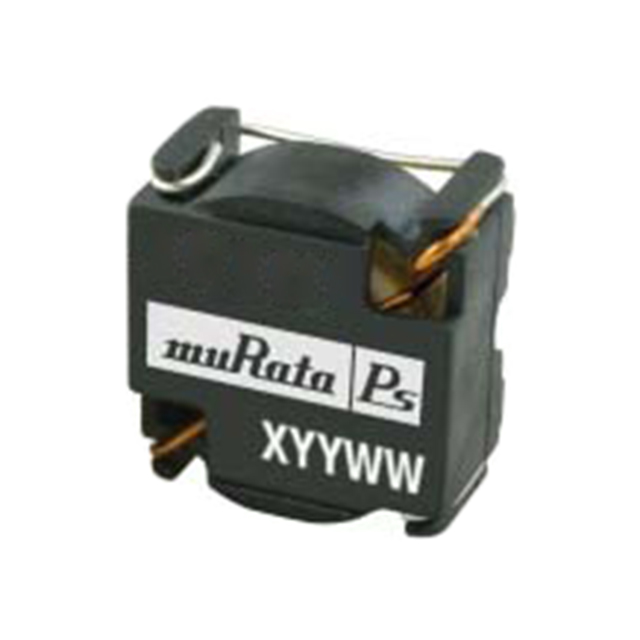

40 Series

Catalog

FIXED IND 47UH 1.42A 79MOHM SMD

Part	Shielding	Mounting Type	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Type	Inductance Frequency - Test	Package / Case	Current Rating (Amps)	DC Resistance (DCR) [Max]
Murata Electronics 40470C	Unshielded	Surface Mount	47 µH	85 °C	-40 C	8.76 mm	0.345 "	Toroidal	10 kHz	Nonstandard	1.42 A	79 mOhm
Murata Electronics 40100C	Unshielded	Surface Mount	10 µH	85 °C	-40 C	8.76 mm	0.345 "	Toroidal	10 kHz	Nonstandard	3 A	23 mOhm
Murata Electronics 40151C	Unshielded	Surface Mount	150 µH	85 °C	-40 C	8.76 mm	0.345 "	Toroidal	10 kHz	Nonstandard	760 mA
Murata Electronics 40101C	Unshielded	Surface Mount	100 µH	85 °C	-40 C	8.76 mm	0.345 "	Toroidal	10 kHz	Nonstandard	940 mA	177 mOhm
Murata Electronics 40331C	Unshielded	Surface Mount	330 µH	85 °C	-40 C	8.76 mm	0.345 "	Toroidal	10 kHz	Nonstandard	0.54 A	610 mOhm
Murata Electronics 40221C	Unshielded	Surface Mount	220 µH	85 °C	-40 C	8.76 mm	0.345 "	Toroidal	10 kHz	Nonstandard	0.67 A	405 mOhm
