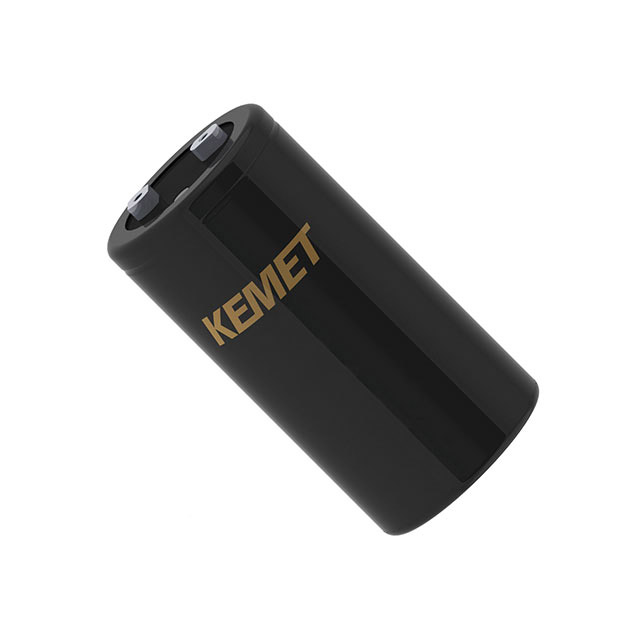

ALS70P Series

Manufacturer: KEMET

Catalog

CAP ALUM 9100UF 20% 400V SCREW

Part	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Impedance	Tolerance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Polarization	Ripple Current @ High Frequency	Package / Case	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALS70P912NP400	9100 µF	85 °C	-40 C	148 mm	5.827 in	400 V	16 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	26.1 A	Radial Can - Screw Terminals	24 mOhm	18.8 A	Chassis Mount
KEMET ALS70P273NT250	27 mF	85 °C	-40 C			250 V	12 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	30.5 A	Radial Can - Screw Terminals	15 mOhm	25.1 A	Chassis Mount
KEMET ALS70P133NS400	13000 µF	85 °C	-40 C			400 V	12 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	29.8 A	Radial Can - Screw Terminals	18 mOhm	22.1 A	Chassis Mount	7.717 in	196 mm
KEMET ALS70P133NF250	13000 µF	85 °C	-40 C			250 V	19 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	23.2 A	Radial Can - Screw Terminals	26 mOhm	17.9 A	Chassis Mount	4.213 in	107 mm
KEMET ALS70P564NT040	560000 µF	85 °C	-40 C			40 V	8 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	35.3 A	Radial Can - Screw Terminals	6 mOhm	34.5 A	Chassis Mount
KEMET ALS70P163NP250	16000 µF	85 °C	-40 C	148 mm	5.827 in	250 V	17 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar		Radial Can - Screw Terminals	22 mOhm	20.5 A	Chassis Mount
KEMET ALS70P203NW250	20000 µF	85 °C	-40 C	171 mm	6.732 in	250 V	14 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	28.3 A	Radial Can - Screw Terminals	18 mOhm	22.6 A	Chassis Mount
KEMET ALS70P243NS250	24 mF	85 °C	-40 C			250 V	12 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	29.8 A	Radial Can - Screw Terminals	16 mOhm	24.1 A	Chassis Mount	7.717 in	196 mm
KEMET ALS70P134NJ063	130 mF	85 °C	-40 C	117 mm	4.606 "	63 V	9 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	29.8 A	Radial Can - Screw Terminals	9 mOhm	28.1 A	Chassis Mount
KEMET ALS70P513NJ100	51000 µF	85 °C	-40 C	117 mm	4.606 "	100 V	12 mOhms	20 %	1.252 in	31.8 mm	20000 Hrs	77 mm	3.031 in	General Purpose	Polar	28.7 A	Radial Can - Screw Terminals	12 mOhm	26.4 A	Chassis Mount
