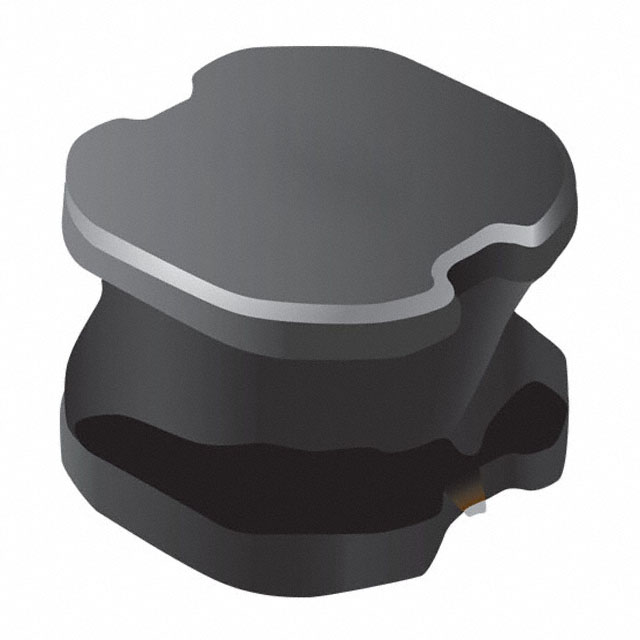

SRN6045 Series

Catalog

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 3.3UH 30% 100KHZ 15Q-FACTOR FERRITE 3.2A 0.0302OHM DCR 2424 T/R

Part	Tolerance	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Inductance	Material - Core	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Frequency - Self Resonant	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Q @ Freq	Package / Case	Current - Saturation (Isat)
Bourns Inc. SRN6045-3R3Y	30 %	Shielded	4.5 mm	0.177 in	Drum Core Wirewound	3.3 µH	Ferrite	30.2 mOhm	125 °C	-40 C	3.2 A	27 MHz	Surface Mount	0.236 "	6 mm	0.236 in	6 mm	100 kHz	7.96 MHz 15	Nonstandard	5 A
Bourns Inc. SRN6045-101M	20 %	Shielded	4.5 mm	0.177 in	Drum Core Wirewound	100 µH	Ferrite	494 mOhm	125 °C	-40 C	700 mA	5 MHz	Surface Mount	0.236 "	6 mm	0.236 in	6 mm	100 kHz	22 796 kHz	Nonstandard	800 mA
Bourns Inc. SRN6045-1R3Y	30 %	Shielded	4.5 mm	0.177 in	Drum Core Wirewound	1.3 µH	Ferrite	17 mOhm	125 °C	-40 C	4 A	48 MHz	Surface Mount	0.236 "	6 mm	0.236 in	6 mm	100 kHz	7.96 MHz 15	Nonstandard	8 A
Bourns Inc. SRN6045-1R0Y	30 %	Shielded	4.5 mm	0.177 in	Drum Core Wirewound	1 µH	Ferrite	13.9 mOhm	125 °C	-40 C	4.2 A	50 MHz	Surface Mount	0.236 "	6 mm	0.236 in	6 mm	100 kHz	7.96 MHz 15	Nonstandard	8.5 A
