RTAC30 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K

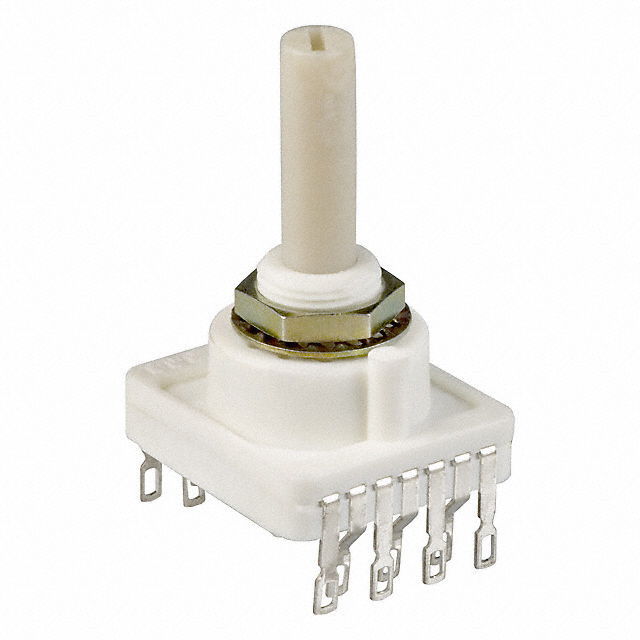

SWITCH ROTARY 12POS 150MA 60V
| Part | Contact Timing | Termination Style | Contact Material | Actuator Length [x] | Angle of Throw | Voltage Rating - DC | Circuit per Deck | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Actuator Type | Actuator Type [diameter] | Contact Finish | Index Stops | Depth Behind Panel | Number of Positions | Number of Decks [custom] | Number of Poles per Deck | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Non-Shorting | Solder Lug | Brass | 50 mm | 30 ° | 60 VDC | SP12T | 10.2 mm | 60 V | Round | 5.9 mm | Silver | Fixed | 18.7 mm | 12 | 1 | 1 | 150 mA |
 Littelfuse/Commercial Vehicle Products | Non-Shorting | Solder Lug | Brass | 25 mm | 30 ° | 60 VDC | SP12T | 10.2 mm | 60 V | Round | 5.9 mm | Silver | Continuous | 18.7 mm | 12 | 1 | 1 | 150 mA |
