282880 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

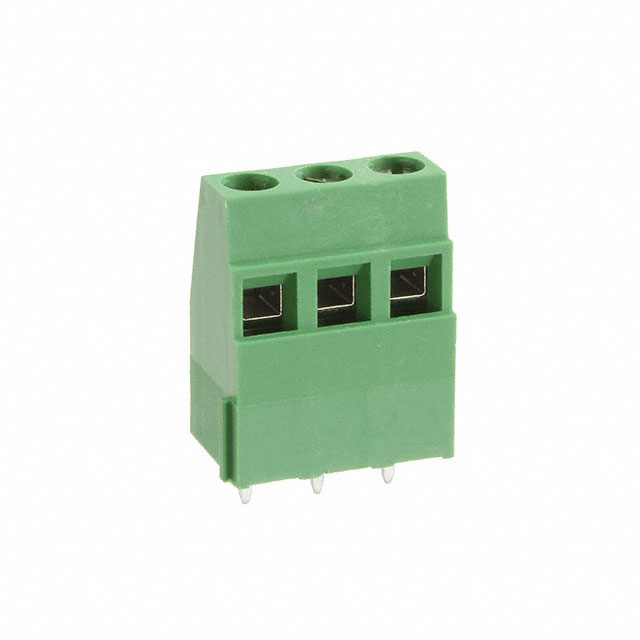

TERM BLK 3POS SIDE ENTRY 5MM PCB
| Part | Features | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Number of Levels | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Screw Thread | Contact Material - Plating [custom] | Screw Material - Plating | Mounting Type | Mating Orientation | Color | Wire Termination | Current | Clamp Material - Plating | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Interlocking (Side) Mid Wire Entry Level | 30 AWG | 12 AWG | 300 V | 1 | 6 Lb-In | 0.68 Nm | -40 °C | 105 ░C | 3 | M3 | Brass - Tin Plated | Brass - Nickel Plated | Through Hole | Horizontal with Board | Green | Screw - Rising Cage Clamp | 13.5 A | Brass - Nickel Plated | 5 mm | 0.197 in |
