ESE-31 Series

Catalog

DETECTOR SWITCH, SPST-NO, SOLDER, 10 MA, 5 V, 1.7 MM

Part	Mounting Type	Voltage Rating - DC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Force	Features	Voltage Rating - AC	Circuit	Termination Style	Switch Function	Current Rating (Amps)	Operating Position [custom]	Operating Position [custom]	Actuator Type	Electrical Life

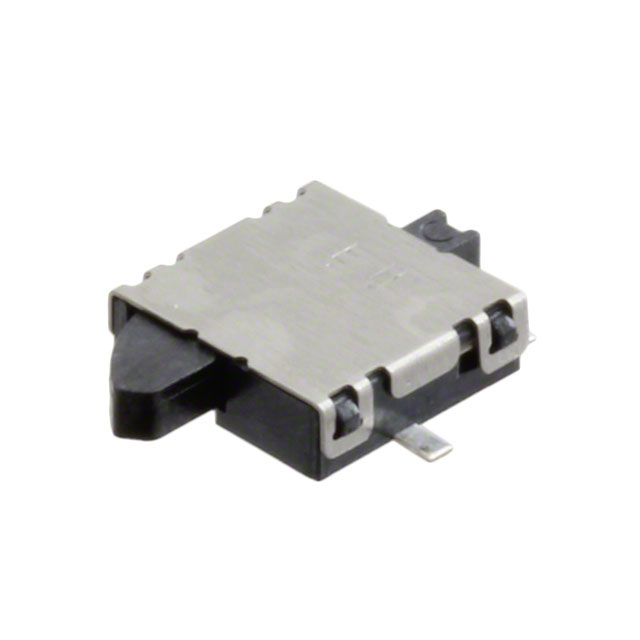

Panasonic Industrial Automation Sales ESE-31R15T	Surface Mount Right Angle	5 V	-10 °C	158 °F	40 gf	Board Guide	20 V	SPST-NO	SMD (SMT) Tab	Off-Mom	10 mA	0.091 in	2.3 mm	Angled Toggle (Detector)	50000 Cycles

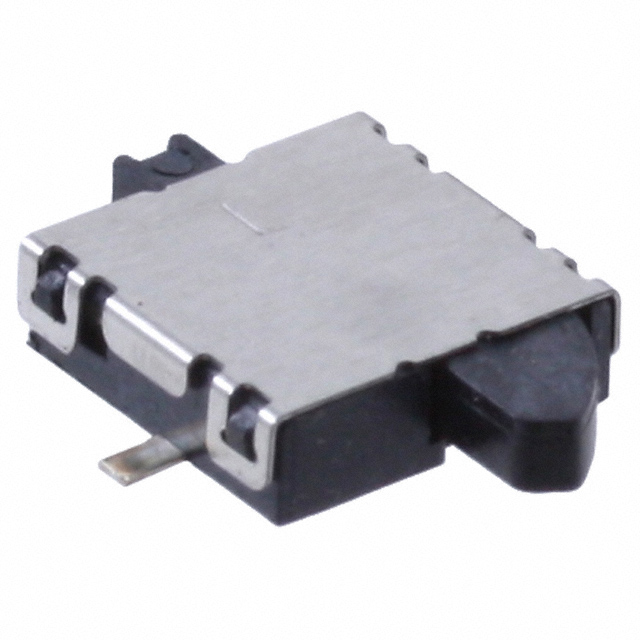

Panasonic Industrial Automation Sales ESE-31L11T	Surface Mount Right Angle	5 V	-10 °C	158 °F	40 gf	Board Guide	20 V	SPST-NO	SMD (SMT) Tab	Off-Mom	10 mA	0.091 in	2.3 mm	Angled Toggle (Detector)	50000 Cycles
Panasonic Industrial Automation Sales ESE-31R11T	Surface Mount Right Angle	5 V	-10 °C	158 °F	40 gf	Board Guide	20 V	SPST-NO	SMD (SMT) Tab	Off-Mom	10 mA	0.091 in	2.3 mm	Angled Toggle (Detector)	50000 Cycles
