2842110 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,BRK HDR,SRRT,2.8,0.1AU,TB

Part	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Connector Type	Fastening Type	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Type	Termination	Contact Shape	Contact Finish - Post	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Shrouding	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Contact Material

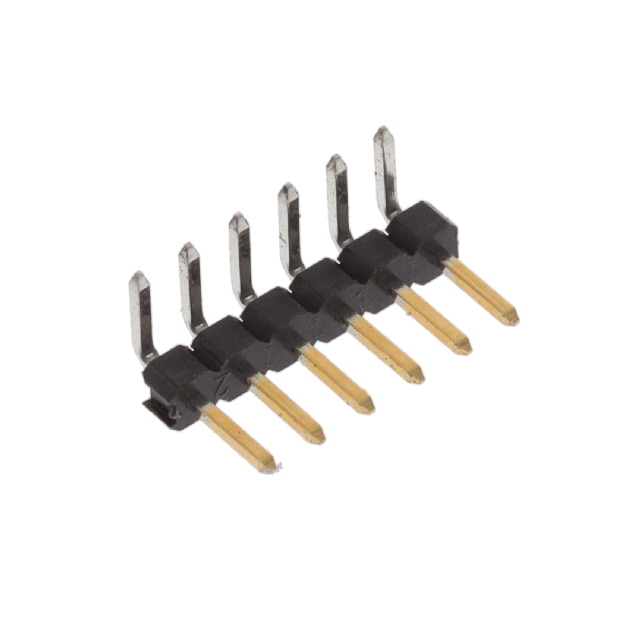

TE Connectivity Raychem Cable Protection 2842110-6	0.11 in	2.79 mm	0.079 in	2 mm	2 A	Breakaway Header	Push-Pull	125 VAC	2 çm	78.7 çin	1	Male Pin	Solder	Square	Tin	6	1.5 mm	0.059 "	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Unshrouded	UL94 V-0	All	Gold	4 mm	0.157 in	125 °C	-40 °C	Thermoplastic	Copper Alloy

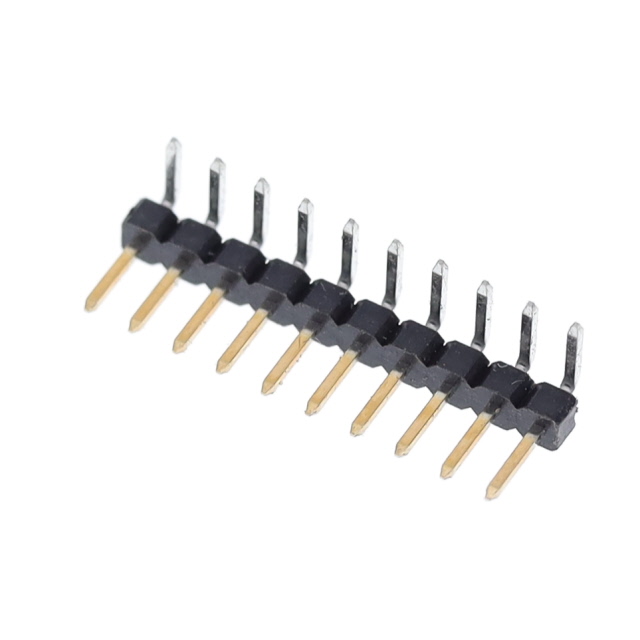

TE Connectivity Raychem Cable Protection 1-2842110-0	0.11 in	2.79 mm	0.079 in	2 mm	2 A	Breakaway Header	Push-Pull	125 VAC	2 çm	78.7 çin	1	Male Pin	Solder	Square	Tin	10	1.5 mm	0.059 "	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Unshrouded	UL94 V-0	All	Gold	4 mm	0.157 in	125 °C	-40 °C	Thermoplastic	Copper Alloy

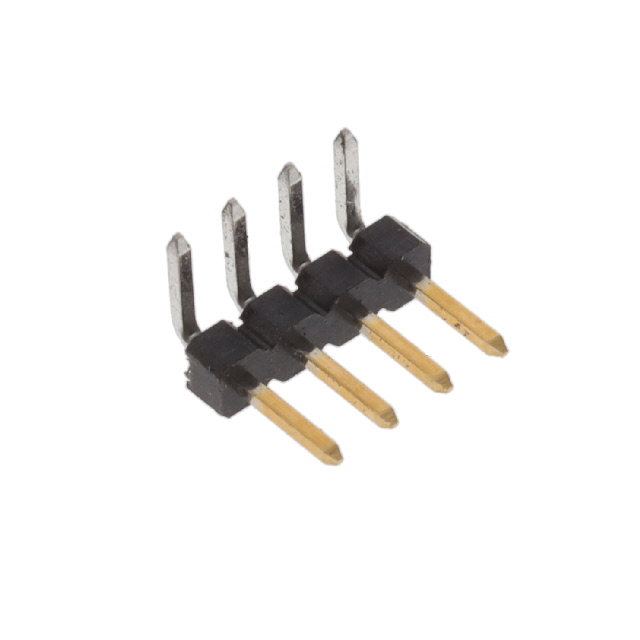

TE Connectivity Raychem Cable Protection 2842110-4	0.11 in	2.79 mm	0.079 in	2 mm	2 A	Breakaway Header	Push-Pull	125 VAC	2 çm	78.7 çin	1	Male Pin	Solder	Square	Tin	4	1.5 mm	0.059 "	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Unshrouded	UL94 V-0	All	Gold	4 mm	0.157 in	125 °C	-40 °C	Thermoplastic	Copper Alloy
TE Connectivity Raychem Cable Protection 2842110-5	0.11 in	2.79 mm	0.079 in	2 mm	2 A	Breakaway Header	Push-Pull	125 VAC	2 çm	78.7 çin	1	Male Pin	Solder	Square	Tin		1.5 mm	0.059 "	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Unshrouded	UL94 V-0	All	Gold	4 mm	0.157 in	125 °C	-40 °C	Thermoplastic	Copper Alloy

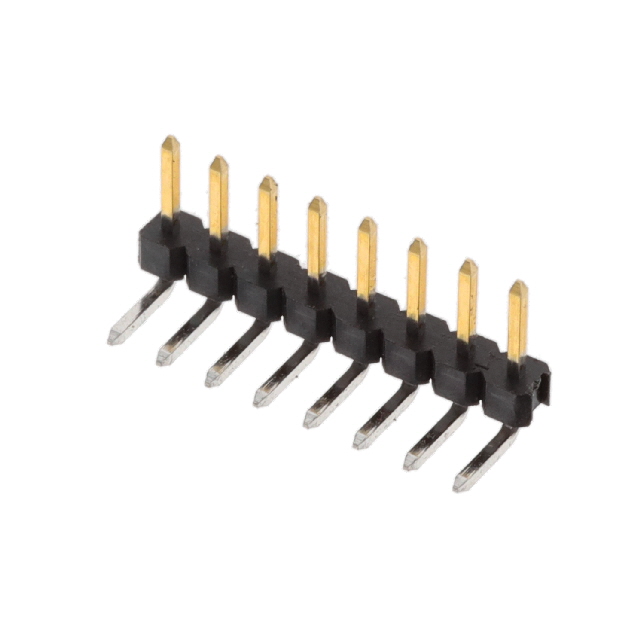

TE Connectivity Raychem Cable Protection 2842110-8	0.11 in	2.79 mm	0.079 in	2 mm	2 A	Breakaway Header	Push-Pull	125 VAC	2 çm	78.7 çin	1	Male Pin	Solder	Square	Tin	8	1.5 mm	0.059 "	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Unshrouded	UL94 V-0	All	Gold	4 mm	0.157 in	125 °C	-40 °C	Thermoplastic	Copper Alloy

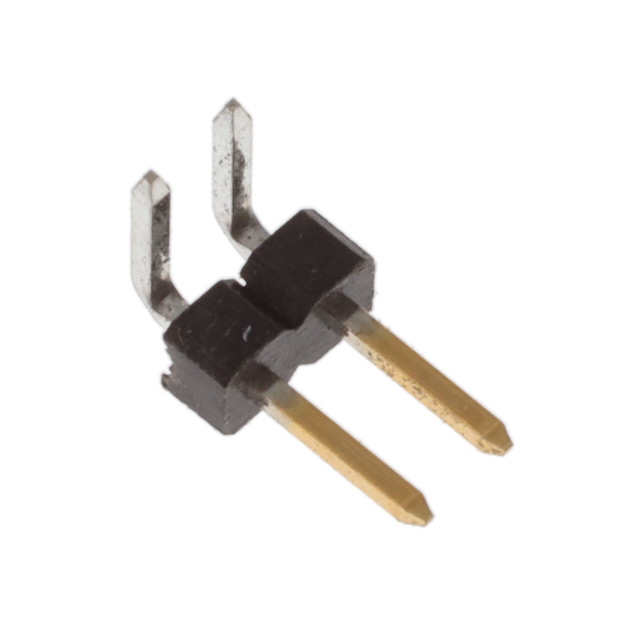

TE Connectivity Raychem Cable Protection 2842110-2	0.11 in	2.79 mm	0.079 in	2 mm	2 A	Breakaway Header	Push-Pull	125 VAC	2 çm	78.7 çin	1	Male Pin	Solder	Square	Tin	2	1.5 mm	0.059 "	3.94 µin	0.1 µm	Through Hole Right Angle	Black	Unshrouded	UL94 V-0	All	Gold	4 mm	0.157 in	125 °C	-40 °C	Thermoplastic	Copper Alloy
