PT78ST1 Series

Catalog

DC DC CONVERTER 6V

Part	Applications	Number of Outputs	Package / Case	Efficiency	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Mounting Type	Type	Current - Output (Max) [Max]
Texas Instruments PT78ST106S	ITE (Commercial)	1	3-SMD Module	85 %	6 V	85 °C	-40 °C	10 VDC	38 V	0.34 in	8.6 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Surface Mount	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST112V	ITE (Commercial)	1	3-SIP Module	90 %	12 V	85 °C	-40 °C	16 V	38 V	0.94 in	23.9 mm	0.9 "	22.9 mm	7.9 mm	0.31 "	OTP SCP	Through Hole	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST112ST	ITE (Commercial)	1	3-SMD Module	90 %	12 V	85 °C	-40 °C	16 V	38 V	0.34 in	8.6 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Surface Mount	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST133S	ITE (Commercial)	1	3-SMD Module	80 %	3.3 V	85 °C	-40 °C	9 V	26 V	0.34 in	8.6 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Surface Mount	Non-Isolated PoL Module	1.5 A

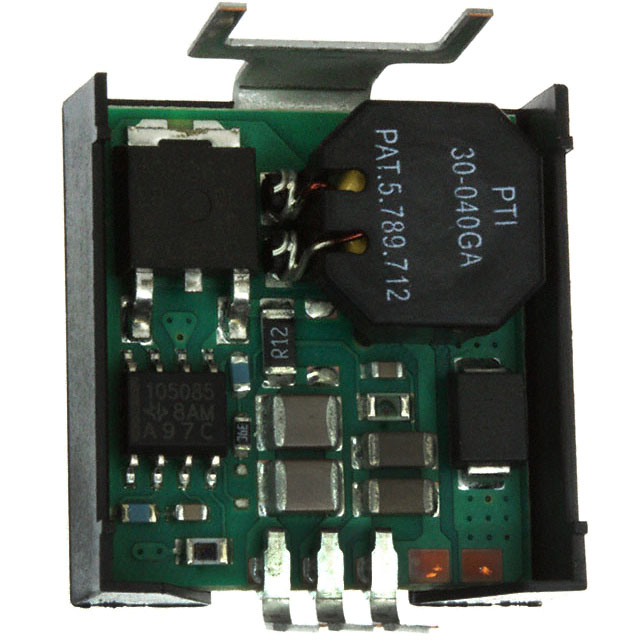

Texas Instruments PT78ST133H	ITE (Commercial)	1	3-SIP Module	80 %	3.3 V	85 °C	-40 °C	9 V	26 V	0.31 in	7.9 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Through Hole Right Angle	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST106H	ITE (Commercial)	1	3-SIP Module	85 %	6 V	85 °C	-40 °C	10 VDC	38 V	0.31 in	7.9 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Through Hole Right Angle	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST105V	ITE (Commercial)	1	3-SIP Module	85 %	5 V	85 °C	-40 °C	9 V	38 V	0.94 in	23.9 mm	0.9 "	22.9 mm	7.9 mm	0.31 "	OTP SCP	Through Hole	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST106ST	ITE (Commercial)	1	3-SMD Module	85 %	6 V	85 °C	-40 °C	10 VDC	38 V	0.34 in	8.6 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Surface Mount	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST165V	ITE (Commercial)	1	3-SIP Module	85 %	6.5 V	85 °C	-40 °C	10.5 V	38 V	0.94 in	23.9 mm	0.9 "	22.9 mm	7.9 mm	0.31 "	OTP SCP	Through Hole	Non-Isolated PoL Module	1.5 A
Texas Instruments PT78ST108S	ITE (Commercial)	1	3-SMD Module	85 %	8 V	85 °C	-40 °C		38 V	0.34 in	8.6 mm	0.94 in	23.9 mm	22.9 mm	0.9 "	OTP SCP	Surface Mount	Non-Isolated PoL Module	1.5 A
