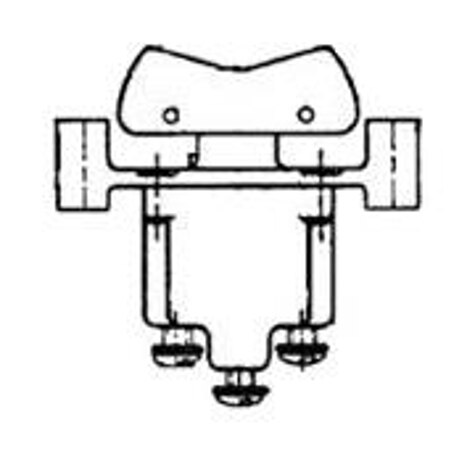

1TP20 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Voltage Rating - AC | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Features | Actuator Type | Mounting Type | Current Rating (Amps) | Approval Agency | Color - Actuator/Cap | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 125 V | On-Off | 23.9 mm | 38.4 mm | Screw Terminal | Sealed | Concave (Curved) | Flange Panel Mount | 15 A | CE CSA UKCA UL | White | SPST | 71 °C | -54 °C | No Marking |
Honeywell Sensing and Productivity Solutions | 125 V | On-Mom | 23.9 mm | 38.4 mm | Screw Terminal | Sealed | Concave (Curved) | Flange Panel Mount | 10 A | CE CSA UKCA UL | White | SPDT | 71 °C | -54 °C | No Marking |
 Honeywell Sensing and Productivity Solutions | 125 V | Off-Mom | 23.9 mm | 38.4 mm | Screw Terminal | Sealed | Concave (Curved) | Flange Panel Mount | 10 A | CE CSA UKCA UL | White | SPST-NO | 71 °C | -54 °C | No Marking |
