A8A-202 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

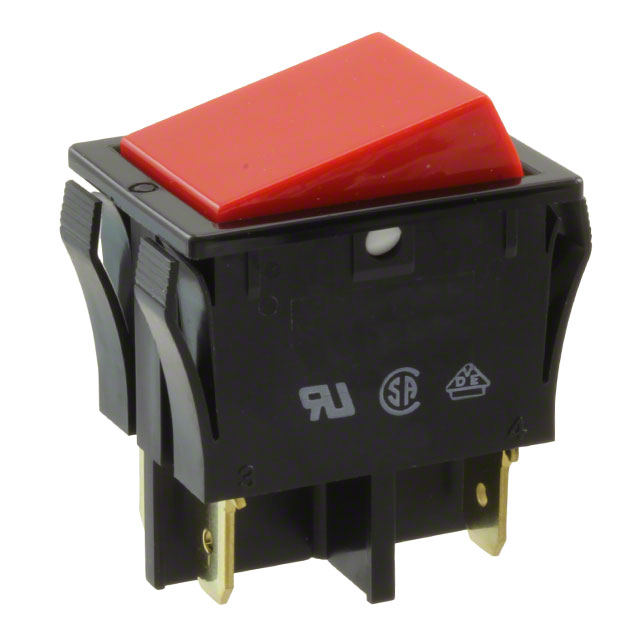

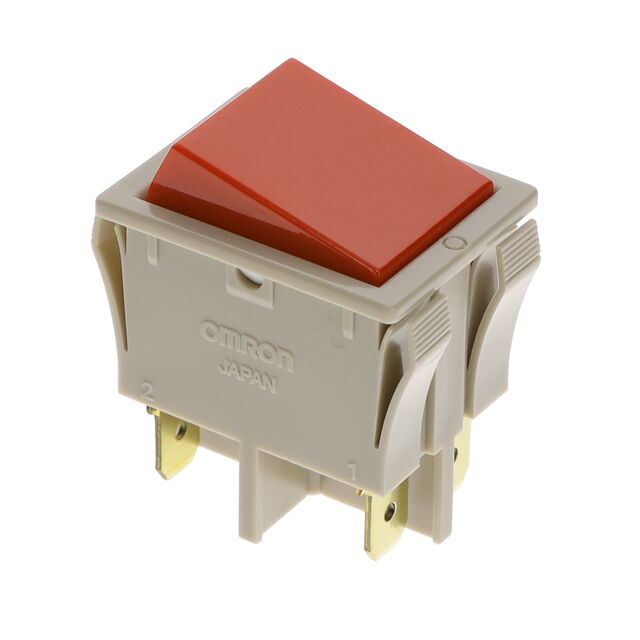

SWITCH ROCKER DPST 16A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Termination Style | Ingress Protection | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Approval Agency | Actuator Marking | Current Rating (Amps) | Actuator Type | Switch Function | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 40000 Cycles | 20000 Steps | 125 V | Quick Connect - 0.250" (6.3mm) | IP00 | 30 mm | 22 mm | Panel Mount Snap-In | 50 °C | -25 °C | DPST | CSA EN UL | No Marking | 16 A | Flat | On-Off | Red |
 Omron Electronics Inc-EMC Div | 40000 Cycles | 20000 Steps | 125 V | Quick Connect - 0.250" (6.3mm) | IP00 | 30 mm | 22 mm | Panel Mount Snap-In | 50 °C | -25 °C | DPST | CSA EN UL | No Marking | 16 A | Flat | On-Off | Red |
