087752 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 3POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Number of Rows	Fastening Type	Style	Current Rating (Amps)	Insulation Color	Material Flammability Rating	Termination	Contact Shape	Connector Type	Overall Contact Length	Overall Contact Length	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Material	Insulation Height	Insulation Height	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Finish - Mating	Overall Contact Length
Molex 0877520324	2.5 µm	98.4 µin	-55 °C	125 °C	Through Hole	0.106 in	2.69 mm	Tin	1	Push-Pull	Board to Board Cable	2 A	Black	UL94 V-0	Solder	Square	Breakaway Header	8.2 mm	0.323 in	0.079 in	2 mm	125 VDC	Copper Alloy	1.5 mm	0.059 "	Glass Filled Nylon Polyamide (PA)	Unshrouded	2.5 µm	98.4 µin	All	Male Pin	4 mm	0.157 in

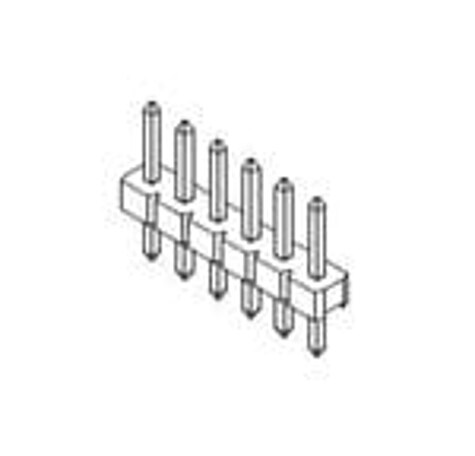

Molex 0877520304		2.54 µm			Through Hole			Tin	1	Push-Pull	Board to Board Cable		Black	UL94 V-0	Solder	Square	Breakaway Header	8.2 mm	0.323 in	0.079 in	2 mm		Copper Alloy	1.5 mm	0.059 "	Glass Filled Nylon Polyamide (PA)	Unshrouded	2.54 çm	100 çin	All	Male Pin	3.2 mm	0.126 "	3.5 mm	0.138 in	100 µin
Molex 0877520436		0.38 µm			Through Hole			Gold	1	Push-Pull	Board to Cable/Wire		Black	UL94 V-0	Solder	Square	Breakaway Header		17.8 mm	0.079 in	2 mm		Copper Alloy	1.5 mm	0.059 "	Glass Filled Nylon Polyamide (PA)	Unshrouded	0.38 µm	15 µin	All	Male Pin			9.7 mm	0.382 in	15 µin	6.6 mm	0.26 in	Gold	0.701 in
