GBC05D Series

Catalog

CONN HEADER SMD 10POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Post	Insulation Material	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Number of Rows [custom]	Number of Positions	Contact Material	Termination	Connector Type	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Shape	Contact Type

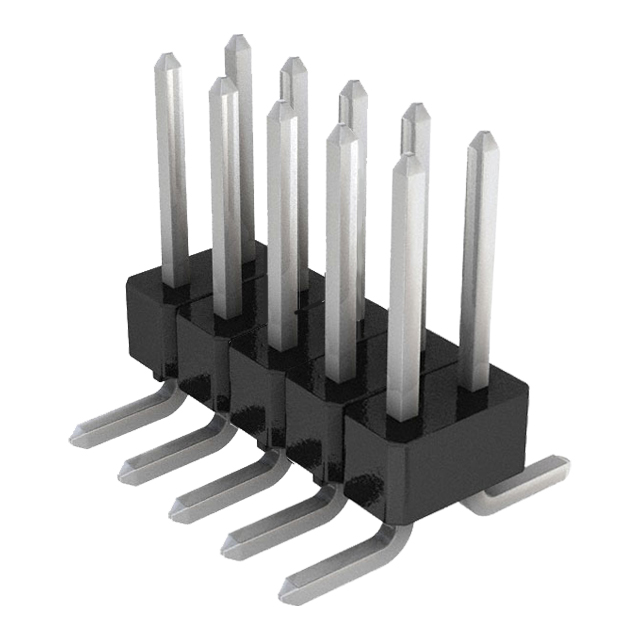

Sullins Connector Solutions GBC05DABN-M30	2.54 µm	100 µin	3 A	Tin	Nylon 9T Polyamide (PA9T)	Board to Board Cable	150 °C	-65 ░C	All	Push-Pull	UL94 V-0	0.25 µm	10 µin	0.1 "	2.54 mm	Surface Mount	Unshrouded	0.1 in	2.54 mm	0.23 in	5.84 mm	2	10	Phosphor Bronze	Solder	Header Breakaway	Black	0.1 in	2.54 mm	Gold	Square	Male Pin
