C4PXG-4 Series

Catalog

DIP CABLE - CDP40G/AE40G/X

Part	Connector Type	Pitch - Cable	Pitch - Cable	Number of Rows [custom]	Usage	Number of Positions	Contact Finish	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Pitch - Connector	Pitch - Connector	Length	Color	Length [x]	Length [x]

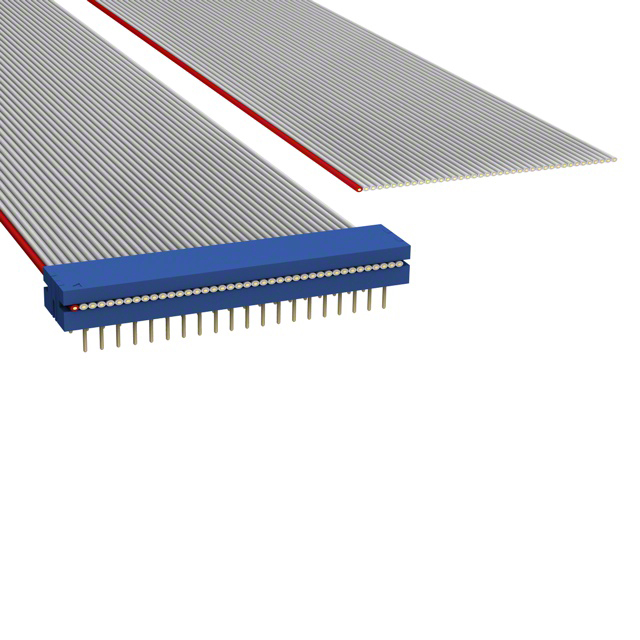

CW Industries C4PXG-4036G	DIP to Cable	0.05 in	1.27 mm	2	Board In Socket (0.6")	40	Gold	IDC	Unshielded	0.25 Ám	10 Áin	91.44 cm	3 ft	0.1 in	2.54 mm
CW Industries C4PXG-4006G	DIP to Cable	0.05 in	1.27 mm	2	Board In Socket (0.6")	40	Gold	IDC	Unshielded	0.25 Ám	10 Áin	152.4 mm	0.5 '	0.1 in	2.54 mm	6 "

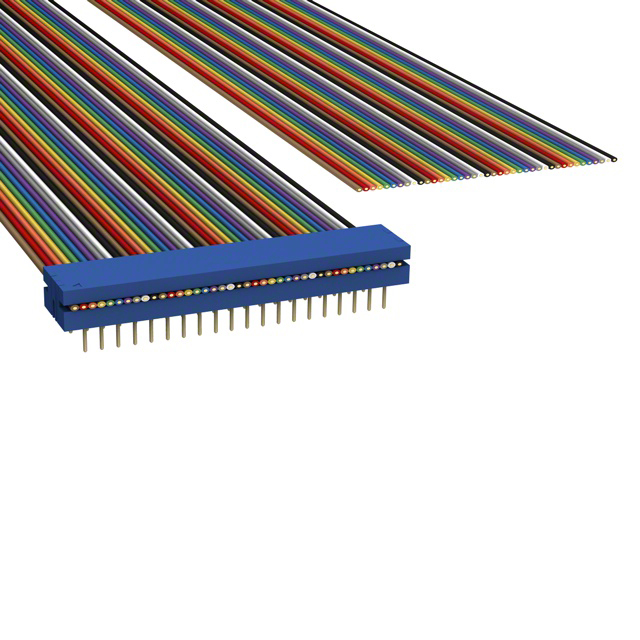

CW Industries C4PXG-4006M	DIP to Cable	0.05 in	1.27 mm	2	Board In Socket (0.6")	40	Gold	IDC	Unshielded	0.25 Ám	10 Áin	152.4 mm	0.5 '	0.1 in	2.54 mm	6 "	Multiple Ribbon
CW Industries C4PXG-4018G	DIP to Cable	0.05 in	1.27 mm	2	Board In Socket (0.6")	40	Gold	IDC	Unshielded	0.25 Ám	10 Áin			0.1 in	2.54 mm			457.2 mm	1.5 ft
CW Industries C4PXG-4018M	DIP to Cable	0.05 in	1.27 mm	2	Board In Socket (0.6")	40	Gold	IDC	Unshielded	0.25 Ám	10 Áin			0.1 in	2.54 mm		Multiple Ribbon	457.2 mm	1.5 ft
