726-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 19POS 0.125

Part	Termination Rows	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Termination	Contact Material	Number of Positions	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Number of Rows	Color	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Type	Number of Positions/Bay/Row	Mounting Type

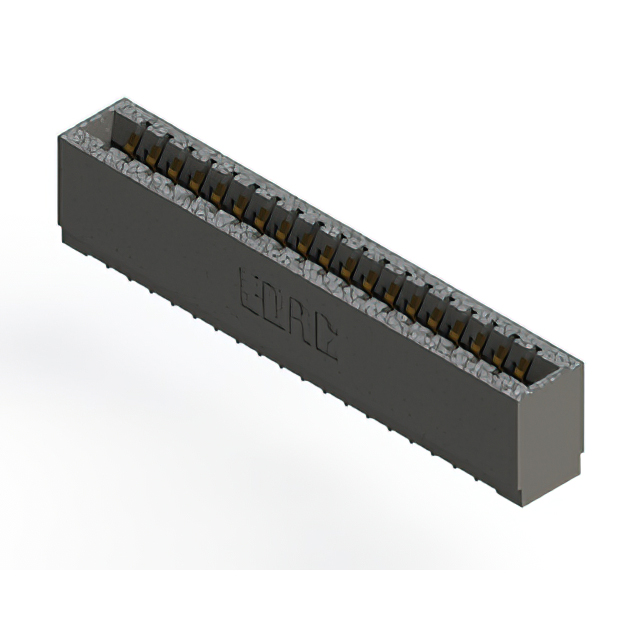

EDAC Inc. 726-019-525-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Copper Alloy	19	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	Single	1	Black	3.18 mm	0.125 in	-40 C	105 ░C	Gold	Cantilever	19	Through Hole
EDAC Inc. 726-019-545-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy	19	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	Single	1	Black	3.18 mm	0.125 in	-40 C	105 ░C	Gold	Cantilever	19	Through Hole

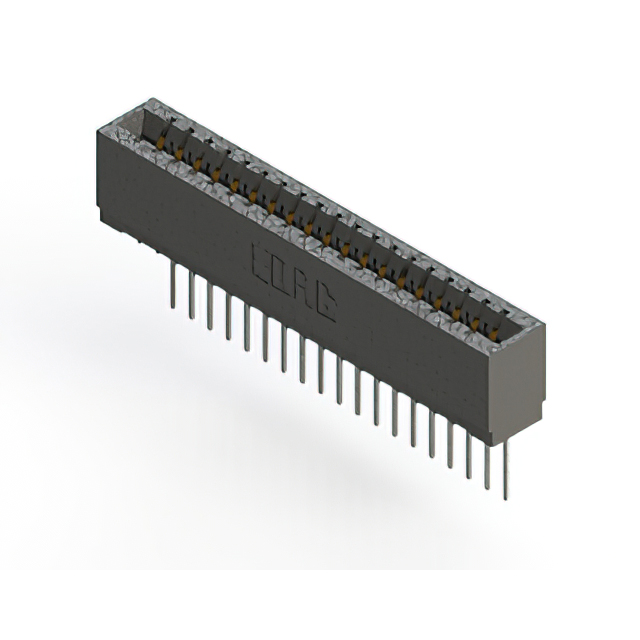

EDAC Inc. 726-019-540-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Copper Alloy	19	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	Single	1	Black	3.18 mm	0.125 in	-40 C	105 ░C	Gold	Cantilever	19	Through Hole

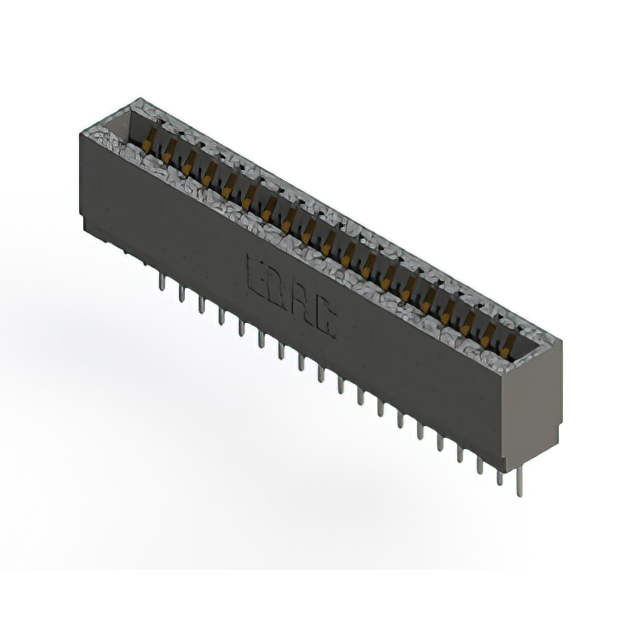

EDAC Inc. 726-019-527-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Copper Alloy	19	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	Single	1	Black	3.18 mm	0.125 in	-40 C	105 ░C	Gold	Cantilever	19	Through Hole

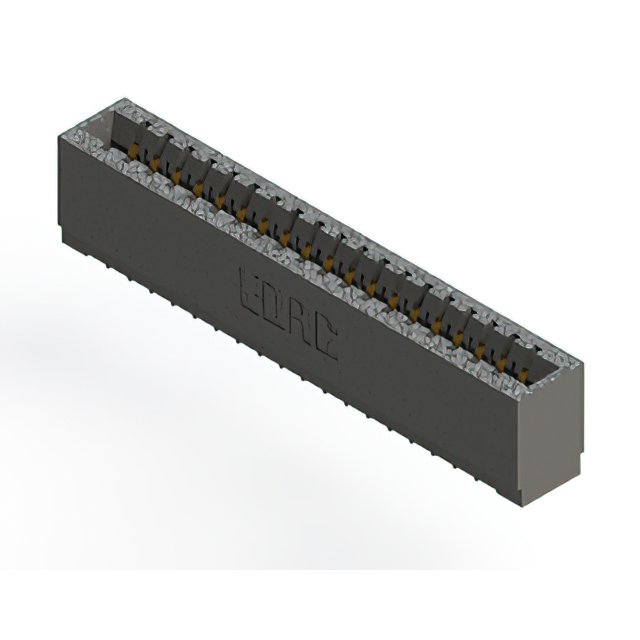

EDAC Inc. 726-019-520-101	1	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Copper Alloy	19	Female	30 Áin	0.76 Ám	Non Specified - Single Edge	Single	1	Black	3.18 mm	0.125 in	-40 C	105 ░C	Gold	Cantilever	19	Through Hole
