146-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 40POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material - Mating	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Type [custom]	Type [custom]	Type	Contact Finish - Mating	Pitch - Post	Pitch - Post	Termination	Contact Material - Post	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 146-93-640-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	40	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy
Mill-Max Manufacturing Corp. 146-93-422-41-012000			3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	22	-55 C	125 °C			DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy	0.12 "	3.05 mm	11	2	0.4 in

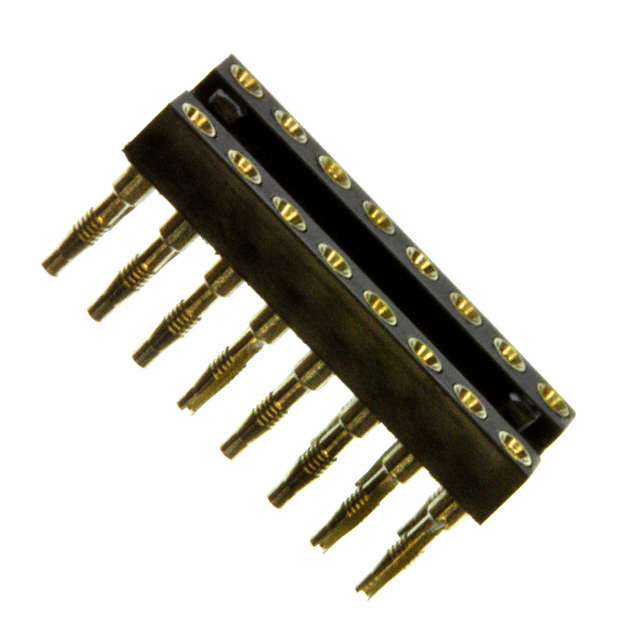

Mill-Max Manufacturing Corp. 146-93-316-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	16	-55 C	125 °C			DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy					0.3 in	7.62 mm	2	8
Mill-Max Manufacturing Corp. 146-93-628-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	28	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy
Mill-Max Manufacturing Corp. 146-93-308-41-012000			3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	8	-55 C	125 °C			DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy	0.12 "	3.05 mm	4	2	0.3 in	7.62 mm
Mill-Max Manufacturing Corp. 146-93-314-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	14	-55 C	125 °C			DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy					0.3 in	7.62 mm
Mill-Max Manufacturing Corp. 146-93-318-41-012000			3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	18	-55 C	125 °C			DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy	0.12 "	3.05 mm			0.3 in	7.62 mm
Mill-Max Manufacturing Corp. 146-93-324-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	24	-55 C	125 °C			DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy			2	12	0.3 in	7.62 mm
Mill-Max Manufacturing Corp. 146-93-624-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	24	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy			2	12
Mill-Max Manufacturing Corp. 146-93-632-41-013000	0.175 in	4.45 mm	3 A	Tin-Lead	0.76 Ám	30 Áin	0.1 "	2.54 mm	Through Hole	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Open Frame	32	-55 C	125 °C	15.24 mm	0.6 in	DIP	Gold	0.1 in	2.54 mm	Press-Fit	Brass Alloy
