9441-1083 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

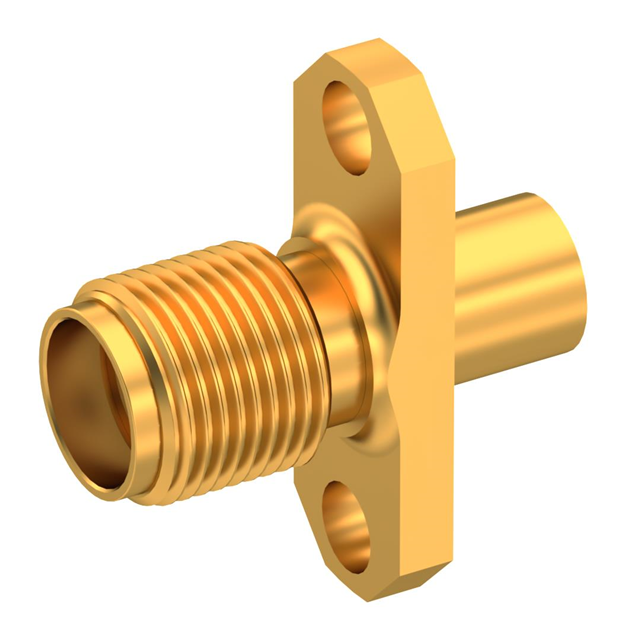

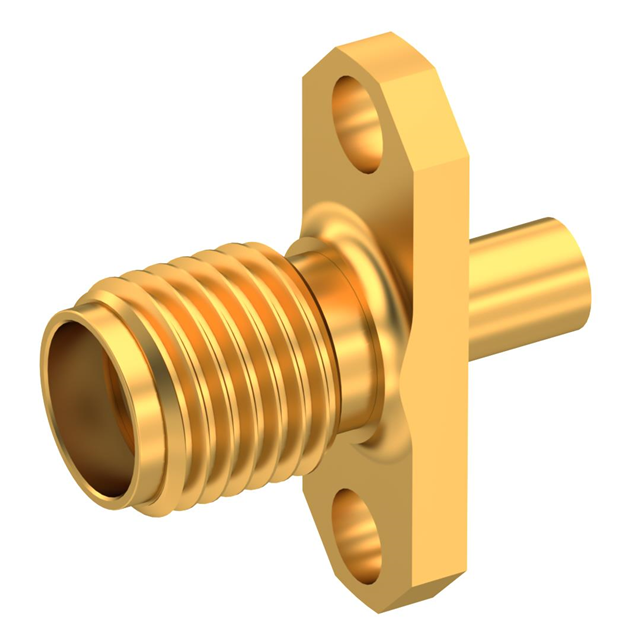

SMA / STRAIGHT JACK FEMALE SOLDE
| Part | Body Finish | Mating Cycles | Center Contact Plating | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mounting Type | Impedance | Connector Type | Mounting Feature | Shield Termination | Fastening Type | Contact Termination | Connector Style | Frequency - Max [Max] | Number of Ports | Center Contact Material | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 | Gold | Stainless Steel | 500 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Panel Mount | 50 Ohms | Female Socket Jack | Flange | Solder | Threaded | Solder | SMA | 18 GHz | 1 | Beryllium Copper | Gold | |
 Radiall USA, Inc. | Gold | 500 | Gold | Stainless Steel | 350 VDC | -65 ░C | 105 ░C | Polytetrafluoroethylene (PTFE) | Panel Mount | 50 Ohms | Female Socket Jack | Flange | Solder | Threaded | Solder | SMA | 18 GHz | 1 | Beryllium Copper | Gold | RG-405 (.085" Semi Rigid) |
