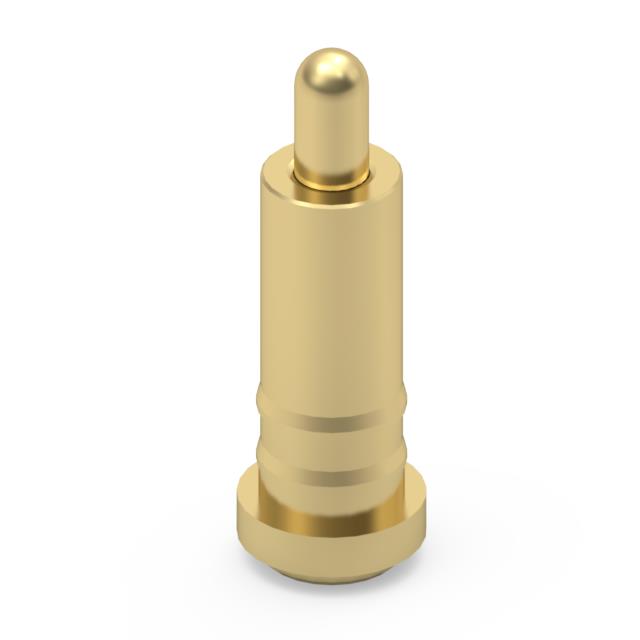

0859-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Pad Layout Dimension | Pad Layout Dimension | Contact Finish | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Initial | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height | Minimum Working Height | Contact Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Recommended Working Height | Recommended Working Height | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 120 gf | 3.18 mm | 0.125 in | Gold | 9.6 A | 1.27 mm | 0.05 in | 25 gf | 1000000 | 20 µin | 0.51 µm | 7.32 mm | 0.288 in | Sleeve & Plunger (Pogo Pins) | 0.378 in | 9.6 mm | 0.333 in | 8.46 mm | Surface Mount | Brass Alloy |
