04FMN-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

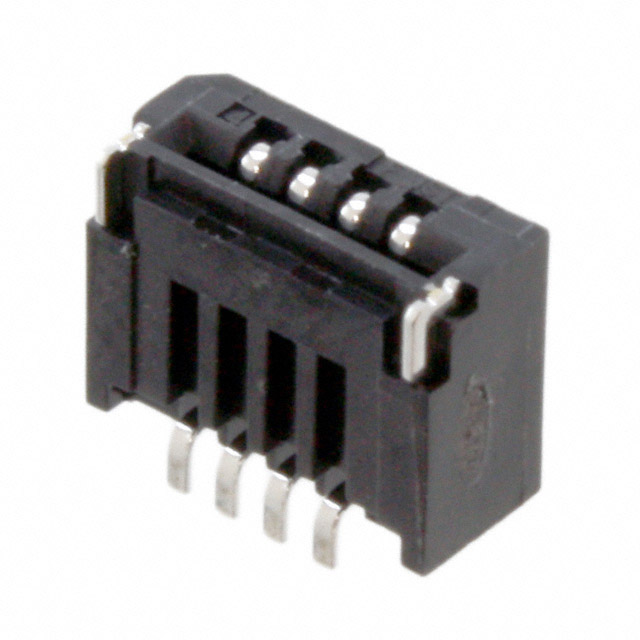

CONN FFC TOP 4POS 1MM R/A
| Part | Current Rating (Amps) | Housing Color | Contact Material | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Termination | Housing Material | Connector/Contact Type | Mounting Type | Material Flammability Rating | Cable End Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish | FFC, FCB Thickness | Number of Positions | Flat Flex Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.5 A | Black | Phosphor Bronze | 0.118 in | 3 mm | 50 V | Solder | Nylon 6T Polyamide (PA6T) | Contacts Top | Right Angle Surface Mount | UL94 V-0 | Straight | 85 °C | -25 °C | Low Insertion Force (LIF) | Tin | 0.3 mm | 4 | FFC | 1 mm | 0.039 in |
