M55-702 Series

Catalog

CONNECTOR, HEADER, 68POS, 2ROW, 1.27MM

Part	Termination	Insulation Color	Material Flammability Rating	Contact Type	Connector Type	Shrouding	Contact Finish - Post	Contact Material	Contact Shape	Current Rating (Amps)	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Positions	Features	Number of Positions Loaded	Insulation Material	Number of Rows [custom]	Mounting Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post

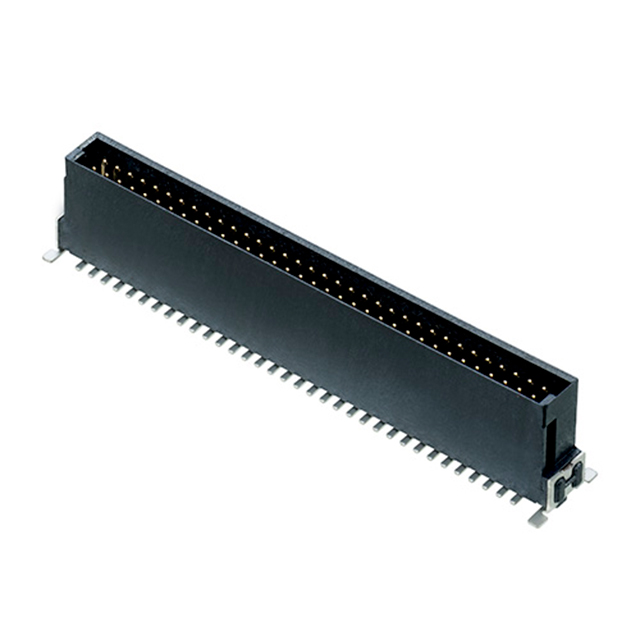

Harwin Inc. M55-7026842R	Solder	Black	UL94 V-0	Male Pin	Header	Shrouded - 4 Wall	Tin	Phosphor Bronze	Rectangular	1.2 A	Latch Lock	0.05 in	1.27 mm	0.025 µm	1 µin	0.388 in	9.86 mm	4 mm	0.157 in	68 positions	Board Guide Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP)	2	Surface Mount	Gold	-55 C	125 °C	1.27 mm	0.05 in	11.1 mm 13.9 mm 18.5 mm	Automotive General Purpose Industrial	2.54 µm	100 µin

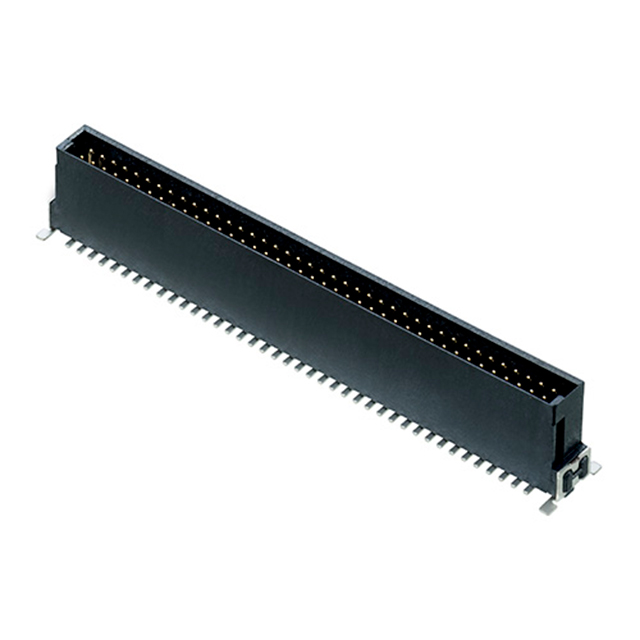

Harwin Inc. M55-7028042R	Solder	Black	UL94 V-0	Male Pin	Header	Shrouded - 4 Wall	Tin	Phosphor Bronze	Rectangular	1.2 A	Latch Lock	0.05 in	1.27 mm	0.025 µm	1 µin	0.388 in	9.86 mm	4 mm	0.157 in	80	Board Guide Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP)	2	Surface Mount	Gold	-55 C	125 °C	1.27 mm	0.05 in	11.1 mm 13.9 mm 18.5 mm	Automotive General Purpose Industrial	2.54 µm	100 µin

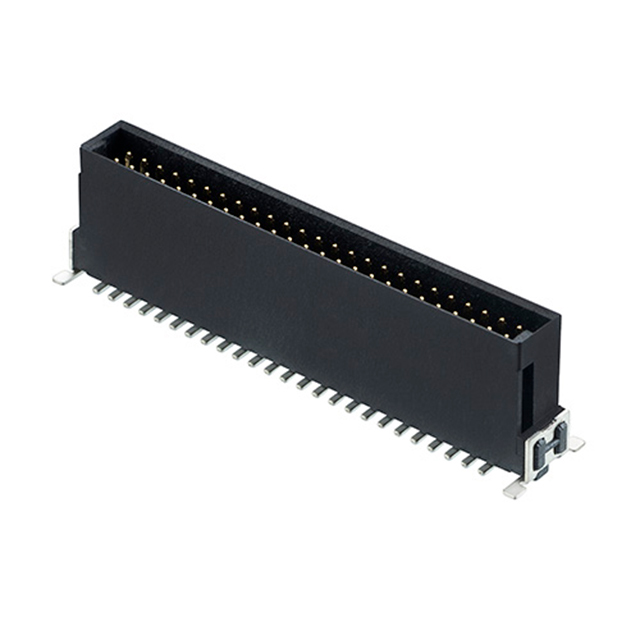

Harwin Inc. M55-7025042R	Solder	Black	UL94 V-0	Male Pin	Header	Shrouded - 4 Wall	Tin	Phosphor Bronze	Rectangular	1.2 A	Latch Lock	0.05 in	1.27 mm	0.025 µm	1 µin	0.388 in	9.86 mm	4 mm	0.157 in	50	Board Guide Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP)	2	Surface Mount	Gold	-55 C	125 °C	1.27 mm	0.05 in	11.1 mm 13.9 mm 18.5 mm	Automotive General Purpose Industrial	2.54 µm	100 µin

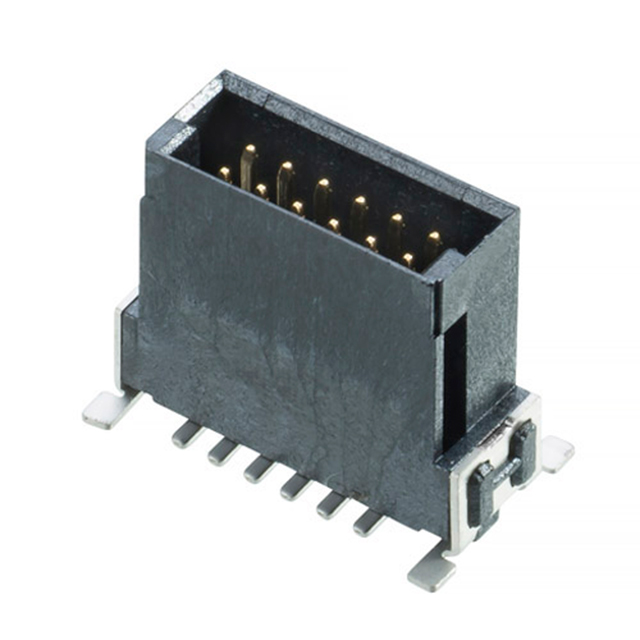

Harwin Inc. M55-7021242R	Solder	Black	UL94 V-0	Male Pin	Header	Shrouded - 4 Wall	Tin	Phosphor Bronze	Rectangular	1.2 A	Latch Lock	0.05 in	1.27 mm	0.025 µm	1 µin	0.388 in	9.86 mm	4 mm	0.157 in	12	Board Guide Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP)	2	Surface Mount	Gold	-55 C	125 °C	1.27 mm	0.05 in	11.1 mm 13.9 mm 18.5 mm	Automotive General Purpose Industrial	2.54 µm	100 µin

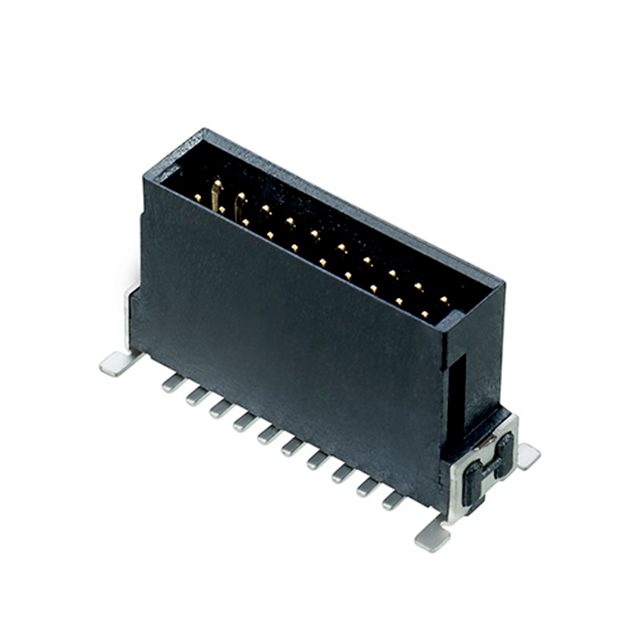

Harwin Inc. M55-7022042R	Solder	Black	UL94 V-0	Male Pin	Header	Shrouded - 4 Wall	Tin	Phosphor Bronze	Rectangular	1.2 A	Latch Lock	0.05 in	1.27 mm	0.025 µm	1 µin	0.388 in	9.86 mm	4 mm	0.157 in	20	Board Guide Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP)	2	Surface Mount	Gold	-55 C	125 °C	1.27 mm	0.05 in	11.1 mm 13.9 mm 18.5 mm	Automotive General Purpose Industrial	2.54 µm	100 µin
