LCA1000 Series

Terminals Copper Comp Lug 1 Hole 1/0 AWG

Manufacturer: Panduit Corp

Catalog

Terminals Copper Comp Lug 1 Hole 1/0 AWG

Catalog

Terminals Copper Comp Lug 1 Hole 1/0 AWG

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Termination	Contact Material	Color	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Insulation	Mounting Type	Tab Thickness	Tab Thickness	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Terminal Style	Length - Overall [x]	Length - Overall [x]	Terminal Type	Wire Gauge	Diameter - Ring ID [diameter]	Width - Outer Edges [custom]	Width - Outer Edges	Stud/Tab Size	Width - Outer Edges [y]	Length - Overall	Length - Overall

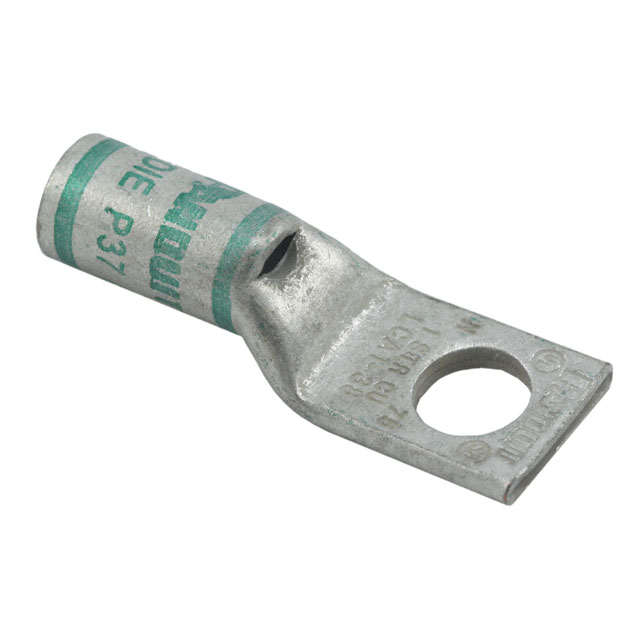

Panduit Corp LCA1-38-E	10.41 mm	0.41 "	0.7 "	17.78 mm	3/8 Stud	Barrel Crimp	Copper	Green	0.36 in	9.14 mm	Non-Insulated	Free Hanging (In-Line)	0.11 in	2.79 mm	0.47 in	11.94 mm	Electro-Tin	Single Stud Hole	50.55 mm	1.99 in	Grounding Lug	1 AWG

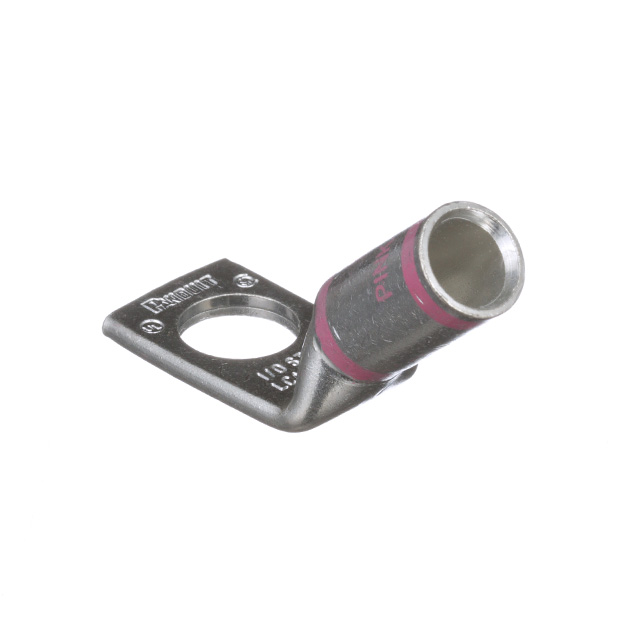

Panduit Corp LCA1/0-12H-X	0.53 in				1/2 Stud	Barrel Crimp	Copper	Pink	0.39 "	9.91 mm	Non-Insulated	45° Angle Free Hanging (In-Line)	0.12 in	3.05 mm	0.52 in	13.21 mm	Electro-Tin	Single Stud Hole			Rectangular Tongue	44 AWG	13.46 mm	0.8 in	20.32 mm

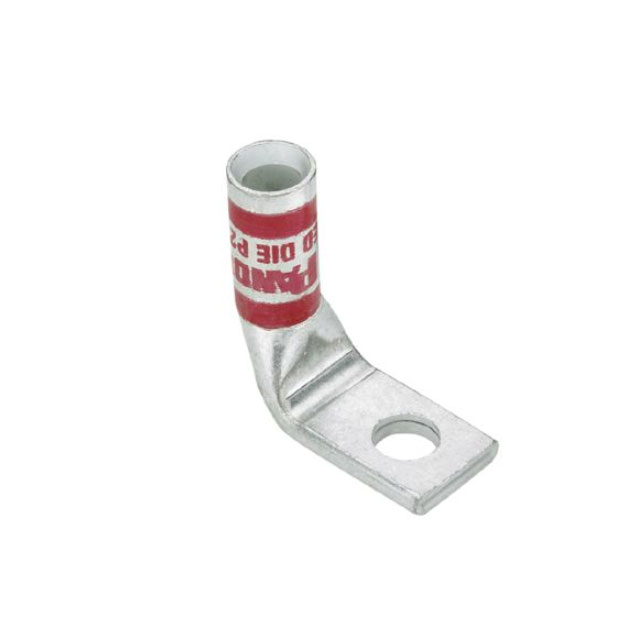

Panduit Corp LCA1/0-14F-X	6.86 mm	0.27 "	19.3 mm			Barrel Crimp	Copper	Pink	0.39 "	9.91 mm	Non-Insulated	Free Hanging (In-Line) Right Angle	0.12 in	3.05 mm	0.52 in	13.21 mm	Electro-Tin	Single Stud Hole			Rectangular Tongue	44 AWG				0.25 Stud	0.76 in

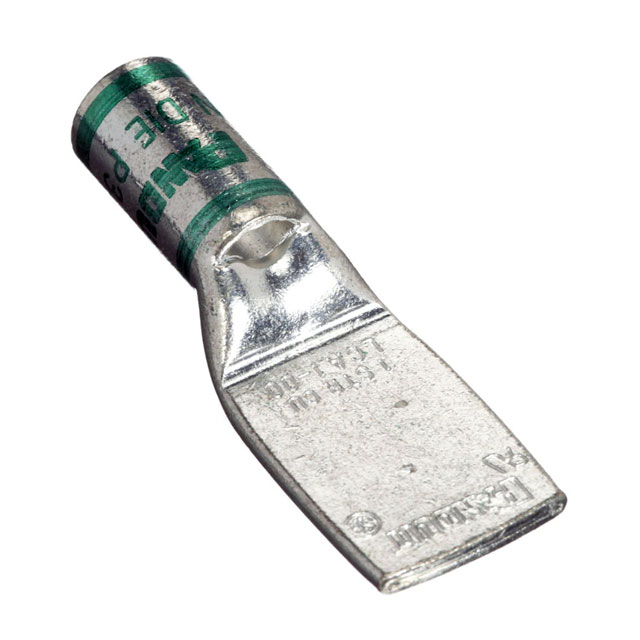

Panduit Corp LCA1-00-E			19.05 mm			Barrel Crimp	Copper	Green	0.36 in	9.14 mm	Non-Insulated	Free Hanging (In-Line)	0.09 in	2.29 mm	0.47 in	11.94 mm	Electro-Tin	No Stud Hole	56.64 mm	2.23 in	Rectangular Tongue	1 AWG					0.75 in

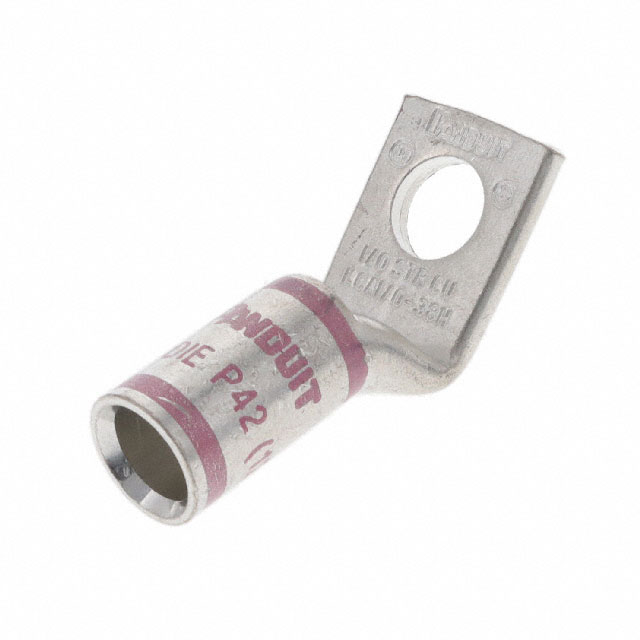

Panduit Corp LCA1/0-38H-X	10.41 mm	0.41 "	19.3 mm		3/8 Stud	Barrel Crimp	Copper	Pink	0.39 "	9.91 mm	Non-Insulated	45° Angle Free Hanging (In-Line)	0.12 in	3.05 mm	0.52 in	13.21 mm	Electro-Tin	Single Stud Hole			Rectangular Tongue	44 AWG					0.76 in

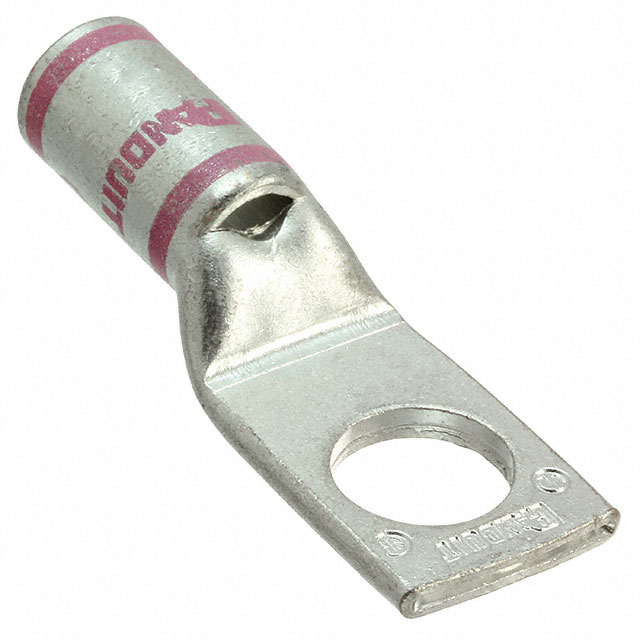

Panduit Corp LCA1/0-12-X	0.53 in				1/2 Stud	Barrel Crimp	Copper	Pink	0.39 "	9.91 mm	Non-Insulated	Free Hanging (In-Line)	0.12 in	3.05 mm	0.52 in	13.21 mm	Electro-Tin	Single Stud Hole			Grounding Lug	44 AWG	13.46 mm	0.8 in	20.32 mm			58.67 mm	2.31 in

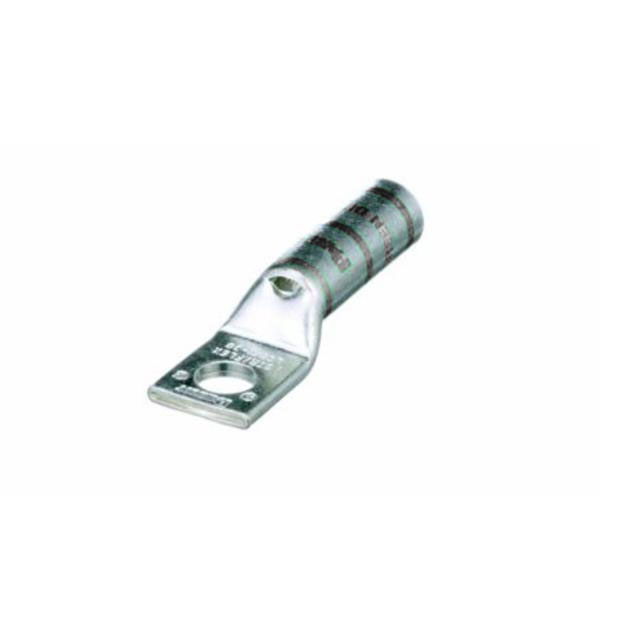

Panduit Corp LCA1/0-14-X	6.86 mm	0.27 "	19.3 mm			Barrel Crimp	Copper	Pink	0.39 "	9.91 mm	Non-Insulated	Free Hanging (In-Line)	0.12 in	3.05 mm	0.52 in	13.21 mm	Electro-Tin	Single Stud Hole	49.53 mm	1.95 in	Rectangular Tongue	44 AWG				0.25 Stud	0.76 in
Panduit Corp LCA1-56H-E	0.34 in		0.7 "	17.78 mm		Barrel Crimp	Copper	Green	0.36 in	9.14 mm	Non-Insulated	45° Angle Free Hanging (In-Line)	0.11 in	2.79 mm	0.47 in	11.94 mm	Electro-Tin	Single Stud Hole			Rectangular Tongue	1 AWG	8.64 mm			0.3125 Stud

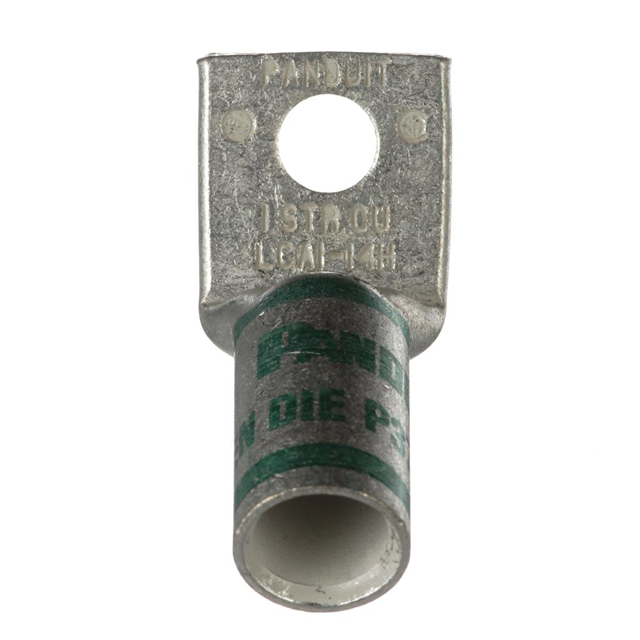

Panduit Corp LCA1-14H-E	6.86 mm	0.27 "	0.7 "	17.78 mm		Barrel Crimp	Copper	Green	0.36 in	9.14 mm	Non-Insulated	45° Angle Free Hanging (In-Line)	0.11 in	2.79 mm	0.47 in	11.94 mm	Electro-Tin	Single Stud Hole			Rectangular Tongue	1 AWG				0.25 Stud
Panduit Corp LCA1-12H-E	0.53 in		19.05 mm		1/2 Stud	Barrel Crimp	Copper	Green	0.36 in	9.14 mm	Non-Insulated	45° Angle Free Hanging (In-Line)	0.09 in	2.29 mm	0.47 in	11.94 mm	Electro-Tin	Single Stud Hole			Rectangular Tongue	1 AWG	13.46 mm				0.75 in
