R74 Series
Manufacturer: KEMET
Beta
⌘K

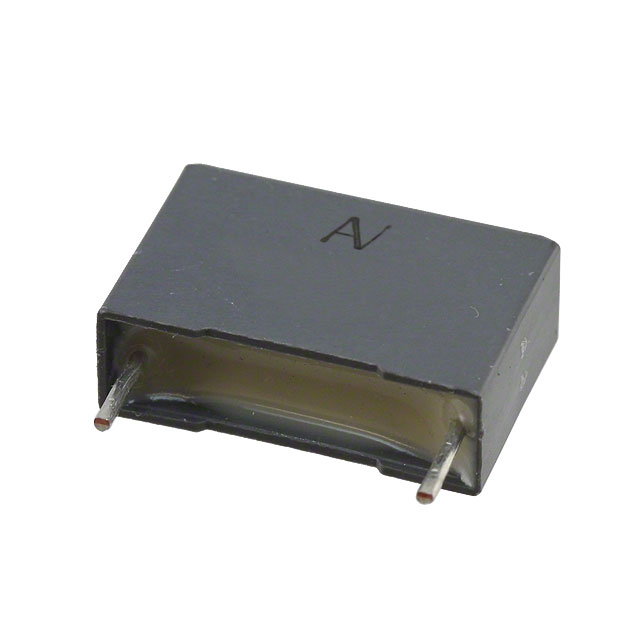

CAP FILM 0.01UF 1600V PP 5%( 18 X 6 X 12MM) RADIAL WOUND 15MM 0.064 OHM 105°C BAG AUTOMOTIVE AEC-Q200
| Part | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Lead Spacing | Lead Spacing | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) | Dielectric Material | Voltage Rating - AC | Applications | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage Rating - DC | Voltage Rating - DC | Termination | Ratings | Height - Seated (Max) [Max] | Size / Dimension [y] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 10000 pF | -55 C | 105 ░C | Through Hole | 15 mm | 0.591 in | 5 % | 0.476 " | 12.1 mm | Polypropylene (PP) Metallized | 500 V | DV/DT High Pulse | Radial | 0.236 " | 6 mm | 0.709 in | 18 mm | 1.6 kV | 1600 V | PC Pins | ||||
 KEMET | 0.022 µF | -55 C | 105 ░C | Through Hole | 15 mm | 0.591 in | 5 % | 0.437 in | Polypropylene (PP) Metallized | 250 V | Automotive DV/DT High Pulse | Radial | 0.197 " | 0.709 in | 18 mm | PC Pins | AEC-Q200 | 11.1 mm | 5 mm | 29 mOhms | ||||
KEMET | ||||||||||||||||||||||||
KEMET | ||||||||||||||||||||||||
KEMET | ||||||||||||||||||||||||
KEMET |
