C091 11D003 Series

Catalog

CONN PLUG HSG FMALE 3POS INLINE

Part	Shielding	Mounting Type	Insert Material	Shell Size - Insert	Shell Material	Contact Type	Includes	Connector Type	Shell Finish	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Size	Orientation	Housing Color	Material Flammability Rating	Features	Ingress Protection	Note	Contact Shape

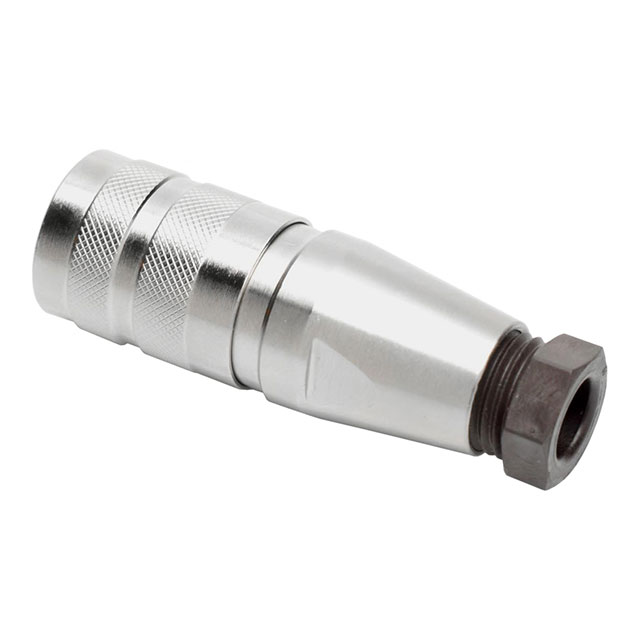

Amphenol Tuchel Industrial C091 11D003 000 2	Shielded	Free Hanging (In-Line)	Thermoplastic	M16-3	Die Cast	Crimp	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers	Plug Housing	Nickel	Threaded	-40 C	100 °C	For Female Sockets	1.5 mm	Keyed	Silver	UL94 V-0	Backshell Cable Clamp Coupling Nut	IP65 IP67 IP69K	Contacts Not Included	Circular
Amphenol Tuchel Industrial C091 11D003 001 2	Shielded	Free Hanging (In-Line)	Thermoplastic	M16-3	Die Cast	Crimp	1 Backshell 1 Cable Nut 1 Connector 1 Gasket 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers	Plug Housing	Nickel	Threaded	-40 C	100 °C	For Female Sockets	1.5 mm	Keyed	Silver	UL94 V-0	Backshell Cable Clamp Coupling Nut	IP65 IP67 IP69K	Contacts Not Included	Circular
