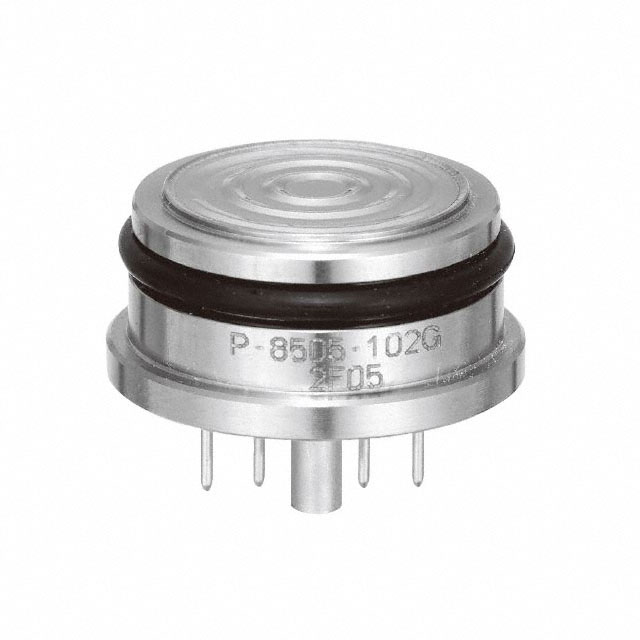

P-8505 Series

Catalog

SENSOR 14.5PSIG .09V SIP

Part	Mounting Type	Operating Pressure	Operating Pressure	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Output Type	Output [Max]	Termination Style	Port Style	Supplier Device Package	Features	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure	Maximum Pressure
Nidec Components Corporation P-8505-102G	Through Hole	100 kPa	14.5 PSI	Gauge	-20 C	70 °C	Board Mount	Analog Voltage	90 mV	PC Pin	No Port	SIP	Temperature Compensated	5-SIP Module	200 kPa	29.01 PSI
Nidec Components Corporation P-8505-501G	Through Hole	50 kPa	7.25 PSI	Gauge	-20 C	70 °C	Board Mount	Analog Voltage	90 mV	PC Pin	No Port	SIP	Temperature Compensated	5-SIP Module	100 kPa	14.5 PSI
Nidec Components Corporation P-8505-352G	Through Hole	350 kPa	50.76 PSI	Gauge	-20 C	70 °C	Board Mount	Analog Voltage	90 mV	PC Pin	No Port	SIP	Temperature Compensated	5-SIP Module			700 kPa	101.53 PSI
Nidec Components Corporation P-8505-103G	Through Hole	10 bar	145.04 PSI	Gauge	-20 C	70 °C	Board Mount	Analog Voltage	90 mV	PC Pin	No Port	SIP	Temperature Compensated	5-SIP Module	2000 kPa	290.08 PSI
