052808 Series

Manufacturer: Molex

Catalog

1.0 FFC NON ZIF HSGASSY20CKTW/TP

Part	Number of Positions	Height Above Board	Height Above Board	Connector/Contact Type	Flat Flex Type	Pitch [x]	Pitch [x]	Termination	Voltage Rating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Housing Material	Housing Color	Cable End Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish	Mounting Type	FFC, FCB Thickness	Cable End Type [custom]
Molex 0528082073	50	0.201 in	5.1 mm	Contacts Vertical - 1 Sided	FFC FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	80 C	Phosphor Bronze	Thermoplastic	Natural	Straight Tapered	0.5 A	UL94 V-0	Gold	Surface Mount	0.3 mm

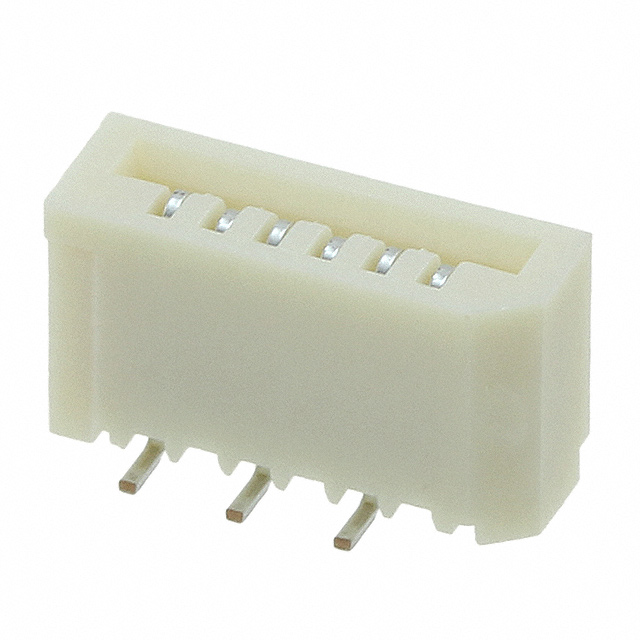

Molex 0528080670	6	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin Bismuth	Surface Mount	0.3 mm

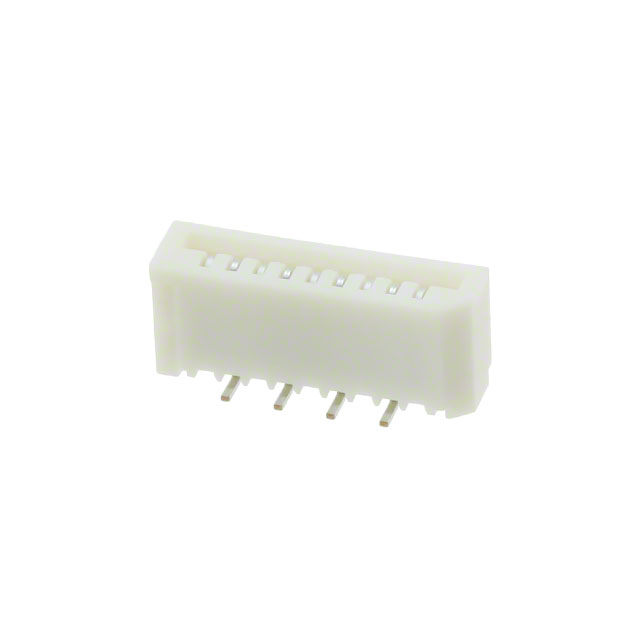

Molex 0528080971	9	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FFC FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin Bismuth	Surface Mount	0.3 mm
Molex 0528083072	30	0.201 in	5.1 mm	Contacts Vertical - 1 Sided	FFC FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	80 C	Phosphor Bronze	Thermoplastic	Natural		0.5 A	UL94 V-0	Gold	Surface Mount	0.3 mm	Straight Tabbed
Molex 0528081472

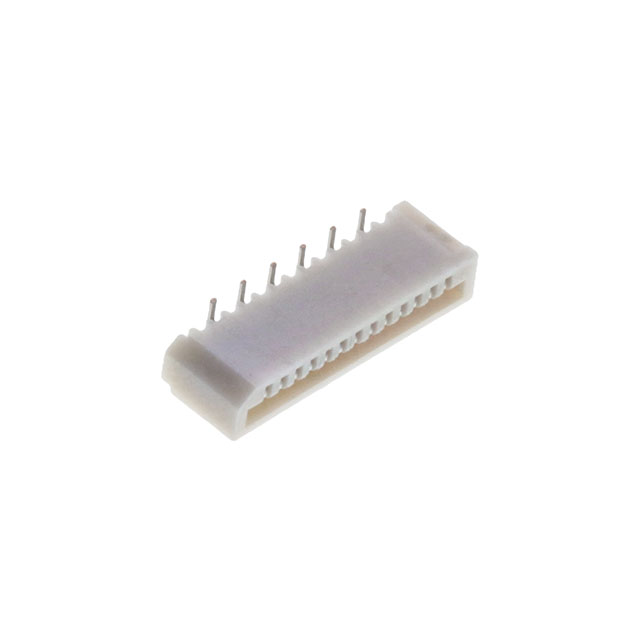

Molex 0528081370	13	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin Bismuth	Surface Mount	0.3 mm
Molex 0528080471	4	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FFC FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin Bismuth	Surface Mount	0.3 mm

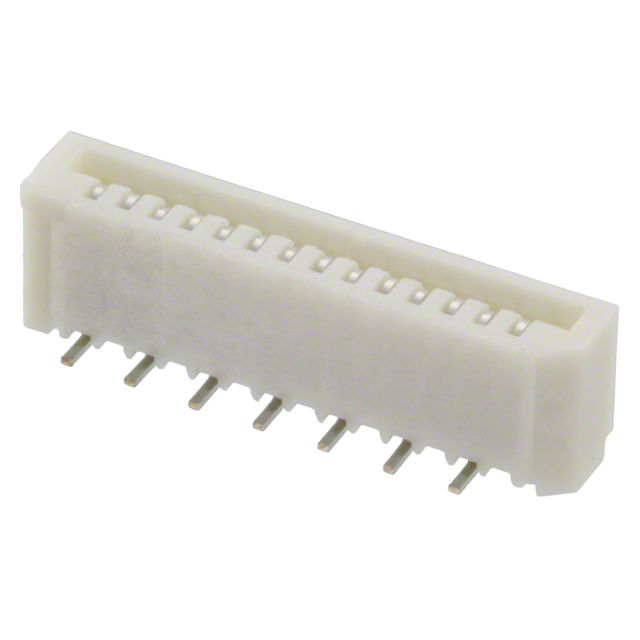

Molex 0528081471	14	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FFC FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin Bismuth	Surface Mount	0.3 mm
Molex 0528082690	26	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin-Lead	Surface Mount	0.3 mm

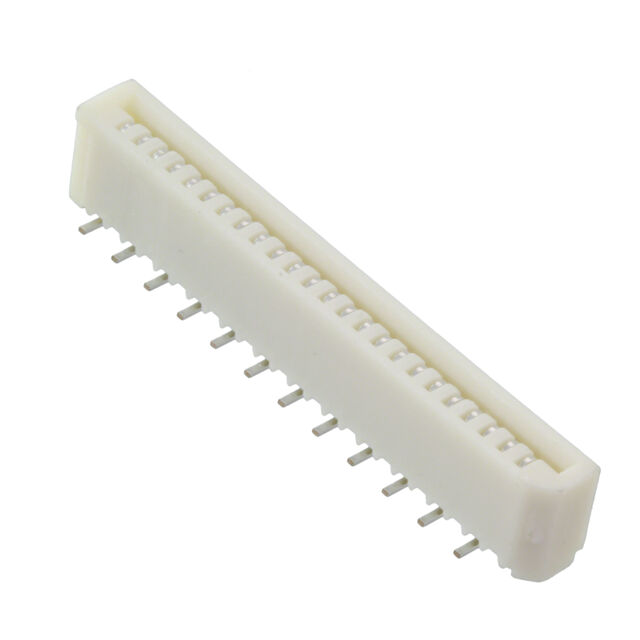

Molex 0528082470	24	0.199 in	5.05 mm	Contacts Vertical - 1 Sided	FPC	0.039 in	1 mm	Solder	125 VDC	10	-20 C	85 °C	Phosphor Bronze			Straight	0.5 A	UL94 V-0	Tin Bismuth	Surface Mount	0.3 mm
