PTFIX Series

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

Manufacturer: Phoenix Contact

Catalog

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

Catalog

DIN Rail Terminal Blocks PTFIX 18X1,5-NS15AVT 1.5 mm2 DIN RAIL MN

...

Part	Material Flammability Rating	Material - Insulation	Height (Max) [z]	Height (Max) [z]	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Stripping Length	Housing Color	Features	Termination Style	Number of Positions	Terminal - Width [y]	Current - IEC	Mounting Type	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - IEC	Voltage - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Current - UL	Stripping Length [Min]	Stripping Length [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Length [x]	Height (Max) [Max] [diameter]	Height (Max) [Max] [diameter]
Phoenix Contact 3002922	UL94 V-0	Nylon Polyamide (PA)	1.079 in	27.4 mm	0.85 in	21.6 mm	-60 °C	130 °C	10 mm	Blue	Block of 6	Push In Spring	12	24.9 mm	17.5 A	DIN Rail	Middle	26 AWG	14 AWG	450 V	300 V	1.5 mm²	0.14 mm²	1
Phoenix Contact 3273840										Yellow	Block of 9	Push In Spring	18	55.4 mm	32 A	Direct Mount	Middle	24 AWG	10 AWG	630 V		6 mm²	0.2 mm²	1	32 A

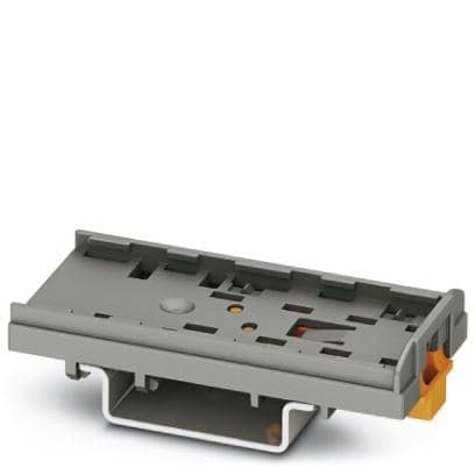

Phoenix Contact 3273554										Yellow	Block of 6	Push In Spring	12	28.6 mm	32 A	DIN Rail	Middle	24 AWG	10 AWG	800 V		6 mm²	0.2 mm²	1	32 A

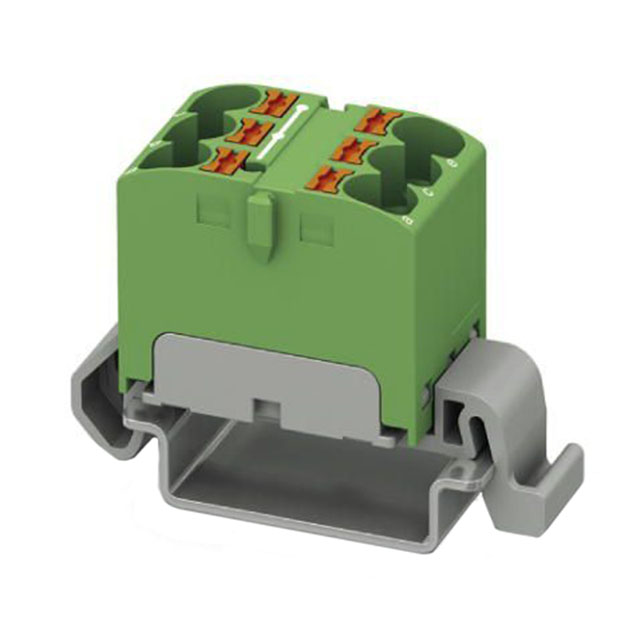

Phoenix Contact 3273666	UL94 V-0	Nylon Polyamide (PA)				45.7 mm	-60 °C	130 °C		Green	Block of 3	Push In Spring	6	18.5 mm	32 A	DIN Rail	Middle	24 AWG	10 AWG	800 V		6 mm²	0.2 mm²	1	32 A	10 mm	12 mm	1.217 in	30.9 mm	1.799 in
Phoenix Contact 3273832										Black Yellow	Block of 6	Push In Spring	12	36.9 mm	32 A	Direct Mount	Middle	24 AWG	10 AWG	630 V		6 mm²	0.2 mm²	1	32 A

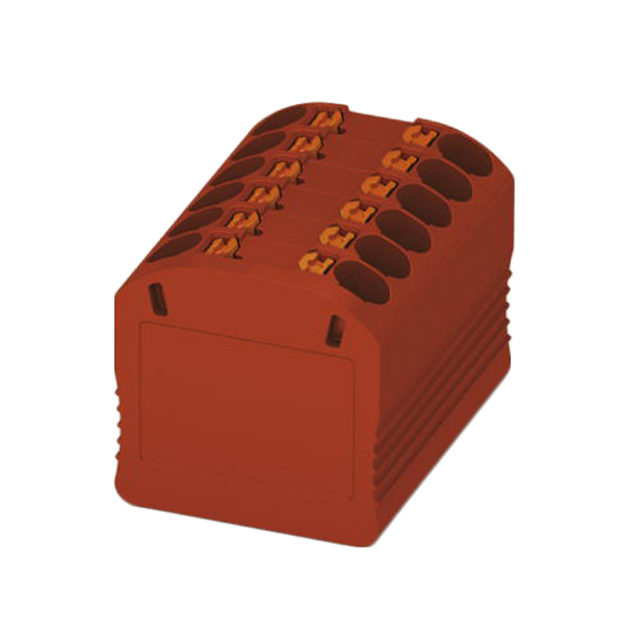

Phoenix Contact 3002878	UL94 V-0	Nylon Polyamide (PA)	0.736 in	18.7 mm	0.85 in	21.6 mm	-60 °C	130 °C	10 mm	Red	Block of 6	Push In Spring	12	24.9 mm	17.5 A	Direct Mount	Middle	26 AWG	14 AWG	450 V	300 V	1.5 mm²	0.14 mm²	1
Phoenix Contact 3273360										Green	Block of 6	Push In Spring	13	40.6 mm	24 A	Direct Mount	Middle	20 AWG	8 AWG	500 V				1	5 A

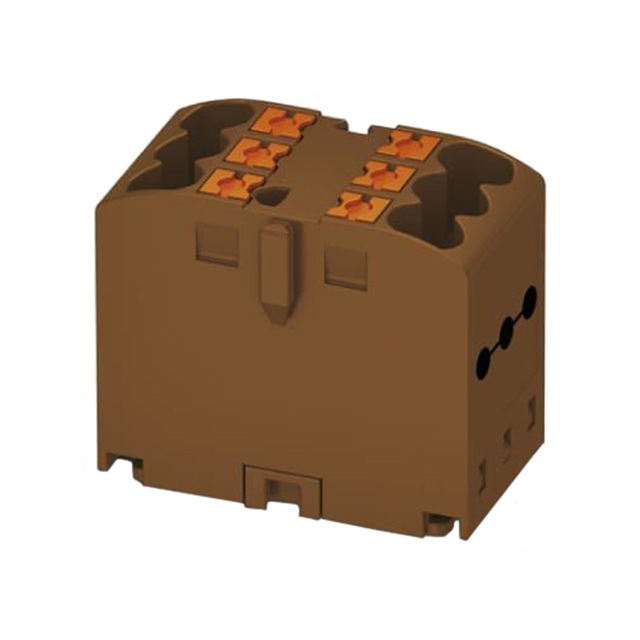

Phoenix Contact 3273274	UL94 V-0	Nylon Polyamide (PA)			1.11 in	28.19 mm			10 mm	Brown	Block of 3	Push In Spring	6	15.6 mm	24 A	Direct Mount	Middle	26 AWG	12 AWG	500 V		4 mm²	0.14 mm²	1	5 A						21.2 mm	0.835 in
Phoenix Contact 3273696										Violet	Block of 6	Push In Spring	12	36.9 mm	32 A	DIN Rail	Middle	24 AWG	10 AWG	800 V		6 mm²	0.2 mm²	1	32 A
Phoenix Contact 3273068										Blue	Block of 3	Push In Spring	7	28.6 mm	24 A	DIN Rail	Middle	20 AWG	8 AWG	500 V				1	5 A
