MLVC22 Series

Varistors 42VDC 160PF

Manufacturer: Eaton - Electronics Division

Catalog

Varistors 42VDC 160PF

Catalog

Varistors 42VDC 160PF

Part	Energy	Varistor Voltage (Typ)	Number of Circuits	Package / Case	Package / Case	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Surge	Mounting Type	Maximum DC Volts [Max]	Varistor Voltage (Max) [Max]	Capacitance @ Frequency	Maximum DC Volts
Eaton - Electronics Division MLVC22V026C2500	2.5 J	36 V	1	2220	5750 Metric	18.4 V	32.4 V	125 °C	-55 °C	600 A	MLCV Surface Mount	26 V	39.6 V

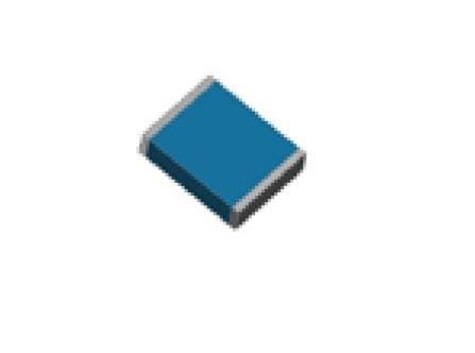

Eaton - Electronics Division MLVC22V024C3000	2.5 J	33 V	1	2220	5750 Metric	17 V	29.7 V	125 °C	-55 °C	600 A	MLCV Surface Mount	24 V	36.3 V	3000 pF
Eaton - Electronics Division MLVC22V033C2000	2.5 J	45 V	1	2220	5750 Metric	23.3 V	40.5 V	125 °C	-55 °C	600 A	MLCV Surface Mount	33 V	49.5 V	1 MHz 2000 pF
Eaton - Electronics Division MLVC22V018C4000	2.5 J	25 V	1	2220	5750 Metric	12.7 V	22.5 V	125 °C	-55 °C	600 A	MLCV Surface Mount	18 V	27.5 V	4000 pF
Eaton - Electronics Division MLVC22V022C3500	2.5 J	30 V	1	2220	5750 Metric	15.6 V	27 V	125 °C	-55 °C	600 A	MLCV Surface Mount	22 V	33 V	1 MHz 3500 pF
Eaton - Electronics Division MLVC22V056C1000	2.5 J	72 V	1	2220	5750 Metric	40 V	64.8 V	125 °C	-55 °C	600 A	MLCV Surface Mount	56 V	79.2 V	1000 pF
Eaton - Electronics Division MLVC22V042C1600	2.5 J	56 V	1	2220	5750 Metric	30 V	50.4 V	125 °C	-55 °C	600 A	MLCV Surface Mount	42 V	61.6 V	1 MHz 1600 pF
Eaton - Electronics Division MLVC22V060C800	2.5 J	76 V	1	2220	5750 Metric	45 V	68.4 V	125 °C	-55 °C	600 A	MLCV Surface Mount	60 V	83.6 V	800 pF
Eaton - Electronics Division MLVC22V048C1400	2.5 J	62 V	1	2220	5750 Metric	34 V	55.8 V	125 °C	-55 °C	600 A	MLCV Surface Mount	48 V	68.2 V	1400 pF
Eaton - Electronics Division MLVC22V038C1800	2.5 J	51 V	1	2220	5750 Metric	27 V	45.9 V	125 °C	-55 °C	600 A	MLCV Surface Mount		56.1 V	1800 pF	38 V
