CPGI Series

Catalog

CPGI-1546310-6

Part	Mounting Type	Bottom Termination	Top Termination	Features	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Pitch	Pitch	Number of Rows [custom]	Terminal Block Type	Number of Wire Entries	Color	Termination	Terminal Type	Kit Type	Values	Values [Max]	Values [Min]	Insulation
TE Energy & Utilities CPGI-1546310-6	Chassis Panel	Closed	Screws	Flange	2 Wall (Dual)	10 AWG	30 AWG	6	14.3 mm	0.563 "	2	Barrier Block	12	Black

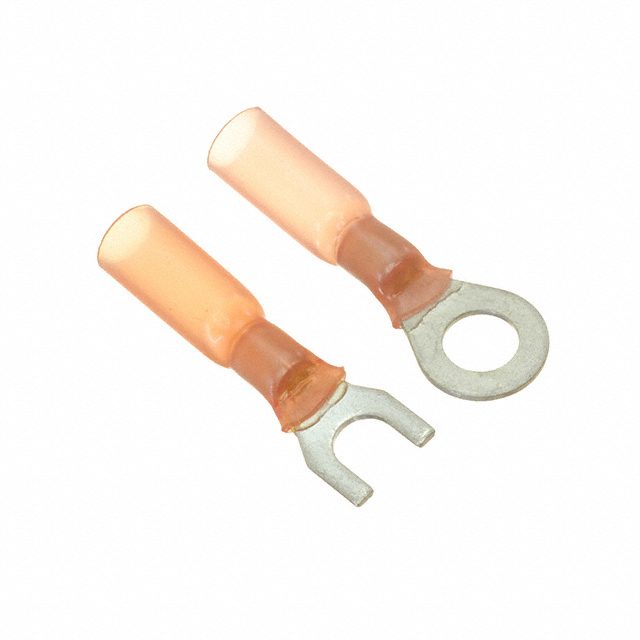

TE Energy & Utilities CPGI-B-106-2401/1501-6	Free Hanging (In-Line)					14 AWG	16 AWG								Crimp	Standard

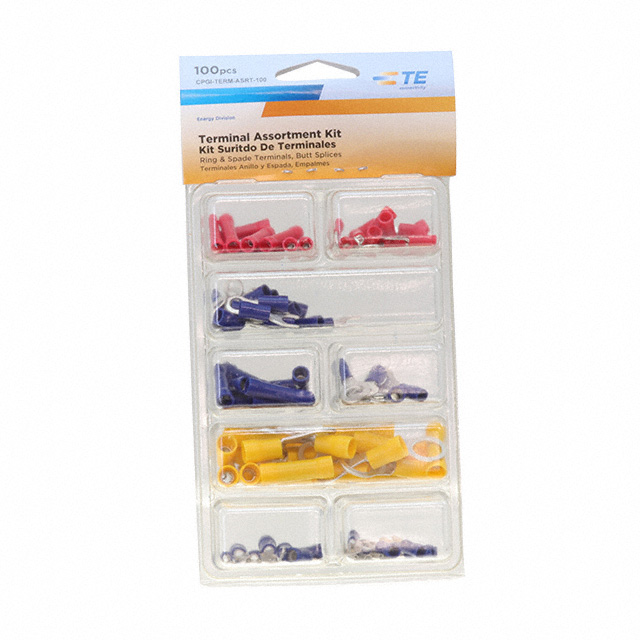

TE Energy & Utilities CPGI-TERM-ASRT-100																	Butt Splice Ring and Spade Terminals	100 pcs	10 AWG	22 AWG

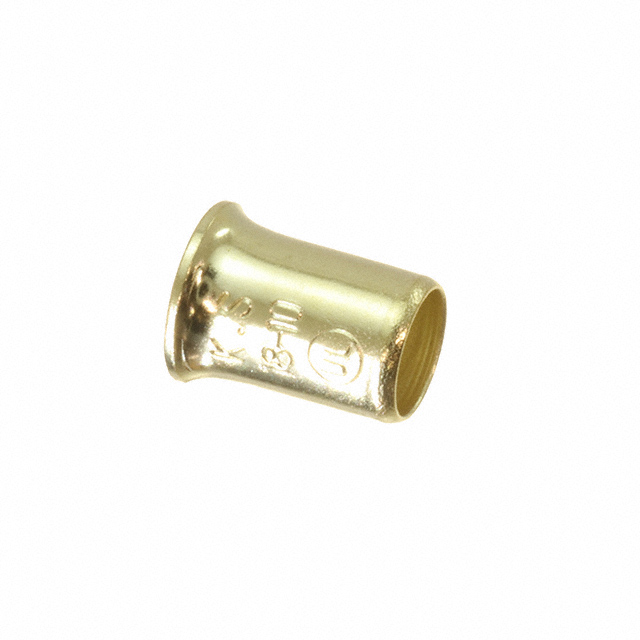

TE Energy & Utilities CPGI-CCS-18-10-S-12																					Non-Insulated

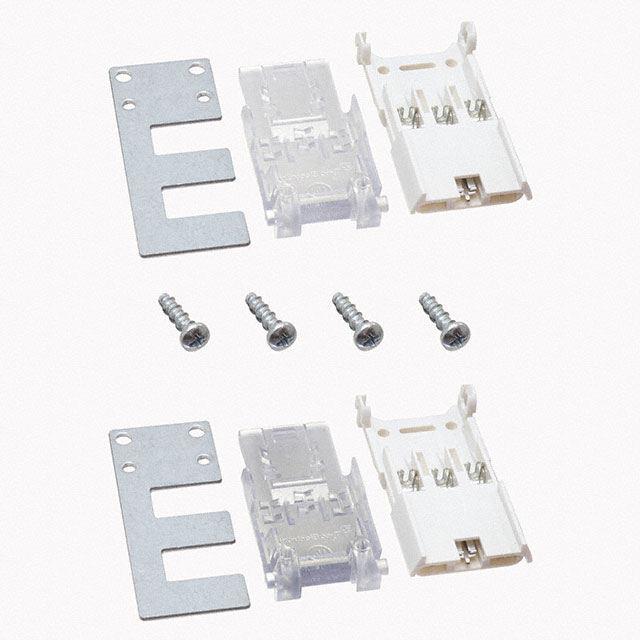

TE Energy & Utilities CPGI-1116377-2						12 AWG	14 AWG						2		Crimp	Inline Tap					Fully Insulated

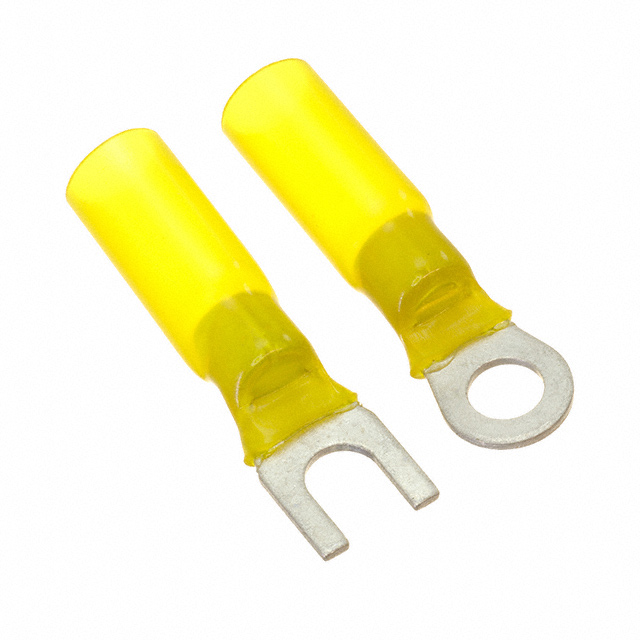

TE Energy & Utilities CPGI-B-106-2503/1503-5	Free Hanging (In-Line)					10 AWG	12 AWG								Crimp	Standard

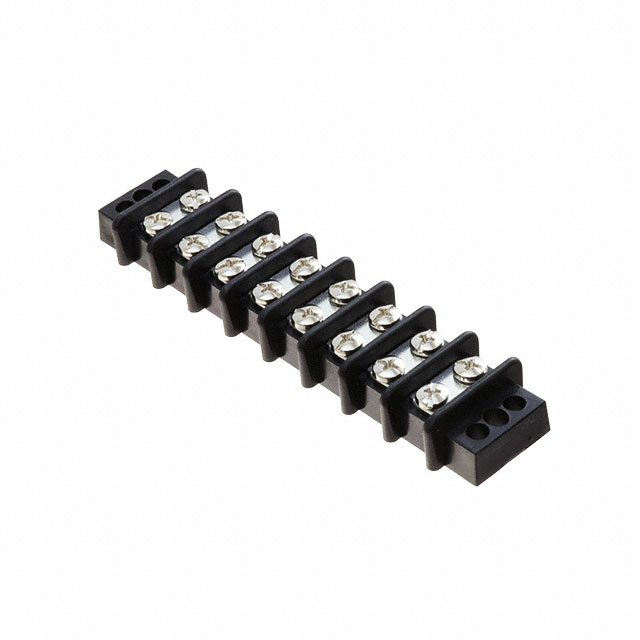

TE Energy & Utilities CPGI-1546310-8	Chassis Panel	Closed	Screws	Flange	2 Wall (Dual)	10 AWG	30 AWG	8	14.3 mm	0.563 "	2	Barrier Block	16	Black
