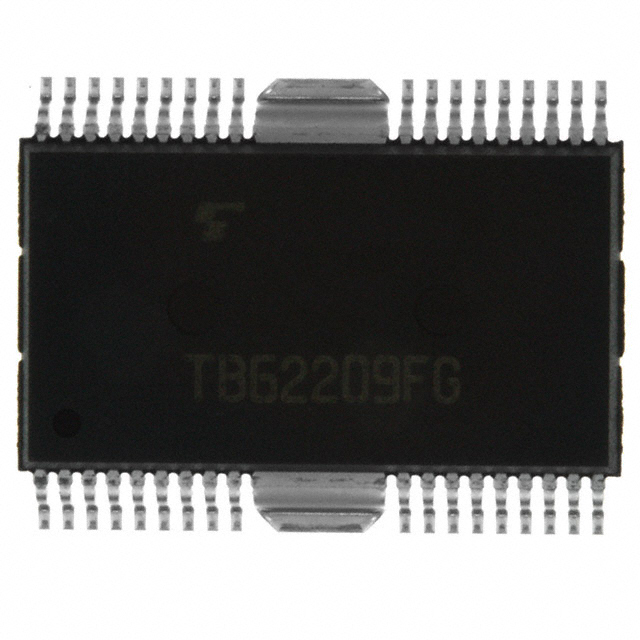

TB62209 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K
IC MTR DRV BIPLR 4.5-5.5V 36HSOP
| Part | Interface | Supplier Device Package | Output Configuration | Step Resolution | Package / Case | Package / Case | Package / Case | Function | Voltage - Load [Max] | Voltage - Load [Min] | Motor Type - Stepper | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Current - Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | Parallel | 36-HSOP | Half Bridge (4) | 1 1/16 1/2 1/4 1/8 | 2 Heat Tabs 36-BSSOP | 0.346 in | 8.8 mm | Driver - Fully Integrated Control and Power Stage | 34 V | 13 V | Bipolar | -40 °C | 150 °C | General Purpose | 1.5 A | 5.5 V | 4.5 V | DMOS | Surface Mount |
