861400042 Series

Catalog

CONN HDR 4POS 0.100" STACK TH

Part	Mounting Type	Number of Rows	Number of Positions	Termination	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Connector Type	Voltage Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Style	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Contact Finish - Post
Amphenol ICC (FCI) 861400042YD10776LF	Through Hole	2	4	Kinked Pin Solder	0.1 in	2.54 mm	2.54 mm	0.1 in

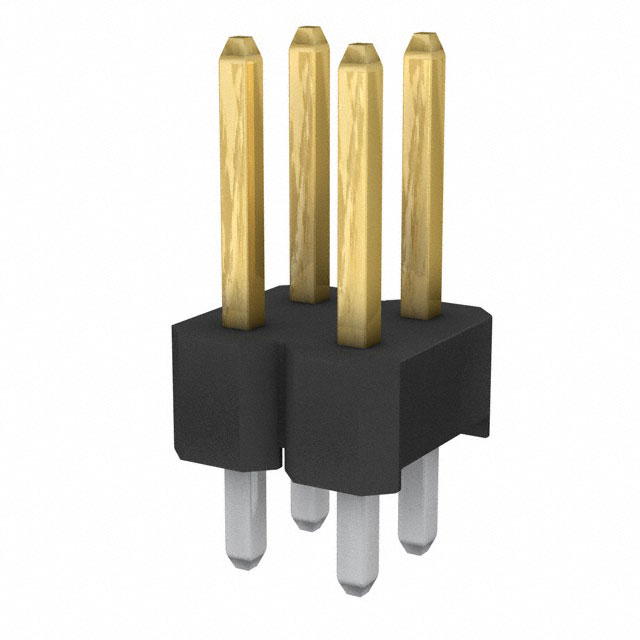

Amphenol ICC (FCI) 861400042YO2319	Through Hole	2	4	Solder					Thermoplastic	Male Pin	2.54 mm	0.1 in	Square	11.9 mm	0.469 in	3 A	-55 °C	125 °C	Unshrouded	0.1 in	2.54 mm	Gold or Gold GXT™	Breakaway Header	1000 VDC	Push-Pull	0.203 Ám	8 Áin	Copper Alloy	Board to Board Cable	0.228 in	5.8 mm	UL94 V-0	3.46 mm	0.136 "	0.102 in	2.6 mm	All

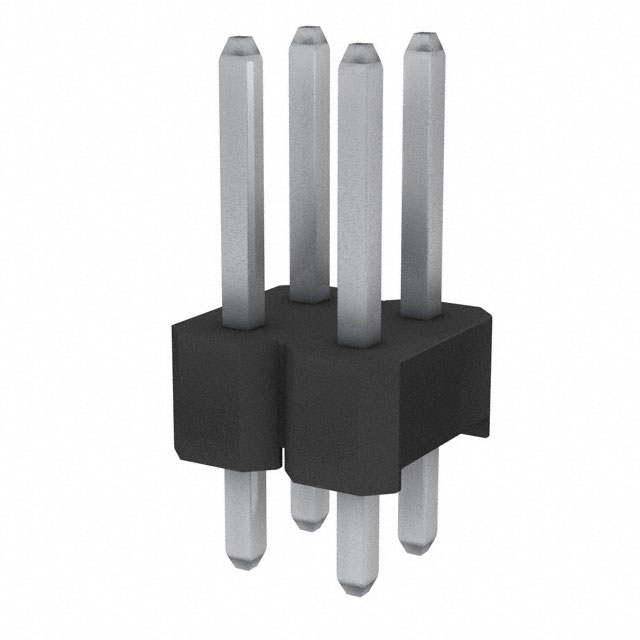

Amphenol ICC (FCI) 861400042YO1LF	Through Hole	2	4	Solder					Thermoplastic	Male Pin	2.54 mm	0.1 in	Square	12.6 mm	0.496 in	3 A	-40 °C	100 °C	Unshrouded	0.1 in	2.54 mm		Breakaway Header	500 VAC	Push-Pull			Copper Alloy	Board to Board Cable	0.276 in	7 mm	UL94 V-0	3 mm	0.118 in	0.102 in	2.6 mm	All	Tin
