32K407 Series
Manufacturer: Rosenberger
Beta
⌘K
SMA PANEL JACK
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Center Contact Plating | Voltage Rating | Body Material | Cable Group | Connector Style | Fastening Type | Frequency - Max [Max] | Number of Ports | Impedance | Center Contact Material | Contact Termination | Shield Termination | Connector Type | Mounting Type | Mounting Feature | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

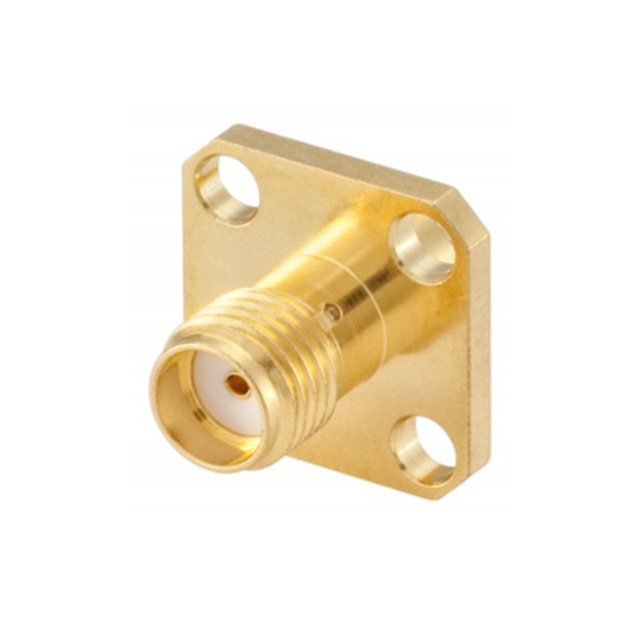

 Rosenberger | Gold | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | Gold | 480 V | Beryllium Copper | RG-316 | SMA | Threaded | 12.4 GHz | 1 | 50 Ohms | Beryllium Copper | Solder | Solder | Female Socket Jack | Panel Mount | Flange | Gold |

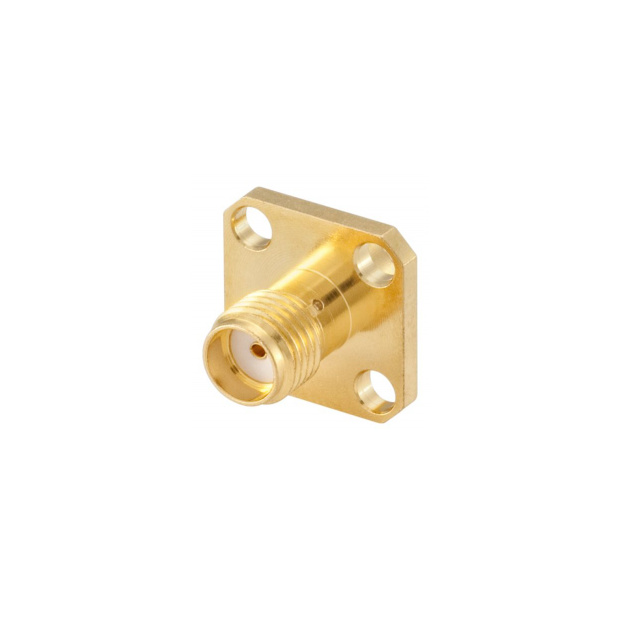

 Rosenberger | Gold | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | Gold | 480 V | Beryllium Copper | 188A 316 RG-174A | SMA | Threaded | 12.4 GHz | 1 | 50 Ohms | Beryllium Copper | Solder | Solder | Female Socket Jack | Panel Mount | Flange | Gold |
