9003-9213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

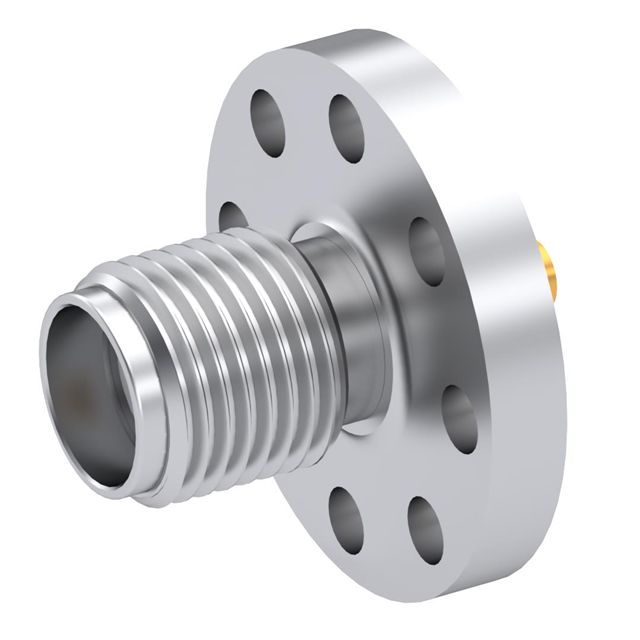

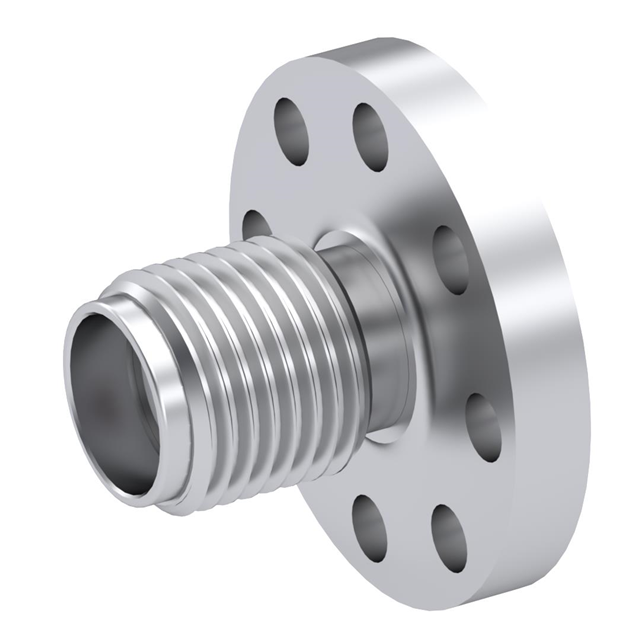

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Dielectric Material | Impedance | Fastening Type | Center Contact Material | Shield Termination | Contact Termination | Mounting Feature | Connector Type | Mounting Type | Housing Color | Frequency - Max [Max] | Number of Ports | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 50 Ohms | Threaded | Beryllium Copper | Screw | Solder | Flange | Female Socket Jack | Panel Mount | Silver | 18 GHz | 1 | SMA |
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 50 Ohms | Threaded | Beryllium Copper | Screw | Solder | Flange | Female Socket Jack | Panel Mount | Silver | 18 GHz | 1 | SMA |
