BB25AV Series

Catalog

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Part	Electrical Life	Mechanical Life	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Actuator Type	Type	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Switch Function	Termination Style	Voltage Rating - AC

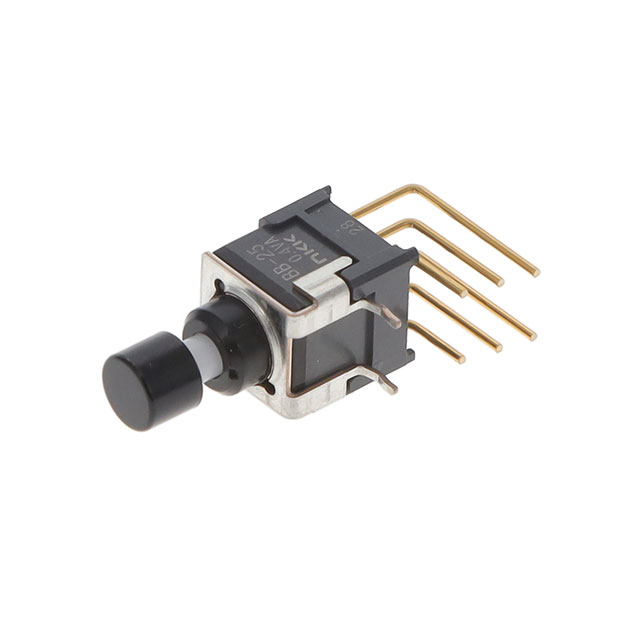

NKK Switches BB25AV-HA	50000 Cycles	50000 Cycles	DPDT	85 °C	-30 ░C	Right Angle Through Hole Vertical	Antistatic	Button Round	Standard	28 V	0.4 VA	No Marking	Black	On-Mom	PC Pin	28 V
NKK Switches BB25AV-FB	50000 Cycles	50000 Cycles	DPDT	85 °C	-30 ░C	Right Angle Through Hole Vertical	Antistatic	Button Round	Standard	28 V	0.4 VA	No Marking	White	On-Mom	PC Pin	28 V
NKK Switches BB25AV-FA	50000 Cycles	50000 Cycles	DPDT	85 °C	-30 ░C	Right Angle Through Hole Vertical	Antistatic	Button Round	Standard	28 V	0.4 VA	No Marking	Black	On-Mom	PC Pin	28 V
NKK Switches BB25AV-FC	50000 Cycles	50000 Cycles	DPDT	85 °C	-30 ░C	Right Angle Through Hole Vertical	Antistatic	Button Round	Standard	28 V	0.4 VA	No Marking	Red	On-Mom	PC Pin	28 V
