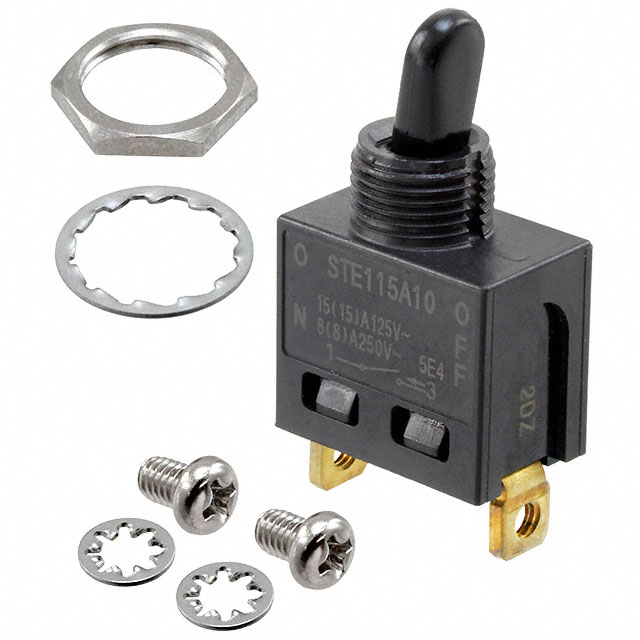

STE115 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE SPST 15A 125V
| Part | Electrical Life | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Termination Style | Mounting Type | Illumination | Circuit | Bushing Thread | Ingress Protection | Actuator Type | Switch Function | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | 15 A | 12.5 mm | 125 V | Screw Terminal | Panel Mount | Non-Illuminated | SPST | M12 x 1 | Dust Proof | Flatted | On-Off | 12 mm | 70 °C | -15 °C |
 Nidec Components Corporation | 50000 Cycles | 15 A | 12.5 mm | 125 V | Screw Terminal | Panel Mount | Non-Illuminated | SPDT | M12 x 1 | Dust Proof | Flatted | On-On | 12 mm | 70 °C | -15 °C |
