PM20206HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

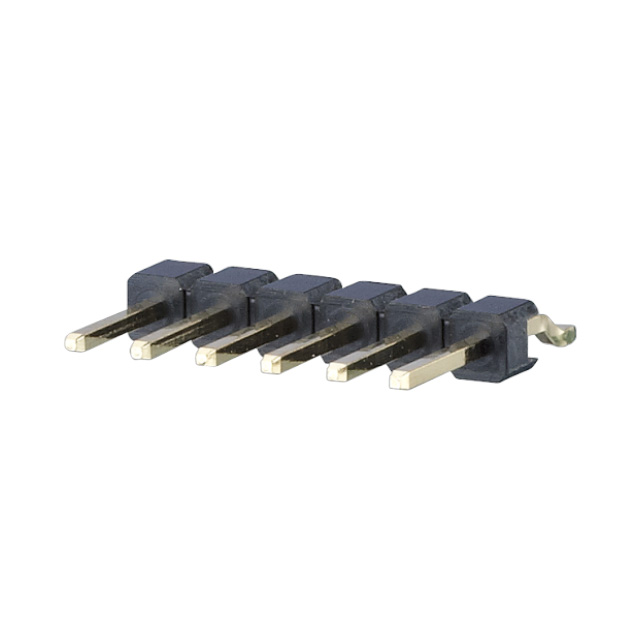

PIN HEADER, SMT, SINGLE ROW, .10
| Part | Termination | Mounting Type | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Fastening Type | Number of Positions Loaded | Contact Material | Insulation Color | Connector Type | Insulation Material | Insulation Height | Insulation Height | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Type | Contact Shape | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Solder | Right Angle Surface Mount | 1 | 3 mm | 0.118 in | Flash | Gold | Push-Pull | All | Copper Alloy | Black | Header | Polyethylene | 0.098 " | 2.5 mm | Unshrouded | -40 C | 105 ░C | 6 | Male Pin | Square | 0.1 " | 2.54 mm |
