BH010 Series
Manufacturer: GCT
Beta
⌘K

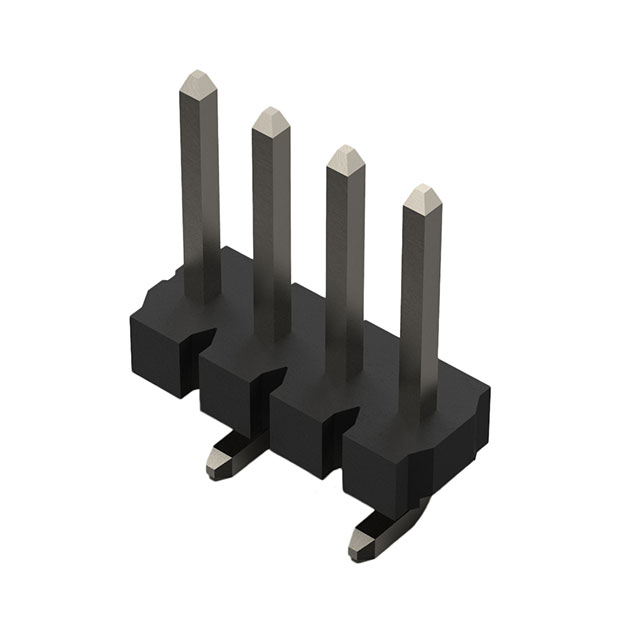

CONN HEADER SMD 4POS 3.96MM
| Part | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Shape | Connector Type | Contact Material | Features | Current Rating (Amps) | Termination | Fastening Type | Material Flammability Rating | Shrouding | Contact Type | Mounting Type | Insulation Color | Contact Finish - Post | Insulation Material | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Number of Positions | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
All | -40 C | 105 ░C | 1 | Square | Header | Brass | Pick and Place | 7.9 A | Solder | Push-Pull | UL94 V-0 | Unshrouded | Male Pin | Surface Mount | Black | Tin | Liquid Crystal Polymer (LCP) | 0.335 in | 8.51 mm | 0.125 in | 3.18 mm | 4 | 3.96 mm | 0.156 in | |
All | -40 C | 105 ░C | 1 | Square | Header | Brass | Pick and Place | 7.9 A | Solder | Push-Pull | UL94 V-0 | Unshrouded | Male Pin | Surface Mount | Black | Tin | Liquid Crystal Polymer (LCP) | 0.335 in | 8.51 mm | 0.125 in | 3.18 mm | 12 | 3.96 mm | 0.156 in |
