TL3302 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Actuator Material	Mechanical Life	Outline [x]	Outline [y]	Switch Function	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical [z]	Features	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Termination Style	Mounting Type	Actuator Orientation

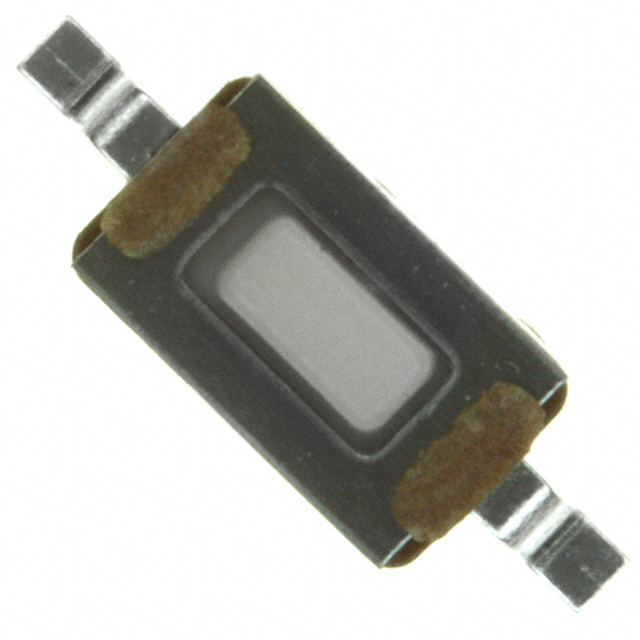

E-Switch TL3302AF260QG	0.25 mm	Polyphenylene Sulfide (PPS)	30000 Steps	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	260 gf	4.3 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	Gull Wing	Surface Mount	Top Actuated

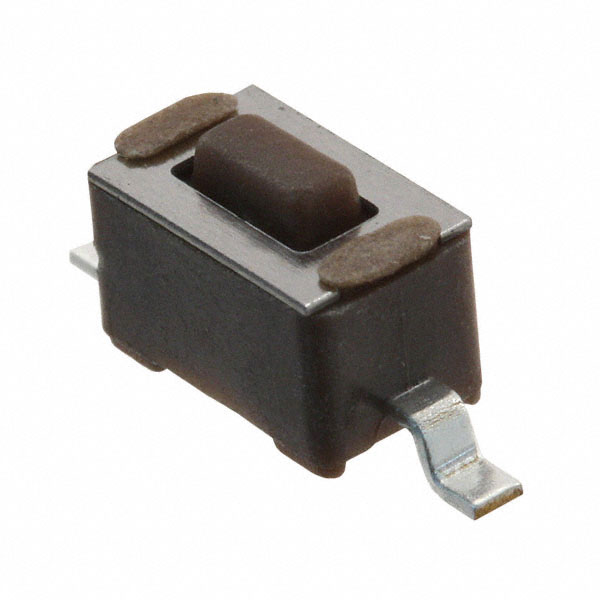

E-Switch TL3302AF130QG	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	130 gf	4.3 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	Gull Wing	Surface Mount	Top Actuated

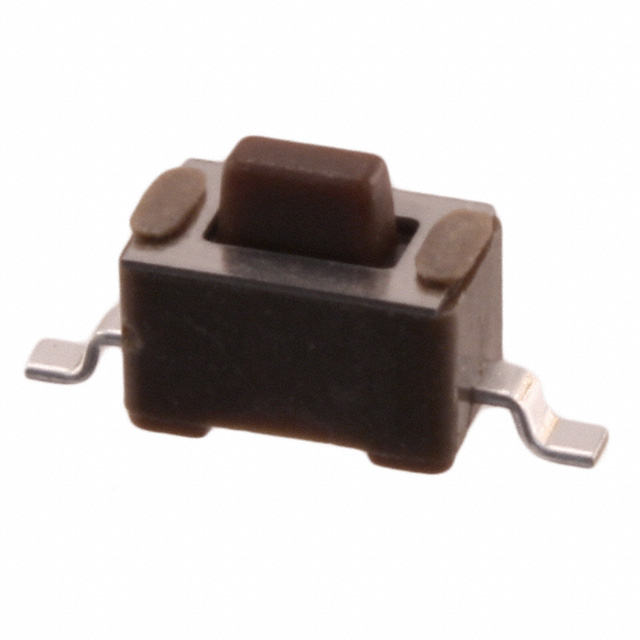

E-Switch TL3302BF130QG	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	130 gf	5 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	Gull Wing	Surface Mount	Top Actuated

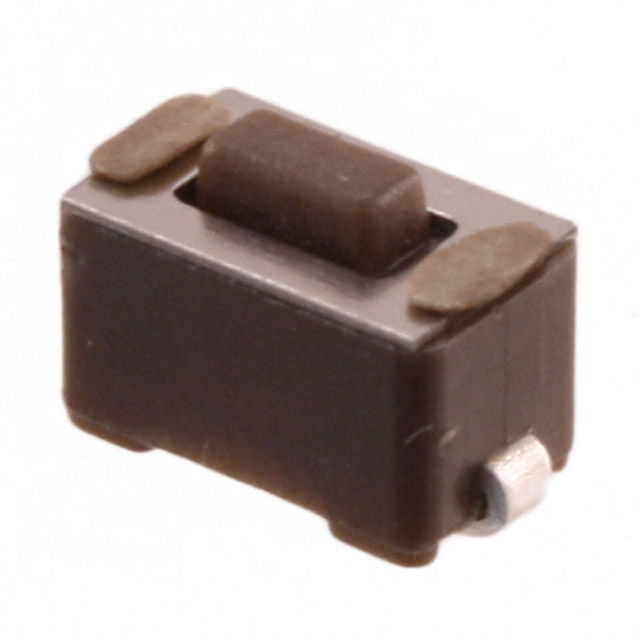

E-Switch TL3302AF130QJ	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	130 gf	4.3 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	J Lead	Surface Mount	Top Actuated

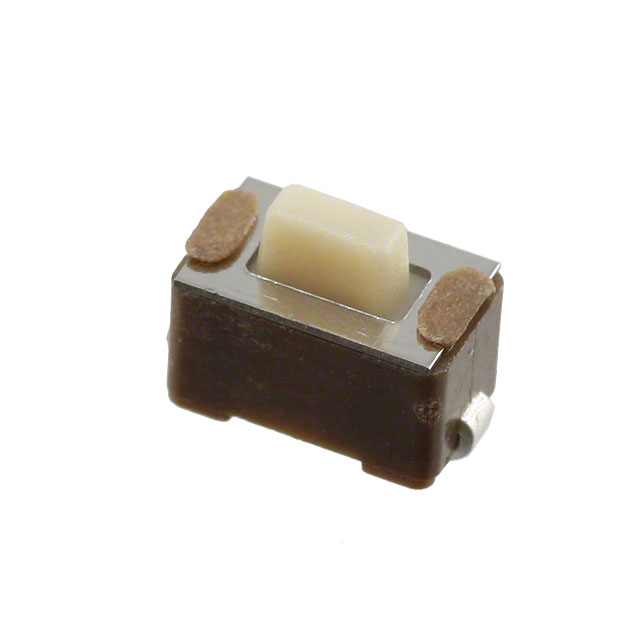

E-Switch TL3302BF260QJ	0.25 mm	Polyphenylene Sulfide (PPS)	30000 Steps	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	260 gf	5 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	J Lead	Surface Mount	Top Actuated

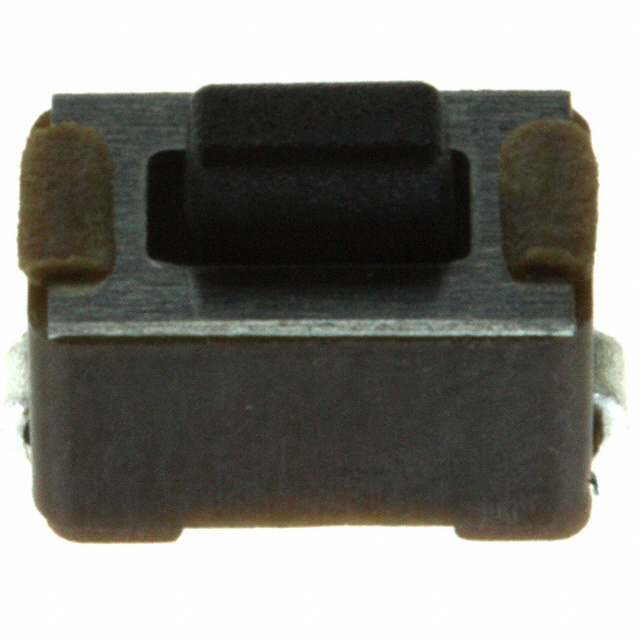

E-Switch TL3302BF180QJ	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	180 gf	5 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	J Lead	Surface Mount	Top Actuated

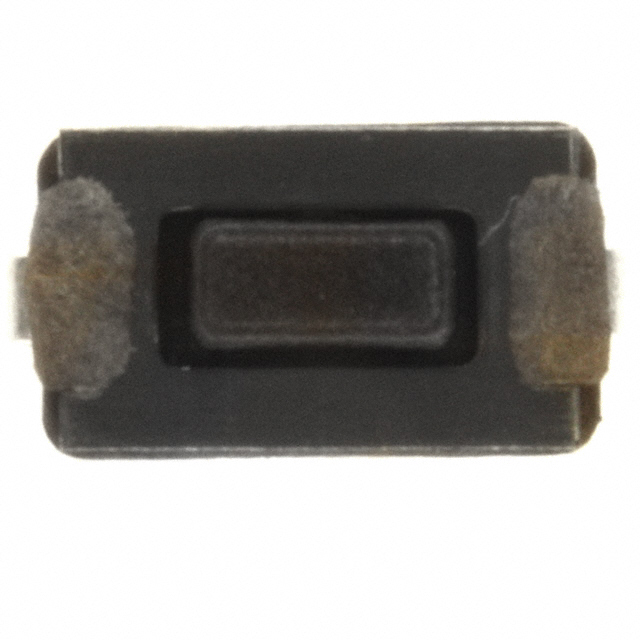

E-Switch TL3302BF130QJ	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	130 gf	5 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	J Lead	Surface Mount	Top Actuated

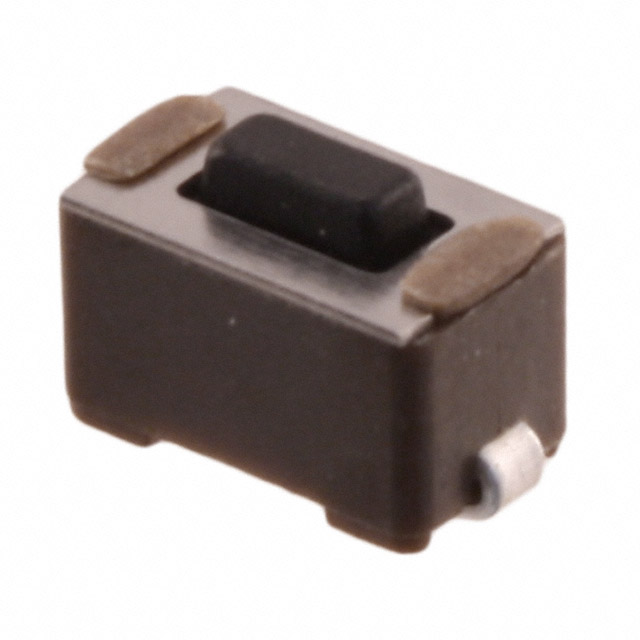

E-Switch TL3302AF180QJ	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	180 gf	4.3 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	J Lead	Surface Mount	Top Actuated

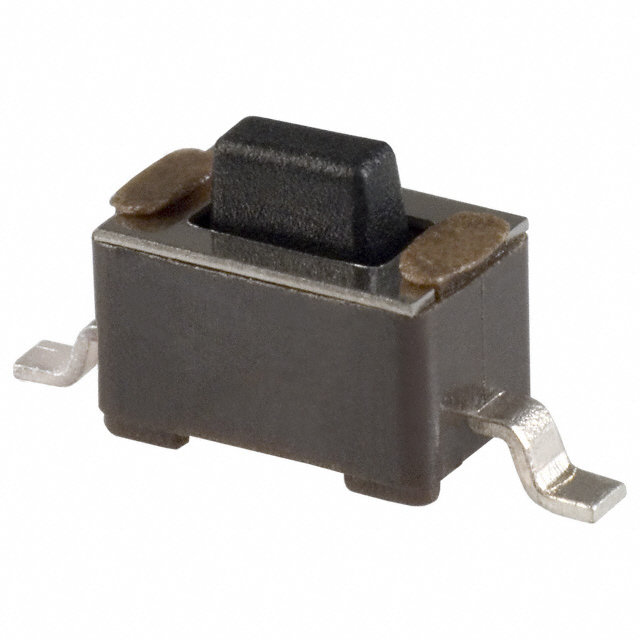

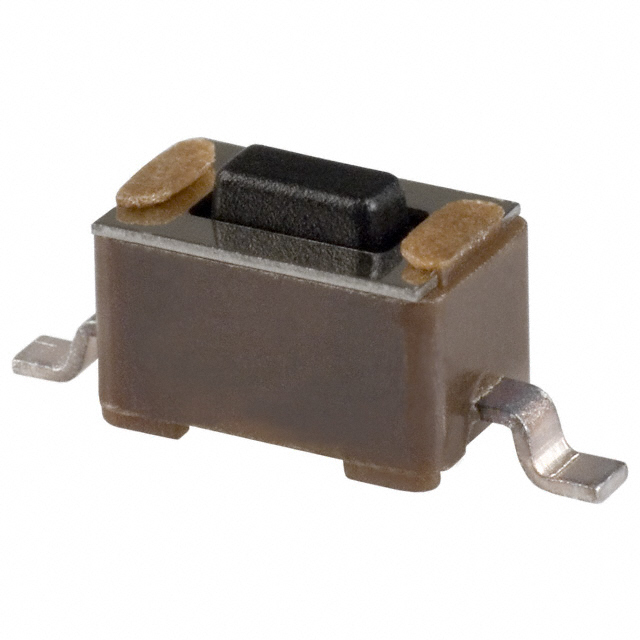

E-Switch TL3302BF180QG/TR	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	180 gf	5 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	Gull Wing	Surface Mount	Top Actuated
E-Switch TL3302AF180QG	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	6 mm	3.5 mm	Off-Mom	0.05 A 12 VDC	180 gf	4.3 mm	Tactile Feedback	Rectangular Button	SPST-NO	-20 ░C	70 °C	Non-Illuminated	Gull Wing	Surface Mount	Top Actuated
