NHD-0216 Series

Catalog

LCD MOD 32DIG 16X2 TRANSFLCT WHT

...

Part	Dot Size [x]	Dot Size [y]	Character Format [x]	Character Format [y]	Controller Type	Display Format [x]	Display Format [y]	Text Color	Number of Characters	Character Size [z]	Character Size [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Viewing Area [x]	Viewing Area [y]	Interface	Display Mode	Operating Temperature [Min]	Operating Temperature [Max]	Backlight	Background Color	Character Size [custom]	Character Size [custom]

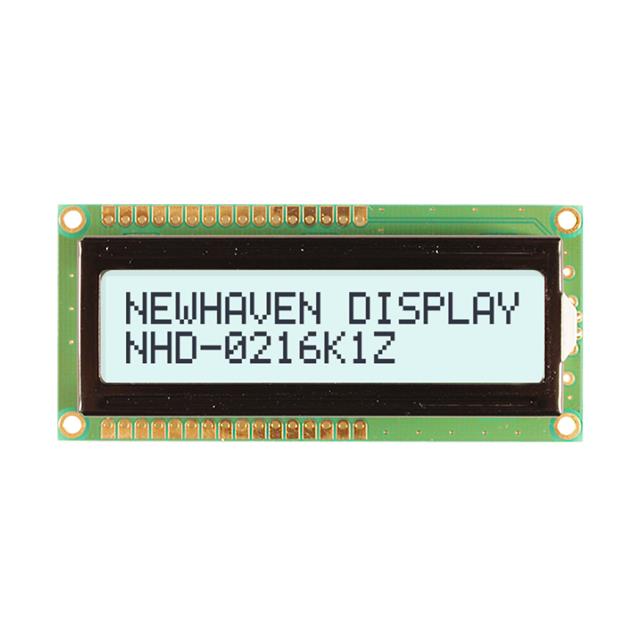

Newhaven Display Intl NHD-0216K1Z-FSW-FTW-FB1	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Black	32	5.23 mm	3 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C	LED - White	White

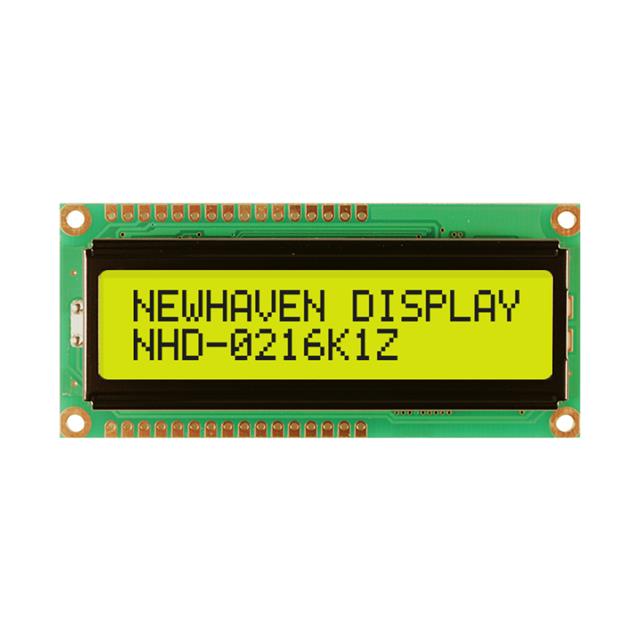

Newhaven Display Intl NHD-0216K1Z-FL-GBW	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Blue	32	5.23 mm	3 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C		Green

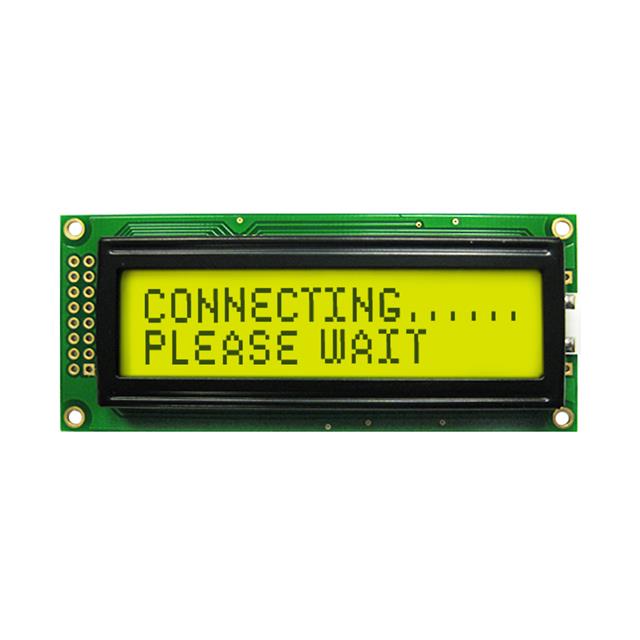

Newhaven Display Intl NHD-0216BZ-FL-YBW	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Blue	32	5.23 mm	3 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	13.5 mm	84 mm	44 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C		Green

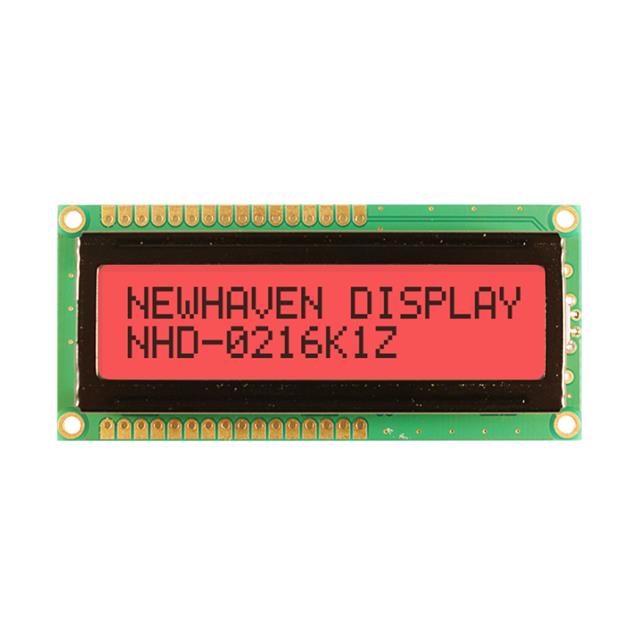

Newhaven Display Intl NHD-0216K1Z-FSR-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Black	32	5.23 mm	3 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C	LED - Red	Red

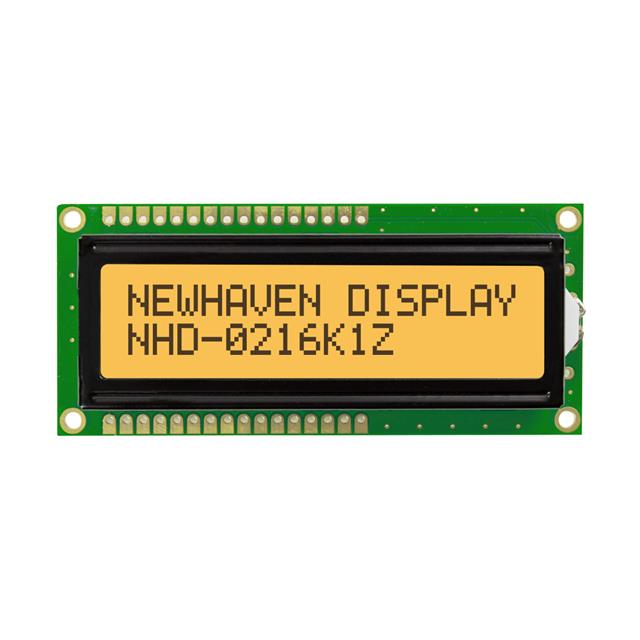

Newhaven Display Intl NHD-0216K1Z-FSA-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Black	32	5.23 mm	3 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C	LED - Amber	Amber

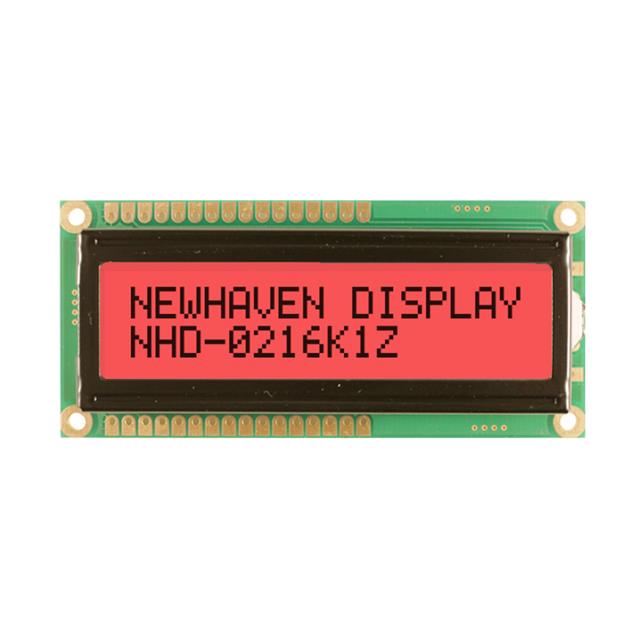

Newhaven Display Intl NHD-0216K1Z-FSR-GBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Blue	32	5.23 mm	3 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C	LED - Red	Red

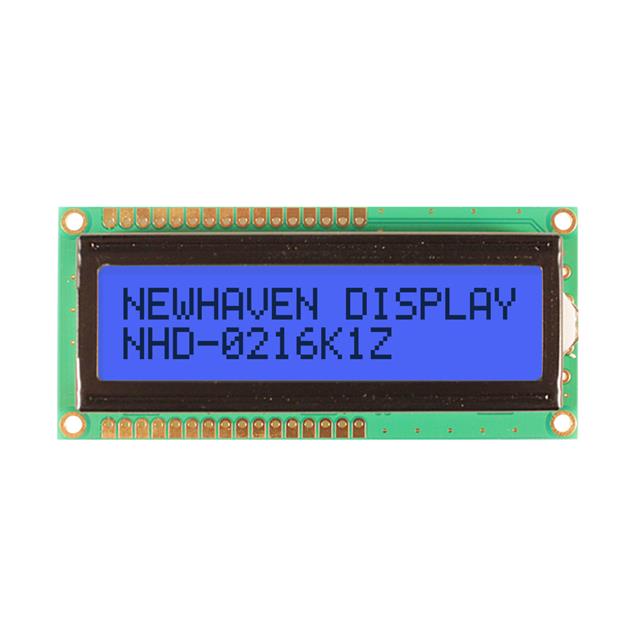

Newhaven Display Intl NHD-0216K1Z-FSB-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Black	32	5.23 mm	3 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C	LED - Blue	Blue

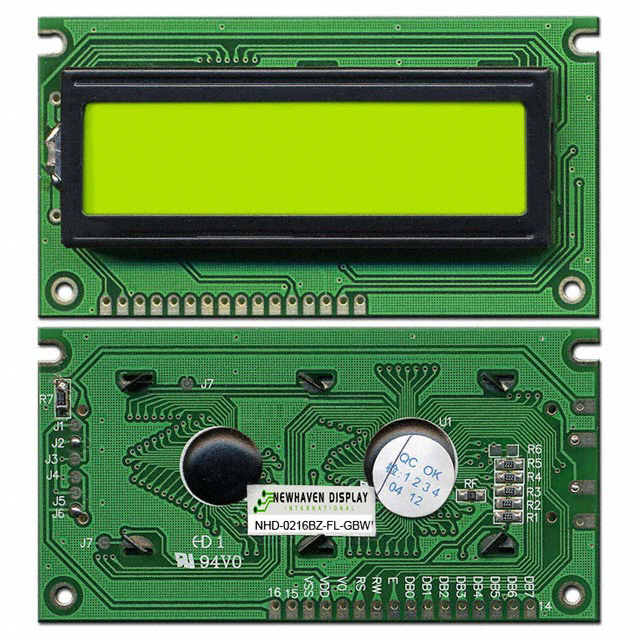

Newhaven Display Intl NHD-0216BZ-FL-GBW	0.56 mm	0.61 mm	5 Dots	8 Dots		16	2	Gray	32	5.23 mm	3 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	13.5 mm	84 mm	44 mm	64.5 mm	16.4 mm	Parallel	Transflective	-20 ░C	70 °C		Green

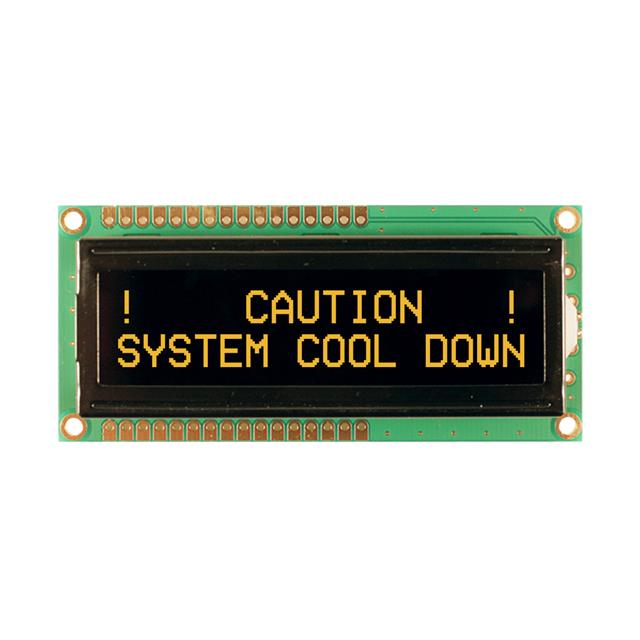

Newhaven Display Intl NHD-0216K1Z-NSA-FBW-L	0.56 mm	0.61 mm	5 Dots	8 Dots	SPLC780D ST7066U	16	2	Amber	32	5.23 mm	3 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	13.5 mm	80 mm	36 mm	64.5 mm	16.4 mm	Parallel	Transmissive	-20 ░C	70 °C	LED - Amber	Black

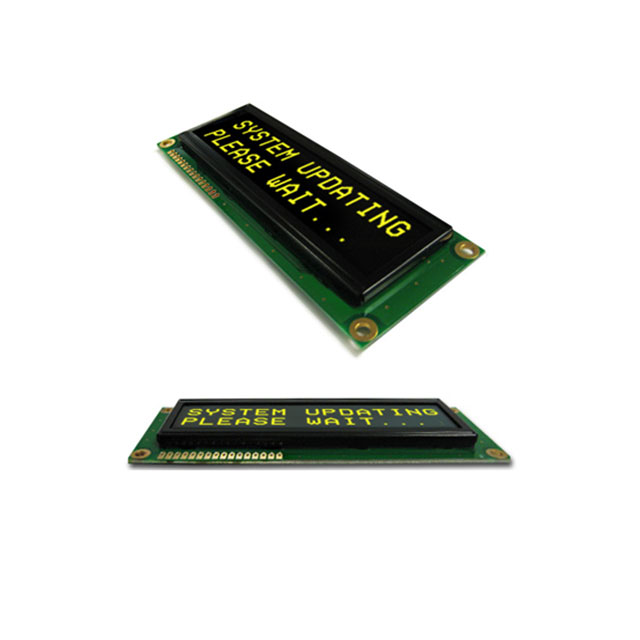

Newhaven Display Intl NHD-0216SZW-BY5	0.9 mm	1.06 mm	5 Dots	8 Dots		16	2	Yellow	32			5.3 V	3 V	OLED	10 mm	122 mm	44 mm	99 mm	24 mm	Parallel/Serial	Passive	-40 C	80 °C		Black	8.9 mm	4.74 mm
