342117 Series

Catalog

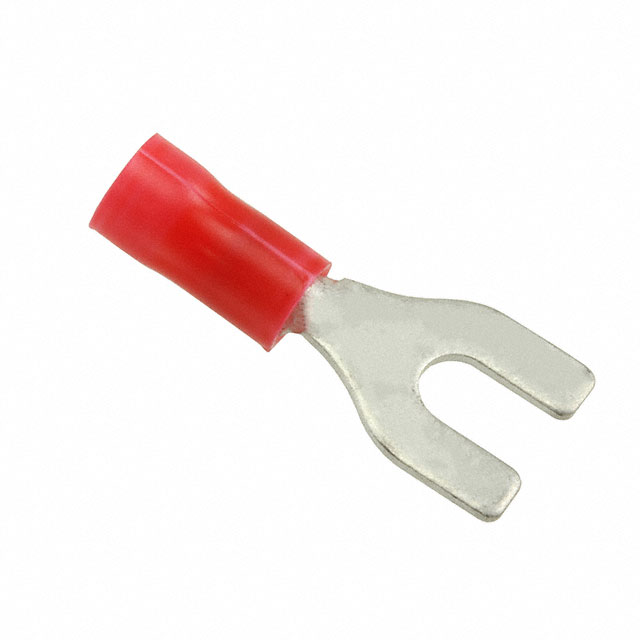

CONN SPADE TERM 16-22AWG RED

Part	Width - Outer Edges [x]	Width - Outer Edges [x]	Color	Contact Material	Features	Length - Termination	Length - Termination	Termination	Terminal Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
TE Connectivity Raychem Cable Protection 342117-1	0.375 in	9.53 mm	Red	Copper	Serrated Termination	11.1 mm	0.437 in	Crimp	Standard	3.5 mm	0.138 in	Insulated	22 AWG	16 AWG	Poly-Vinyl Chloride (PVC)	Free Hanging (In-Line)	0.106 "	2.69 mm	0.142 in	3.61 mm	23.5 mm	0.925 "	Tin	7.5 mm	0.295 "
