2317207 Series

Catalog

8P,2MM,REC,IDC,LRAMP,26-30,STRIP

Part	Color	Number of Positions	Contact Type	Contact Finish	Connector Type	Pitch [x]	Pitch [x]	Fastening Type	Mounting Type	Wire Type	Cable Termination	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]

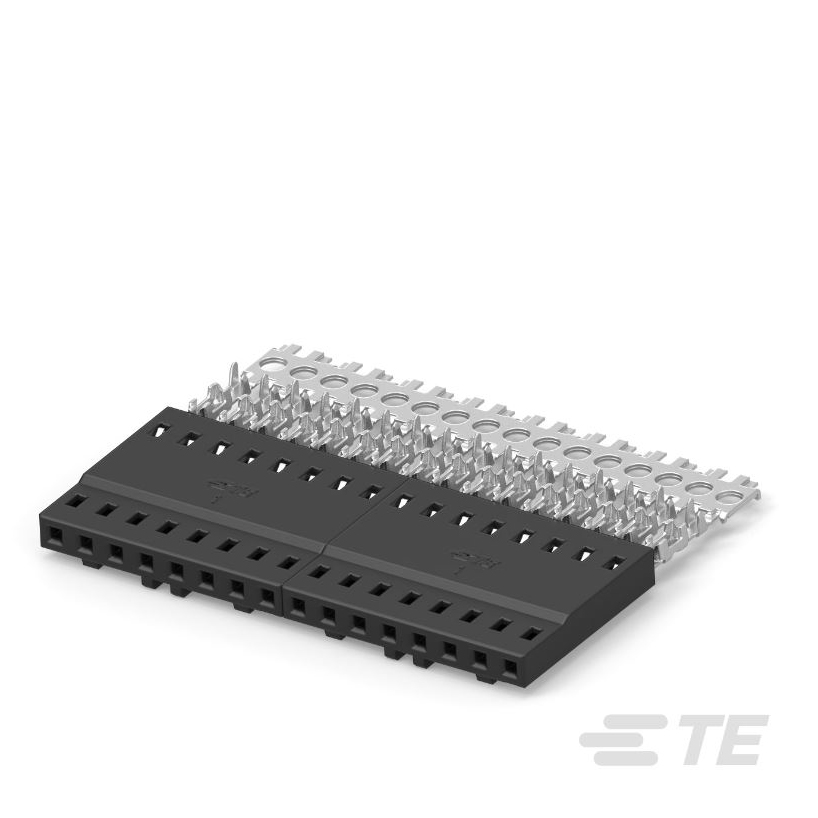

TE Connectivity Raychem Cable Protection 2317207-8	Black	8	Female Socket	Gold	Receptacle	0.079 in	2 mm	Push-Pull	Free Hanging (In-Line)	Discrete or Ribbon Cable	IDC	1	26 AWG	30 AWG

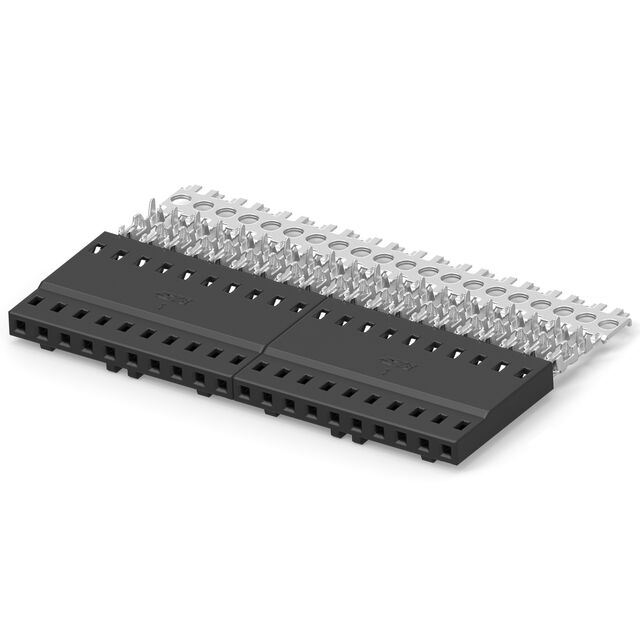

TE Connectivity Raychem Cable Protection 1-2317207-0	Black	10	Female Socket	Gold	Receptacle	0.079 in	2 mm	Push-Pull	Free Hanging (In-Line)	Discrete or Ribbon Cable	IDC	1	26 AWG	30 AWG

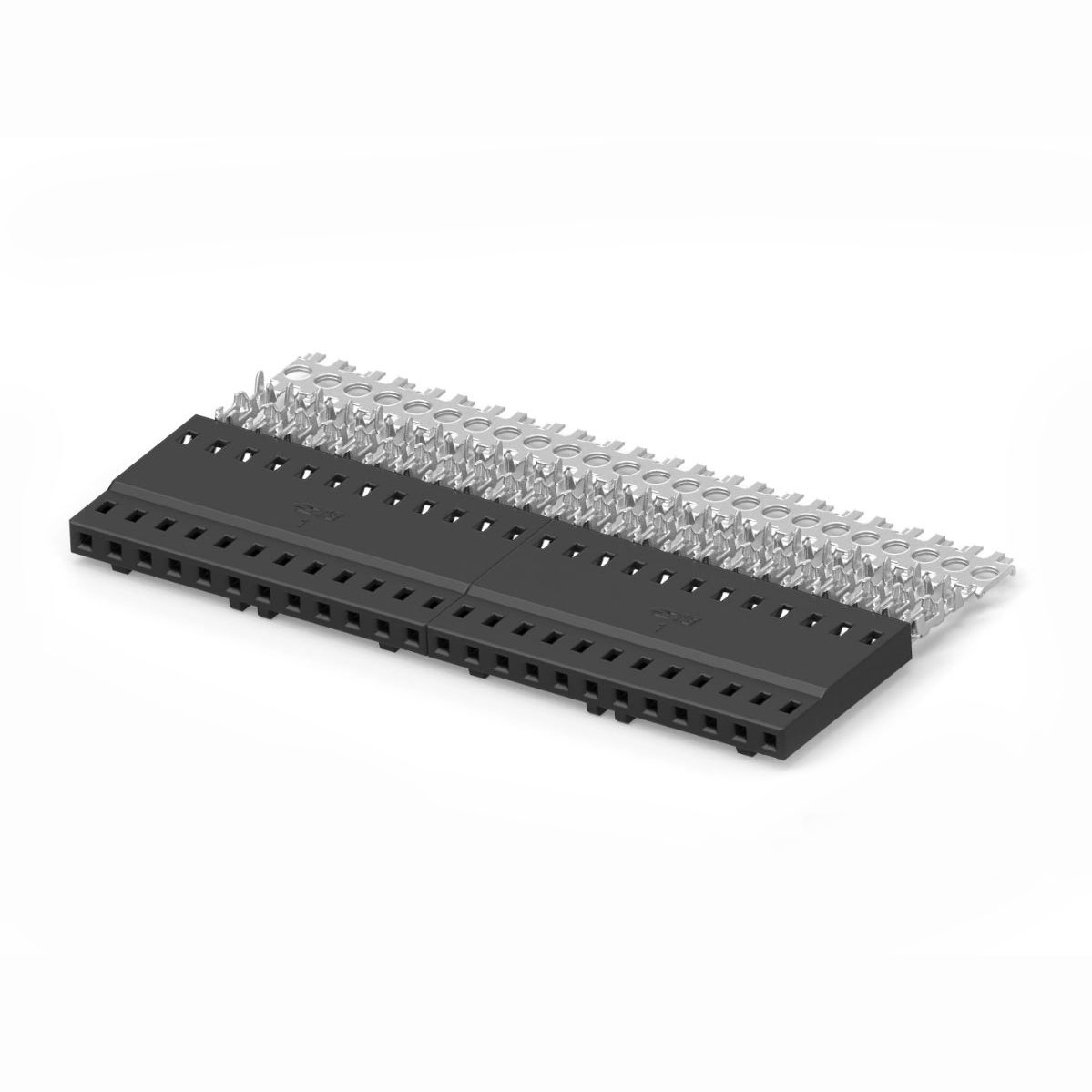

TE Connectivity Raychem Cable Protection 1-2317207-2	Black	12	Female Socket	Gold	Receptacle	0.079 in	2 mm	Push-Pull	Free Hanging (In-Line)	Discrete or Ribbon Cable	IDC	1	26 AWG	30 AWG

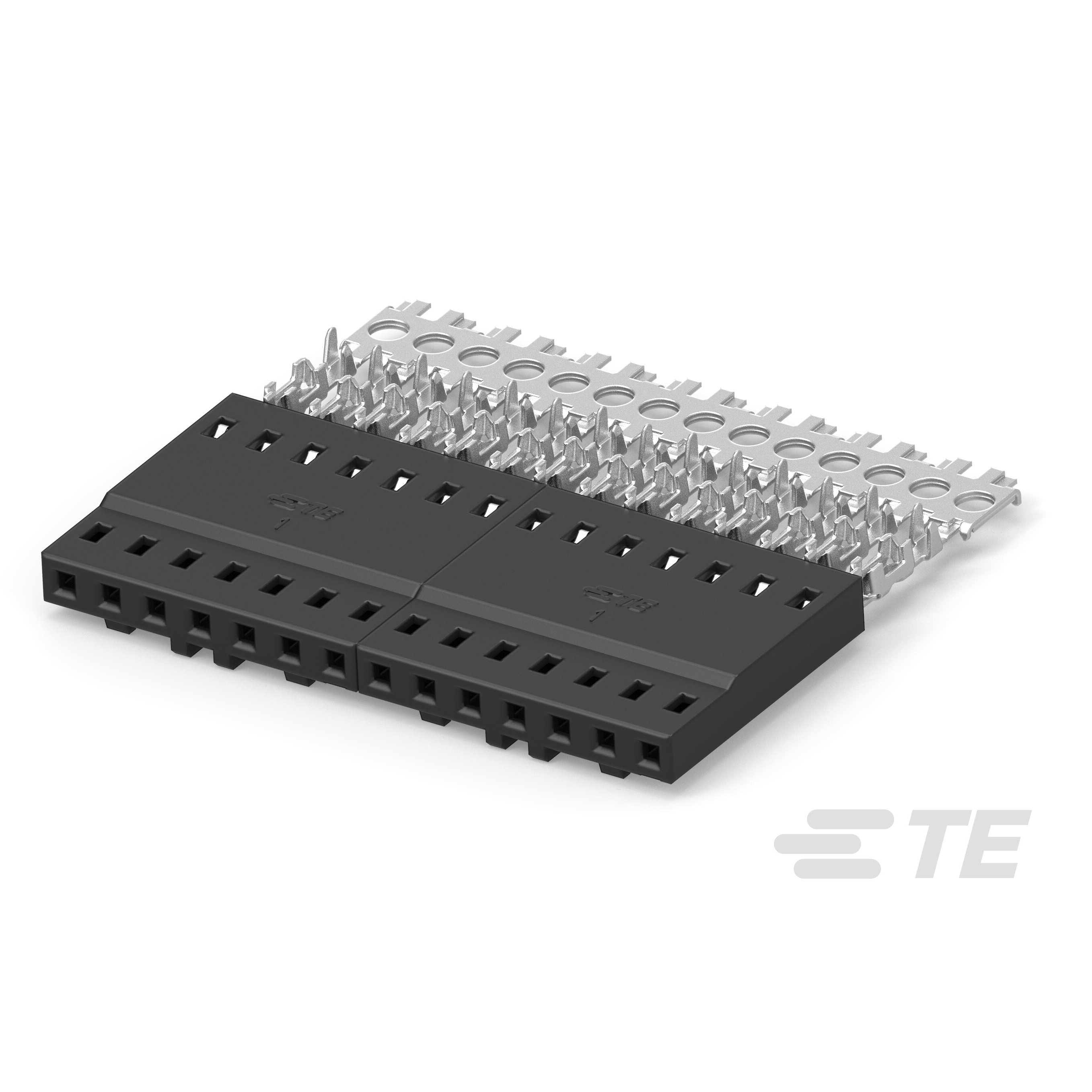

TE Connectivity Raychem Cable Protection 2317207-7	Black	7	Female Socket	Gold	Receptacle	0.079 in	2 mm	Push-Pull	Free Hanging (In-Line)	Discrete or Ribbon Cable	IDC	1	26 AWG	30 AWG
TE Connectivity Raychem Cable Protection 2317207-9	Black	9	Female Socket	Gold	Receptacle	0.079 in	2 mm	Push-Pull	Free Hanging (In-Line)	Discrete or Ribbon Cable	IDC	1	26 AWG	30 AWG
