EN3P16 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 16P SOLDER CUP
| Part | Material Flammability Rating | Fastening Type | Insert Material | Current Rating (Amps) | Contact Finish - Mating | Color | Orientation | Shielding | Contact Material | Mounting Feature | Ingress Protection | Applications | Primary Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Voltage Rating | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. | UL94 V-0 | Bayonet Lock | Elastomer | 3 A | Gold | Black | Keyed | Unshielded | Copper Alloy | Bulkhead - Front Side Nut | IP66/IP68 | General Purpose Instrumentation Marine Medical | Plastic | Receptacle Female Sockets | 65 °C | -40 °C | 16 | 250 VAC | ||
Switchcraft Inc. | UL94 V-0 | Bayonet Lock | Elastomer | 3 A | Gold | Black | Keyed | Unshielded | Copper Alloy | Bulkhead - Front Side Nut | IP66/IP68 | General Purpose Instrumentation Marine Medical | Plastic | Receptacle Female Sockets | 65 °C | -40 °C | 16 | 250 VAC | ||

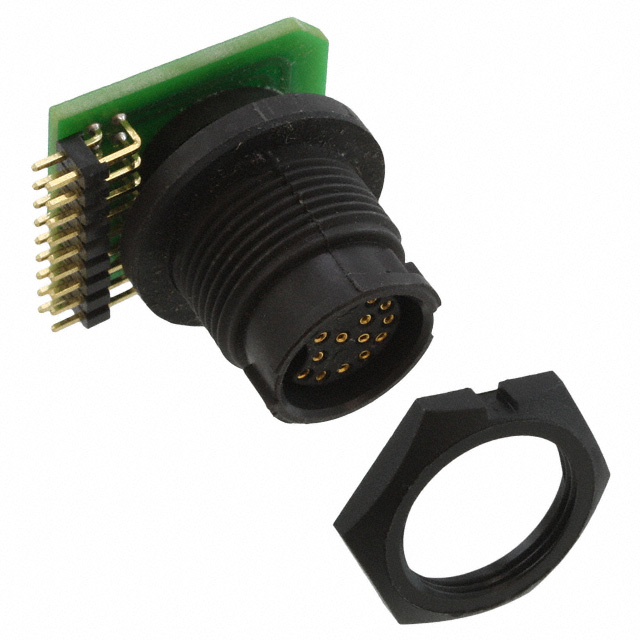

 Switchcraft Inc. | UL94 V-0 | Bayonet Lock | Elastomer | 2 A | Gold | Black | Keyed | Unshielded | Copper Alloy | Bulkhead - Front Side Nut | IP66/IP68 | General Purpose Instrumentation Marine Medical | Plastic | Receptacle Female Sockets | 65 °C | -40 °C | 16 | 250 VAC | Panel Mount Right Angle Through Hole | Circuit Board Solder |
Switchcraft Inc. | UL94 V-0 | Bayonet Lock | Elastomer | 3 A | Gold | Black | Keyed | Unshielded | Copper Alloy | Bulkhead - Front Side Nut | IP66/IP68 | General Purpose Instrumentation Marine Medical | Plastic | Male Pins Receptacle | 65 °C | -40 °C | 16 | 250 VAC |
