TPW1R104 Series

Catalog

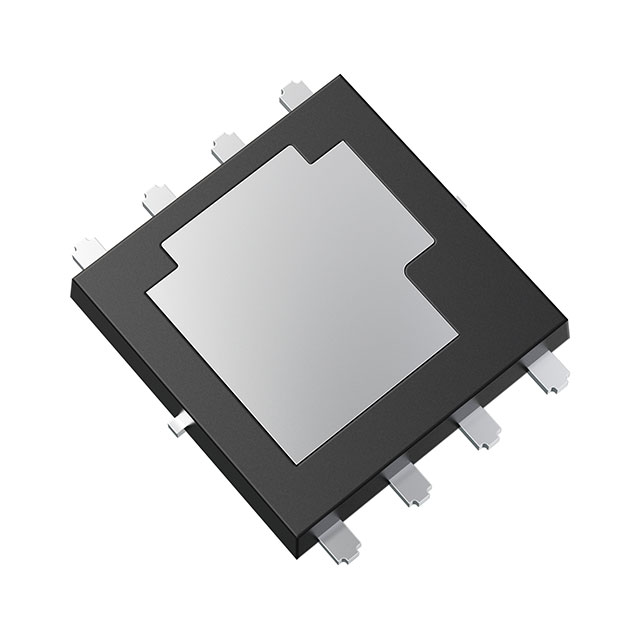

MOSFET N-CH 40V 120A 8DSOP

Part	Mounting Type	Package / Case	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Grade	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Operating Temperature	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Qualification	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Power Dissipation (Max)	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology
Toshiba Semiconductor and Storage TPW1R104PB,L1XHQ	Surface Mount	8-PowerVDFN	20 V	6 V 10 V	Automotive	1.14 mOhm	40 V	175 °C	N-Channel	4560 pF	120 A	AEC-Q101	3 V	960 mW	132 W	8-DSOP Advance	55 nC	MOSFET (Metal Oxide)
